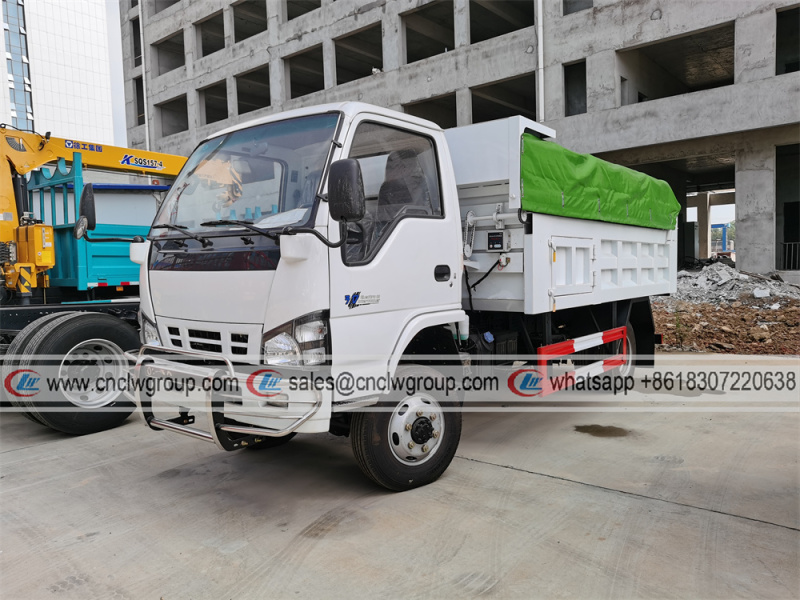

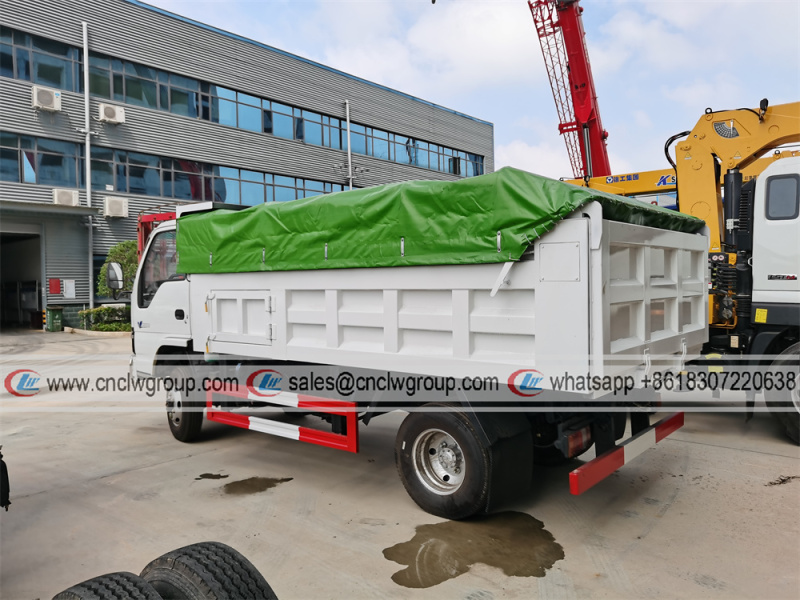

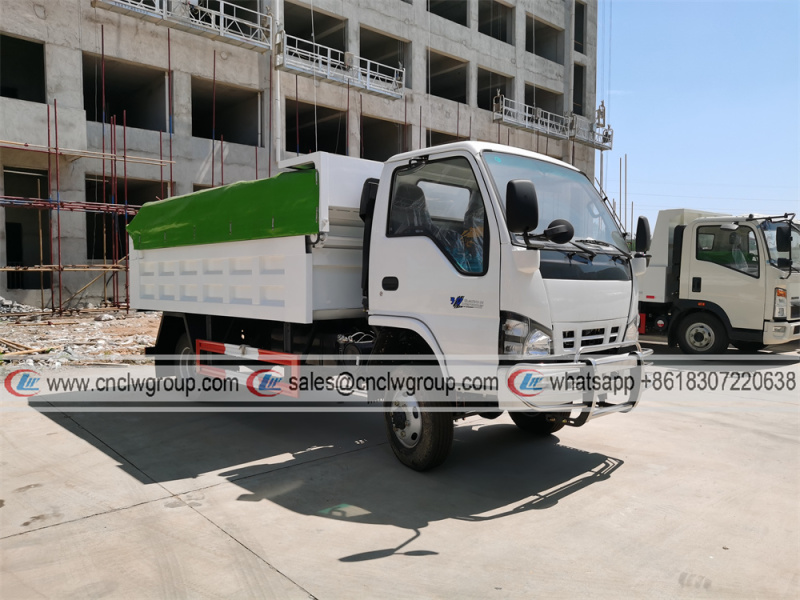

ISUZU NPS 4x4 4-Tons Dump Truck

ISUZU 4x4 AWD Dump Truck
Engine: ISUZU 130HP diesel engine
Tir: 6+1 pcs 7.00R16 radial tire
Load Capacity: 4 tons
Dump Box: 3800x1900x800mm
Rear dumping: middle double hydraulic cylinders
Top covering: Electric tarpaulin covering
Description
Description

【Chassis Parameters】

ISUZU 4x4 AWD chassis, single cabin, condition new, 3360mm wheelbase, ISUZU 130HP diesel engine, MSB-5 manual 5-speed transmission, 7.00R16 radial tires, with one spare tire, 2.5 ton front axle, 4.8 ton rear axle, air brake, power assist steering, exhaust pipe front mounted, etc.



【Upper Structure Parameters】

Dump box size 3800x1900x800mm;  dump box material 3mm side wall, 4mm floor plate; dump box middle double cylinder lifting jack, dumping angle 45°; control inside cabin, can lift box, down box, stop box.

With electric tarpaulin covering, automatic open and closed



Vehicle Basic Specifications
Model CLW5070ZZXQ5
Chassis brand ISUZU
Wheeldrive 4x4
New or Used New
Overall dimension(mm) 5920x2150x2680
Dump box dimension(mm) 3800x1900x800mm
Gross weight(kg) 7300
Curb weight(kg) 3200
Load Weight(kg) 4 tons
Wheelbase(mm) 3360
Engine power ISUZU 4KH1 130HP
Fuel type DieseI
Transmission Manual 5- speed
Brake Air brake
Axle load(front/rear) 2.5 tons / 4.8 tons
Tire 6+1 pcs, 7.00R16 radial tires
Max speed 90km/h
Vehicle Superstructure Parameters
Dump Box Dimension 3800x1900x800mm
Material High strengthen carbon steel, 3mm side, 4mm bottom
Unloading Method of Dump Box Double cylinders middle lifting
Maximum Dumping Angle ≤ 45°
Top covering With Electric Tarpaulin covering
Back Door Hinge structure , auto open when dumping
Side Opening Door One(1)



As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
