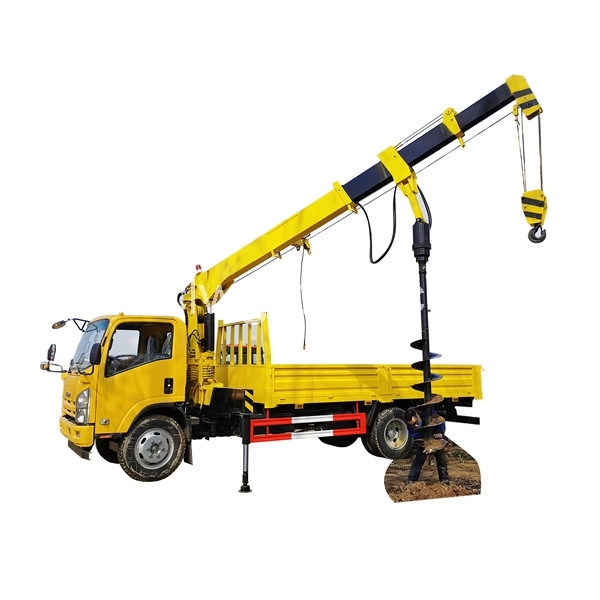

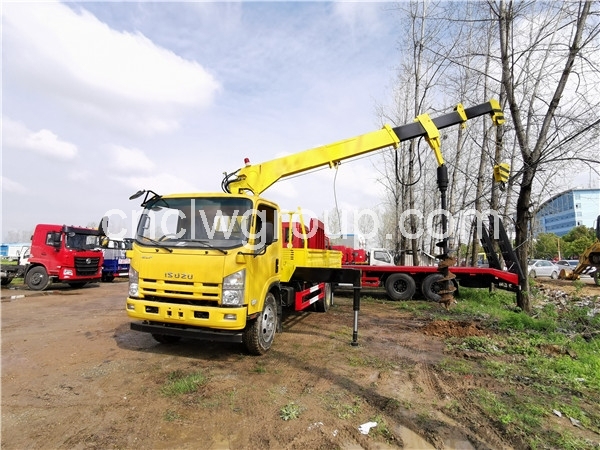

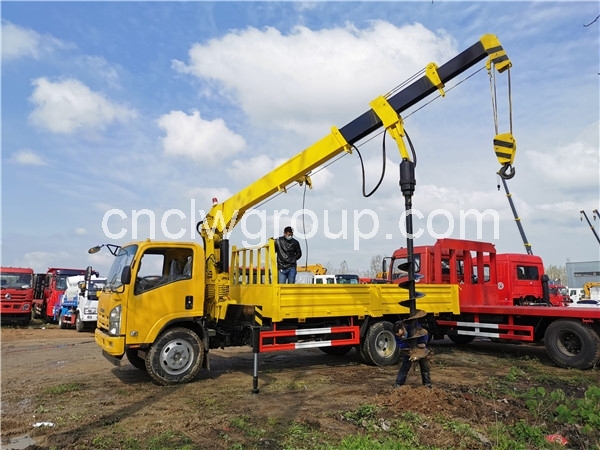

ISUZU 5 ton Crane Truck with Drilling Auger

ISUZU 4x2 190HP Euro5 Boom Truck
Crane: 5 tons
Auger drilling: (L x DN) 2500*400 mm
Tir: 6+1 pcs 8.25R20 radial tire
Cargo box: 5000x2150x450mm
Max lifting height: 13 meters

【Chassis Parameters】

ISUZU 700P heavy chassis, condition new, 3815mm wheelbase, ISUZU 190HP Euro5 dieseI engine, ISUZU MLD 6-speed transmission, 8.25R20 radial tires, with one spare tire, 4 Ton front axle, 7 Ton rear axle, air brake, power assist steering, air conditioning, etc.


【Upper Structure Parameters】

Crane: CLW SQ5SA3 5 Tons crane, 4-section straight extension arm, maximum lifting height 13 meters, maximum working radius 11 meters, 360° slewing, double side operation, with remote throttle, lighting, leveling bubbles, etc.

Drilling Auger: for drilling electric pole hole,  depth 2500mm,  diameter 400mm.

Cargo box: 5000x2150x450mm, carbon steel, 3mm side, 4mm bottom.


【Vehicle Basic Parameters】

Model CLW5110JSQQ5
Chassis brand ISUZU
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 8250x2300x3450mm
Cargo box 5000x2150x450mm
Gross weight 11000kg
Curb weight 5800kg
Load 5-7 tons
Wheelbase 3815mm
Engine power ISUZU 190HP Euro5
Fuel type DieseI
Transmission ISUZU MLD-6, 6-speed
Brake air brake
Axle load 4 tons / 7 tons
Tire 6+1 pcs, 8.25R20 radial tires
Max speed 90km/h


【Crane Parameters】

Model SQ5SA3
Brand CLW
New or Used New
Max lifting weight 5 tons
Max torque 125 kN.m
Max lifting height 13m
Max working radius 11m
Slewing angle 360 degree continuous slewing
Outrigger span 1800mm ~ 2800mm
Outrigger Front hydraulic extension outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc


【Pole Hole Drilling Auger Parameters】

Model CL-ZG2500
Brand CLW
Drilling depth 2500 mm
Hole diameter DN400mm
Speed manual, 2 speed


【Customer's Work Site】

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
