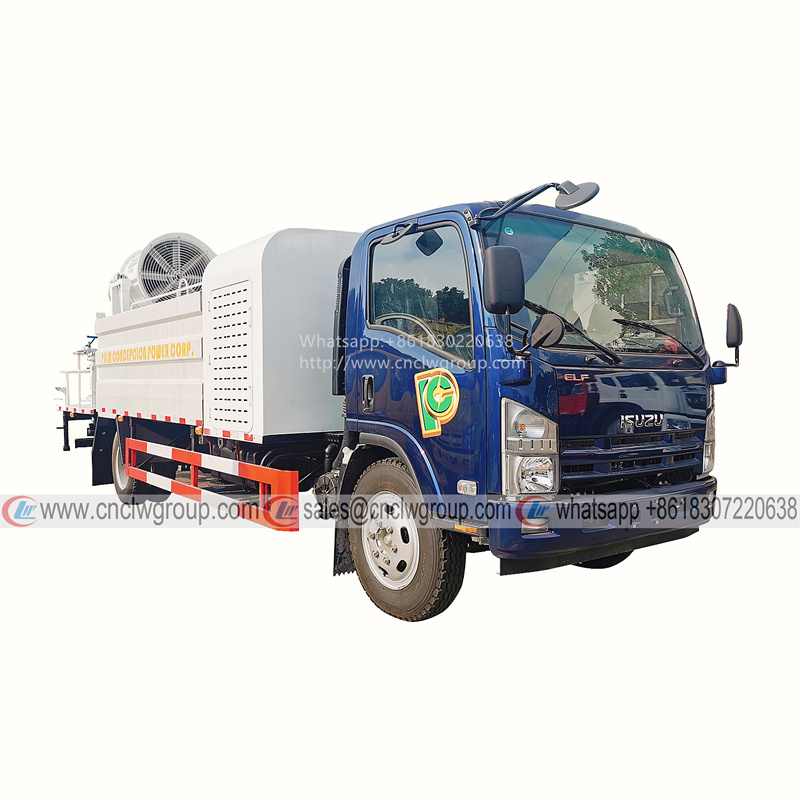

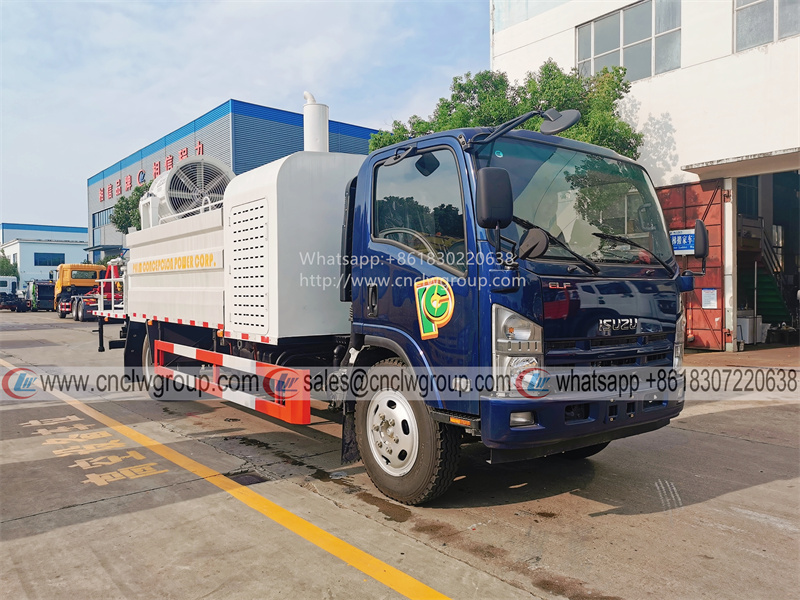

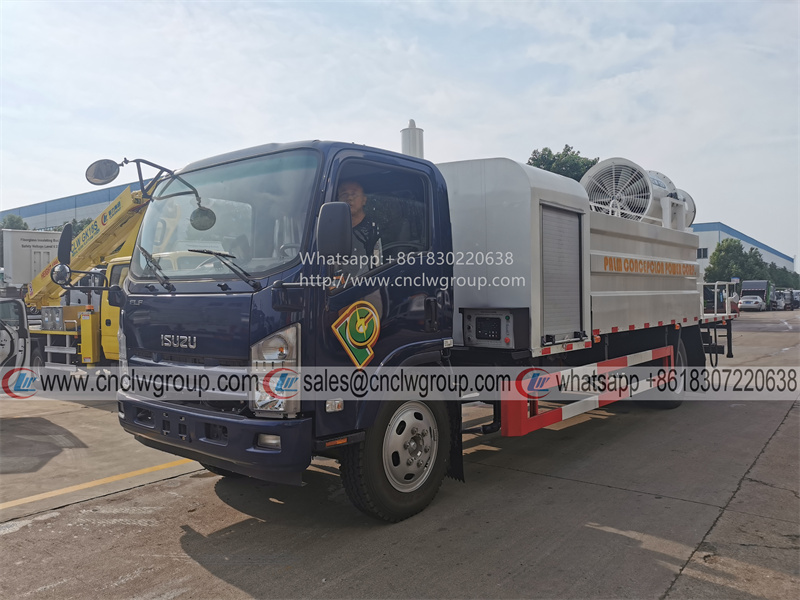

ISUZU 6000 liter 100m dust control water tanker with mist fog cannon sprayer truck

Dust suppression truck is a special kind of water truck that suppresses dust pollution by spraying dust suppression curing agent and other spray liquids. Mainly serve railways, roads and other places with high dust incidence. In terms of structure, the dust suppression vehicle is mainly composed of a swing arm spray device, a liquid storage tank, a self-carrying vehicle and a control system.

In winter or cold areas, the tank body, spray nozzle and pump body of the dust suppression vehicle need to be equipped with a thermal insulation heating system to operate normally.

Dust suppression trucks are used for the prevention and control of coal dust pollution in railway coal transportation, and are also widely used in other bulk material transportation processes to prevent dust pollution, as well as slag yard, coal storage yard, construction site, vehicle coal transportation dust, sand fixation, steel building materials, cement, enterprises Various open-air stockyard ecological slope protection and so on.

When the train transports coal, the dust suppression truck can solidify the coal on each train to form a protective film and reduce pollution.

The dust suppression truck also has the function of a sprinkler, which can rotate 360 degrees during the spraying operation.

ISUZU 100-meter fog cannon sprayer truck, dust suppression vehicle and disinfection vehicle are refitted with the second-class special chassis of domestic well-known brands. They have the characteristics of good spraying effect, safe and reliable operation, long spraying range, low water consumption and low operating noise. The main structure of the multi-functional dust suppression vehicle is to install a large-volume water tank, a high-efficiency remote fog cannon unit system, a generator set system, a low-pressure flushing sprinkler system, and a green sprinkler anti-aircraft gun on the walking chassis mechanism (optional electronic remote control water cannon is installed in the vehicle. Front end), hydraulic system, electronic control system, special operation device, etc., its performance is at the leading level in China.

【Chassis Parameters】

Cab chassis of ISUZU 6000 liter dust control water tanker with mist fog cannon sprayer truck: ISUZU 4x2, condition new, 3 seats, 5200mm wheelbase, Qingling ISUZU 190HP Euro5 dieseI engine, manual 6 speed transmission, 6+1 pcs 8.25R20 tires, with one spare tire, 4 ton front axle, 7 ton double reduction rear axle, air brake, power assist steering, with air conditioning, etc.

【Upper Structure Parameters】

Superstructure of ISUZU 6000 liter dust control water tanker with mist fog cannon sprayer truck

- Chengli produced water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;

- 6,000 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole, rear with a platform and ladder;

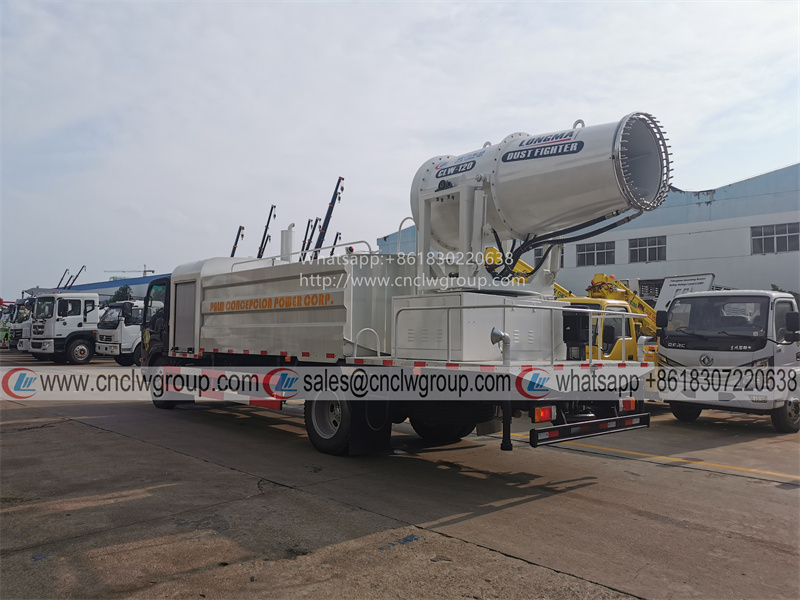

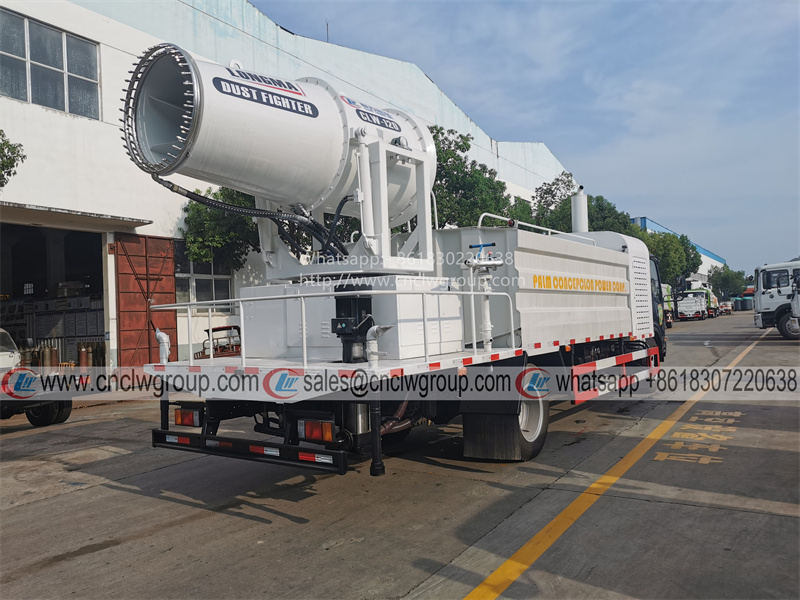

- Fog cannon sprayer: CLW-120, with 120kW diesel generator set, spray range 100 meters, fog spray 360° slewing, -10° ~ +45° horizontal angle.

- Water pump consumption 10m3/h;

- with front/rear/side water spraying nozzles, water spraying range 12-16 meters; with a water cannon, spraying range 28 meters;

Specifications of Dongfeng 20000 liter Dust Suppression Water Truck with Fog Cannon Mist Sprayer Truck:

2. Applicable environment:

The remote sprayer can spray dust in squares and docks to adjust air humidity; spray on urban streets for disinfection and sterilization; and can also reduce dust and cool down in mining areas, demolition sites, coal yards, steel mills, etc. The product has played a significant role in coal, power generation, smelting, coalification, mining, demolition construction, highways and other industries, especially suitable for large-scale, open-air mining or storage bases for dust reduction and dust suppression.

Features of Dust Removal fog sprayer cannon machine:

1. Strong wind, long range, wide coverage, good atomization effect, uniform spraying, low power consumption, high work efficiency, movable, simple and convenient operation.

2. Dust suppression can be carried out on sandstorms and demolition sites at any time, which not only avoids useless work outside the operation scope, but also avoids the large-scale diffusion of dust.

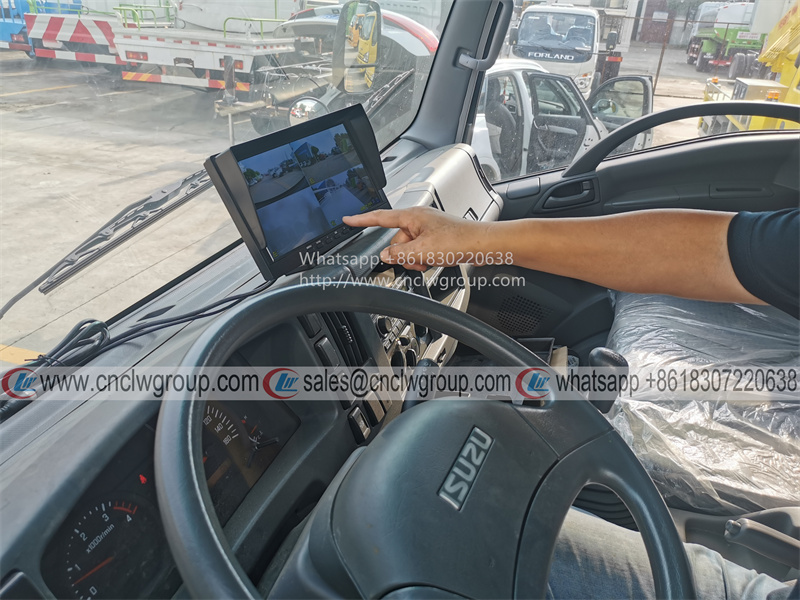

3. It is safe and convenient to operate by remote control up and down, left and right (can be operated in the cab). Various forms of spray such as constant, low volume and ultra-low volume can be realized, saving the cost of use.

4. The three-phase 380V mains power can be used, and it can be fixedly installed on the platform of lifting or concrete pouring, and can also be installed on the transportation vehicle with the power supply of the diesel generator set.​​

5. The fog cannon is suitable for static pollution sources and dynamic pollution sources. It can remotely adjust the horizontal rotation spray angle. It is safe, flexible and convenient to use, saving human resources.

6. Equipped with high-quality water pumps, nozzles, motors, stable performance, safe and reliable, can be used in harsh environments for a long time, water resistance, corrosion resistance and rust resistance.

7. When matched with vehicles, it has strong mobility and no need to invest a lot of infrastructure costs such as civil construction. No matter the location, working environment, or changes in the use of equipment, the material yard does not require secondary investment.

8. According to customer requirements, we can configure trailers, water tanks, diesel generators, various light trucks, or consult us for detailed solutions.

Manufacture process of Dongfeng 20000 liter Dust Suppression Water Truck with Fog Cannon Mist Sprayer Truck

Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System

In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.

◆Training Service

Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.

◆Warranty Commitment

Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.

◆24 Hours Service

The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.

◆Rescue Service

When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.

◆Customer Return Visit

Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.

Order Process

     ①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.

     ②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).

     ③: Arrange production: Our company arranges workshop production according to the contract requirements.

     ④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!

Answers to the Questions that Customers Care About before Purchasing?

(1) Free maintenance plan and period?

1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.

(2) What is the price method of free post-parts supply?

1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.

(3) After-sales service method?

The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.

(4) Technical training program?

The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.

(5) How to transport and load the vehicle?

According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.

(6) What is the time to pick up the car at the factory?

Self-pick-up time: Monday to Sunday, 08:00-19:00 (some self-pick-up points work hours from 9:00-18:00, in case of national holidays, the press release time shall prevail. focus on)

(7) Can't we go to China abroad? Want to see the car to see the factory how to do?

We can let users see the general situation of offices, factories, production scenes, and factories through video calls and shooting videos, and help foreign customers understand us. For users who order vehicles, they can watch the vehicle appearance, function demonstration videos, and other details through video inspection, so that users can grasp their order production progress and situation in real time. We will create high-quality and personalized special vehicles for each user according to the actual needs of users. You are welcome to visit the production strength and product technology on the spot, and we will provide you with the best service!

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
