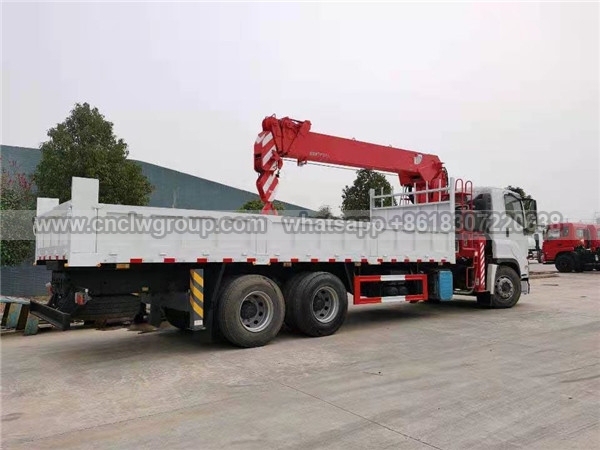

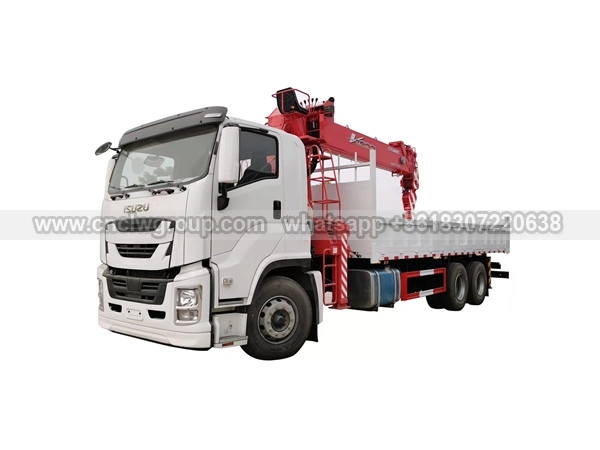

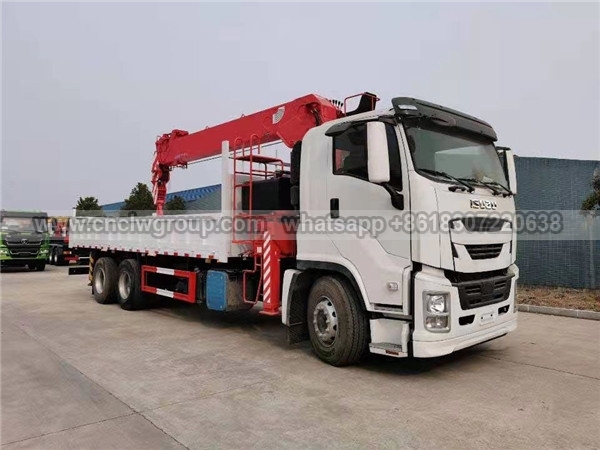

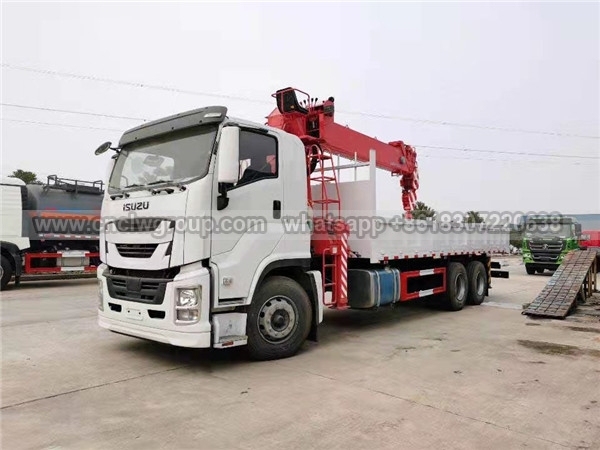

ISUZU 6x4 14 Tons Boom Crane Truck

ISUZU VC61 6x4 420HP boom truck crane
Gross weight: 34000kg
Load: 20-25 tons
Transmission: 12-speed manual gearbox
Tir: 12+1 pcs 315/80R22.5 tire
Max lift weight: 14 tons
Crane type: straight telescopic arm, 4-section
Max lifting height: 17.4 mete

【Contact Us

E-mail: [email protected]

Whatsapp/Mobile: 008618307220638

Chengli Special Automobile Co.,Ltd


Add: South Suburb Chengli Automobile Industry Park, Suizhou City, Hubei Province, China.


【Chassis Parameters】

ISUZU VC61 GIGA 6x4 chassis, condition new, 1850+4575+1370mm wheelbase, ISUZU 420HP dieseI engine, 12-speed transmission, 315/80R22.5 tires, with one spare tire, 2x 7 ton front axle, 26 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

  • Cargo box: 8200x2350x550mm
  • Crane brand: CLW SQS350 14 tons crane
  • Crane type: straight telescopic arm, 4-section extension boom
  • Max lifting height: 17.4 meters
  • Max working radiu: 15.4meters


【Vehicle Basic Parameters】

Model CLW5340JSQQ5
Chassis brand ISUZU
New or Used New
Overall dimension 12000x2500x3980mm
Cargo box 8200x2350x550mm
Gross weight 34000kg
Curb weight 14500kg
Load 20-25  tons
Wheelbase 5820+1370 (mm)
Engine power ISUZU 6WG1-TCG52 420HP Euro 5
Fuel type DieseI
Transmission Manual, 12-speed
Brake Full air brake, with ABS
Axle load ISUZU brand, 2x 7 Tons front axle, 26 Tons double mounted rear axle with inter-differential
Tire 12+1 pcs, 315/80R22.5
Max speed 90km/h


【Crane Parameters】

Model SQS350
Brand clw
New or Used New
Max lifting weight 14 tons
Max torque 350 kN.m
Max lifting height 17.5 meters
Max working radius 15.4 meters
Recommand oil pressure 26MPa
Oil flow 50 L/min
Oil tank volume 200L
Slewing angle 360 degree
Front outrigger

Front hydraulic extension outrigger

span: 2238mm ~ 8198mm

Front outrigger

Rear hydraulic extension outrigger

span: 2200mm ~ 3500mm

Control Double side linkage operation + operation seat
Special funcitons Remote throttle, radiator, auto-drawback hook, 360° full slewing,  leveling bubble, etc


【CLW SQS350 14 Tons Crane Lifting Capacity Graph】


*Subscribe and visit for more details about ISUZU 14 tons boom truck and other boom truck mounted crane. If you have any question, send us a message. We will reply you within 24 hours.
