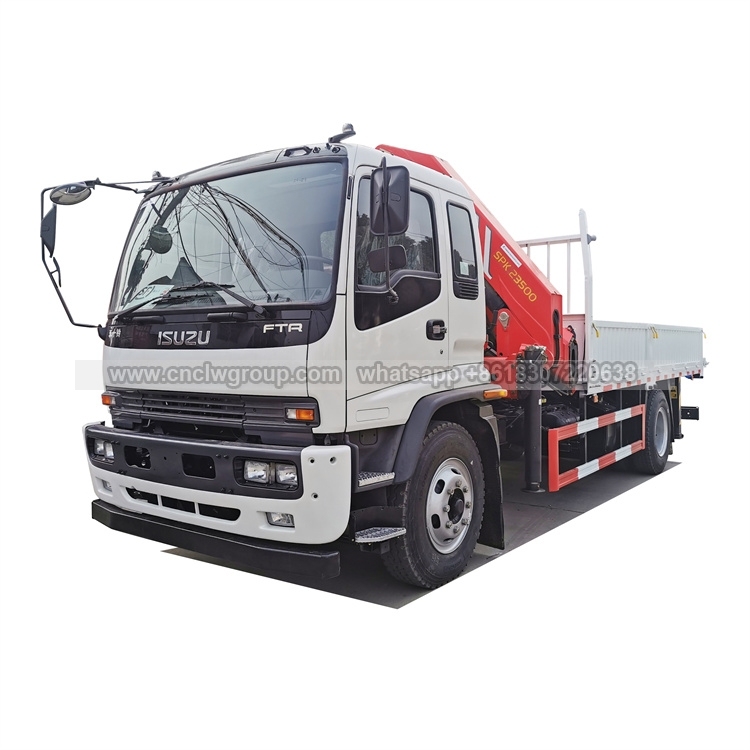

ISUZU 4x2 Truck Mounted Sany Knuckle Crane

ISUZU FTR 4x2 205HP boom truck with crane
Load: 10-15 tons
Transmission: 6-speed manual gearbox
Tir: 6+1 pcs 10.00R20 radial tire
Crane: Sany 11 tons knuckle crane
Max lifting height: 12.8 meter
Max working radius: 11 meter
Description
Description

【Contact Us

E-mail: [email protected]

Whatsapp/Mobile: 008618307220638

Chengli Special Automobile Co.,Ltd

Http://www.cnclwgroup.com

Add: South Suburb Chengli Automobile Industry Park, Suizhou City, Hubei Province, China.



【Chassis Parameters】

ISUZU FTR 4x2 cab chassis, condition new, 5000mm wheelbase, ISUZU 205HP dieseI engine, ISUZU 6-speed transmission, 10.00R20 radial tires, with one spare tire, 6.3 ton front axle, 13 ton rear axle, air brake, power assist steering, with air conditoning, power window, central lock, etc.

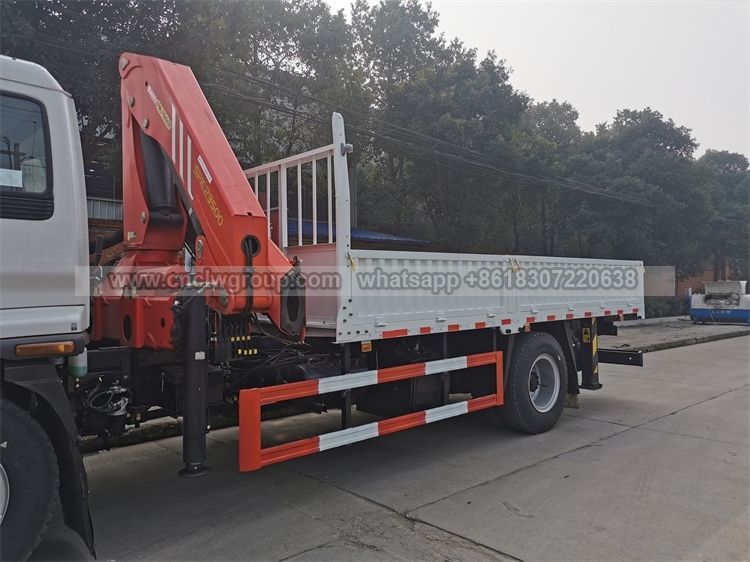

【Upper Structure Parameters】

  • Cargo box: 5400x2350x500mm

Crane brand: SANY SPK23500 11 tons

  • Crane type: knuckle arm crane, 4-section extension boom
  • Max lifting height: 12.8 meters
  • Max working radiu: 11 meters



【Vehicle Basic Parameters】

Model CLW5182JSQQ5
Chassis brand ISUZU
New or Used New
Overall dimension 9200x2500x3650mm
Cargo box 5400x2350x500mm
Gross weight 18000kg
Curb weight 10500kg
Load 10-15 tons
Wheelbase 5000 (mm)
Engine power ISUZU 4HK1-TC50 205HP Euro 5
Fuel type DieseI
Transmission Manual, ISUZ 6-speed
Brake Full air brake, with ABS
Axle load ISUZU brand, 6.3 Tons front axle, 13 Tons heavy rea axle
Tire 6+1 pcs, 10.00R20 raidal tire
Max speed 90km/h



【Crane Parameters】

Model SPK23500
Brand SANY
New or Used New
Max lifting weight 11 tons
Max torque 235 kN.m
Max lifting height 12.8 meters
Max working radius 11 meters
Slewing angle 360 degree
Front outrigger

Front hydraulic extension outrigger

Control Double side linkage operation
Special funcitons Remote throttle, radiator, auto-drawback hook, 360° full slewing,  leveling bubble, etc



*Subscribe and visit http://www.cnclwgroup.com for more details about ISUZU with SANY 11 tons boom truck and other boom truck mounted crane. If you have any question, send us a message. We will reply you within 24 hours.
