Water Sprinkler Truck, also called water truck, sprinkler truck, water bowser, water tank truck, water delivery truck, is a kind of sanitation vehicle which has a tank body, manhole cover, water pump, front/rear/side sprinkler nozzles, water cannon and discharge valves, work platform, etc. Water truck can be used for watering tree, grass, cleaning street, dust control, water delivery, emergency fire fighting, etc.
【Chassis Parameters】
Cab chassis of Isuzu npr small water truck water tanker 6000 ltr lorry, Isuzu npr flat roof cabin, condition new, 3 seats, 3360mm wheelbase, Isuzu 130HP Euro5 dieseI engine, manual 5-speed transmission, 6+1 pcs 7.00R16 radial tires, with one spare tire, 2.5 ton front axle, 4.8 ton rear axle, hydraulic brake, power assist steering, with air conditioning, etc.
【Upper Structure Parameters】
Superstructure of Isuzu 700P 8000 liter construction water spray tanker truck
- Chengli produced water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;
- 8,000 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole, rear with a platform and ladder;
- with 40m3/h flow water pump;
- with front/rear/side water spraying nozzles, water spraying range 12-16 meters; with a water cannon, spraying range 28 meters;
Specifications of Isuzu 700P 8000 liter construction water spray tanker truck:
| Vehicle Parameters | Model | CLW5110GSSQ5 |
| New or Used | New | |
| Overall dimension | 6995x2300x2650mm | |
| Gross weight | 11000kg | |
| Curb weight | 5600kg | |
| Chassis Parameters | Chassis brand | ISUZU |
| Wheelbase | 3815mm | |
| Engine power | ISUZU 190HP | |
| Cab | ELF Wide single cabin, 3 seats, with A/C | |
| Transmission | Manual, 6-speed forward and 1 reversing | |
| Front Axle | 4 Ton | |
| Rear Axle | 7 Ton | |
| Brake | Hydraulic brake | |
| Tire | 6+1 pcs, 235/75R17.5 | |
| Max speed | 90km/h | |
| Engine | Brand |
ISUZU 4HK1-TC51 |
| Power | 141kW/190HP | |
| Displacement | 5193cc | |
| Emission standard | Euro5 | |
| Superstructure | Tank volume | 8,000 liter |
| Tank material | Carbon steel with anti-corrosion treatment | |
| Front spraying | 2 pcs nozzles, manual or auto controlled | |
| Rear spraying | 2 pcs nozzles, manual or auto controlled | |
| Side spraying | 2 pcs nozzles, manual or auto controlled |
|
| Water cannon | 1 pcs, 360° slewing, shot 28-35 meters | |
| Shot of spraying nozzle | 12 - 16 meters | |
| Valve | 2 pcs, discharge valve + fire hydrant joint |

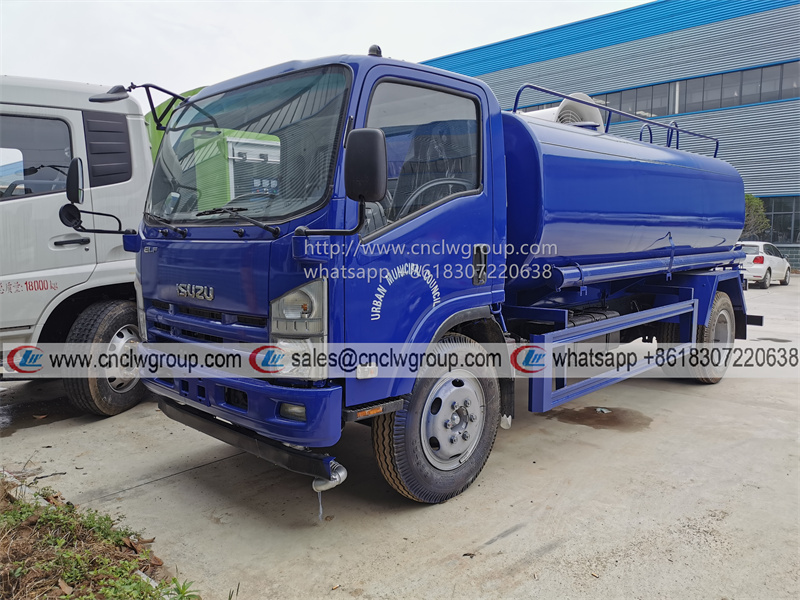

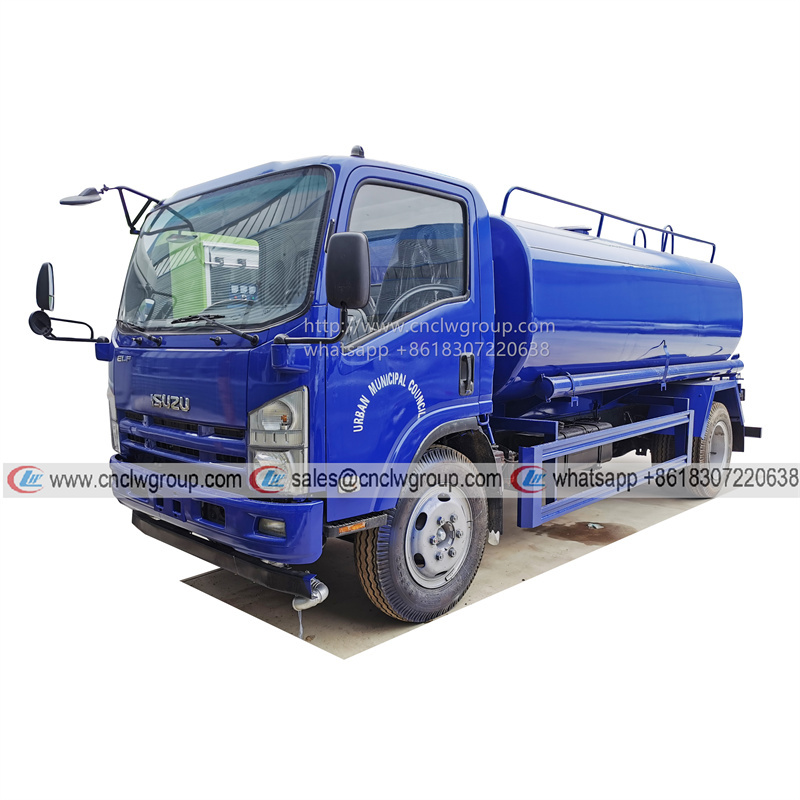

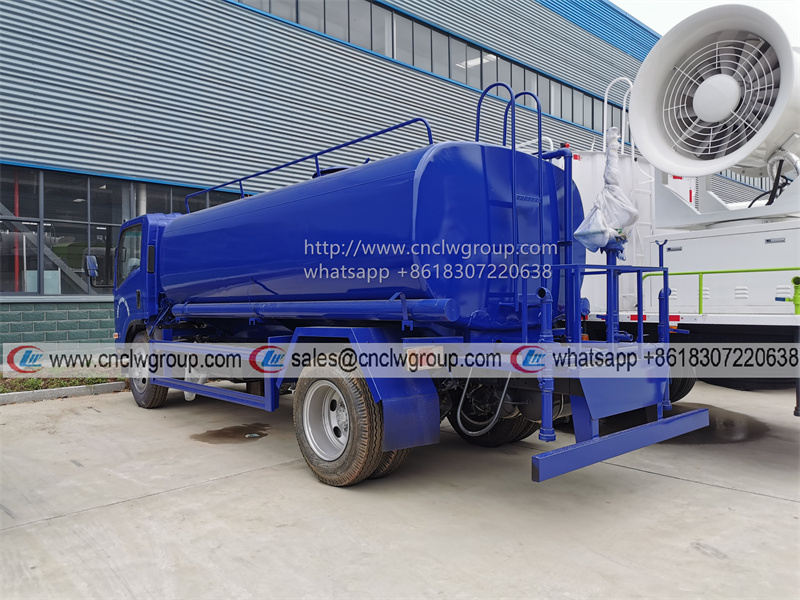

[Multi-directional Images of Isuzu 700P 8000 liter construction Water Spray Tanker Truck]
Isuzu 700P 8000 liter construction water spray tanker truck
Isuzu 700P 8000 liter construction water spray tanker truck
Isuzu 700P 8000 liter construction water spray tanker truck
Water filling method of Isuzu 700P 8000 liter construction water spray tanker truck:
Manufacture process of Isuzu 700P 8000 liter construction water spray tanker truck
Packing list of Isuzu 700P 8000 liter construction water spray tanker truck
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
