ISUZU 700P 8cbm Dump Truck

- ISUZU 6 TON Dump Truck
- ISUZU 190HP Euro5 engine
- 6+1 pcs 8.25R20 radial tires
- Dump Box: 4800x2000x800mm
- Unloading method of dump box: middle double cylinder lifting jack
- Air conditioning, MP3+USB, ABS

【Chassis Parameters】

ISUZU 700P cab chassis, condition new, 3 seats, 3815mm wheelbase, ISUZU 190HP Euro 5 dieseI engine, ISUZU 6-speed transmission, 8.2520 radial tires, with one spare tire, ISUZU 4 ton front axle, ISUZU 7 ton rear axle, hydraulic brake, power assist steering, with air conditioning, etc.


【Upper Structure Parameters】

Dump box size 4800x2000x800mm, total 8 cubic meter box volume;  dump box material 3mm side wall, 5mm floor plate; dump box middle double cylinder lifting jack, dumping angle 45°; control inside cabin, can lift box, down box, stop box.


Model CLW5160JGKQ5
Chassis brand ISUZU
New or Used New
Overall dimension(mm) 6850x2280x2850
Dump box dimension(mm) 4800x2100x800
Material of dump box carbon steel, 3mm side, 5mm floor
Unloading method of dump box
middle double cylinder lifting jack
Gross weight(kg) 10000
Curb weight(kg) 4500
Load Weight(kg) 6 tons
Wheelbase(mm) 3815
Engine power ISUZU 190HP Euro5
Fuel type DieseI
Transmission ISUZU 6 - speed
Brake Hydraulic brake
Axle load(front/rear) ISUZU 4 Tons/7 Tons
Tire 6+1 pcs, 8.25R20 radial tires
Max speed 90km/h

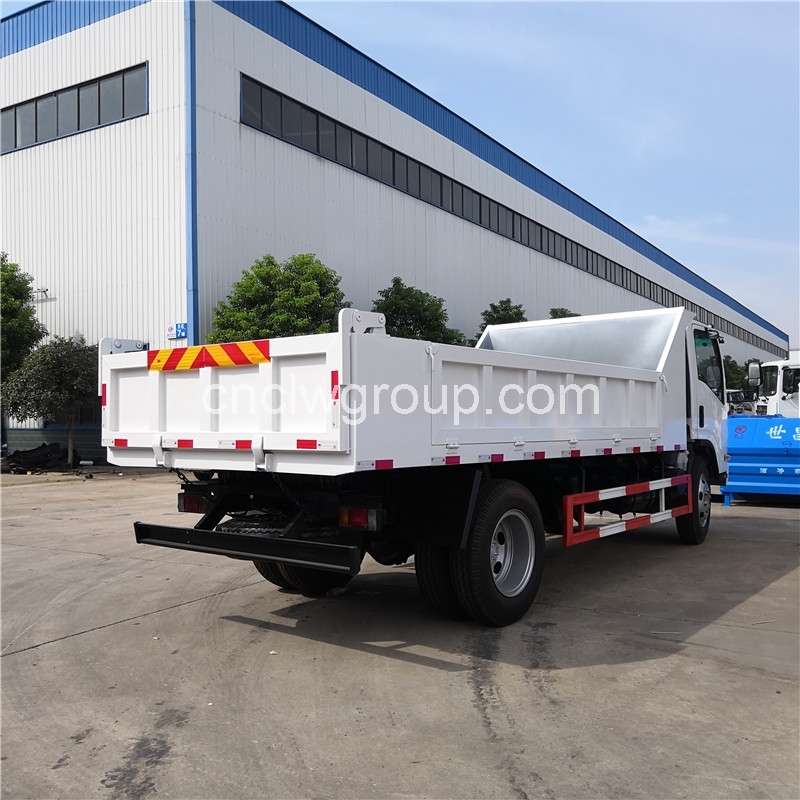

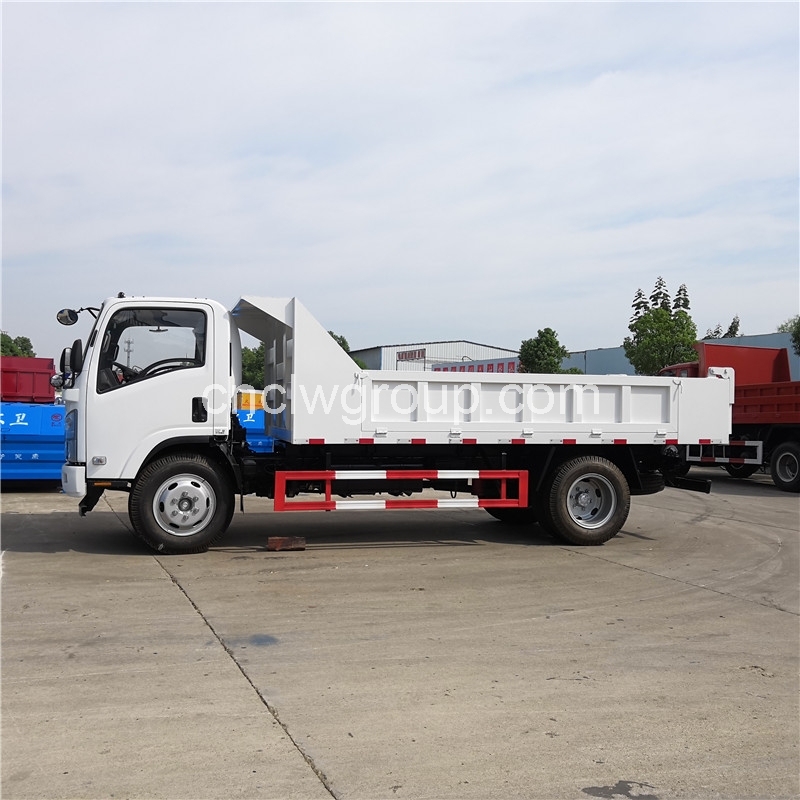

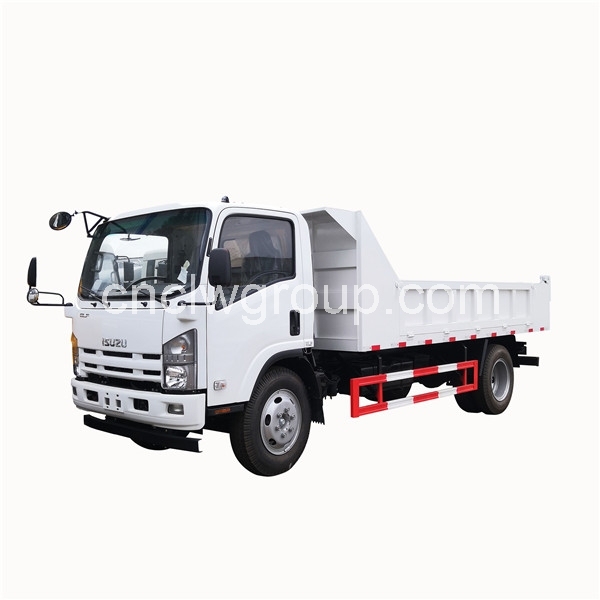

[Multi-directional Images]


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
