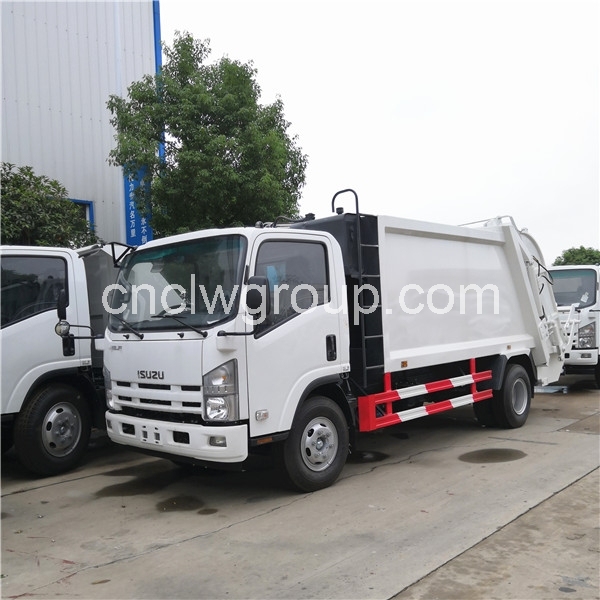

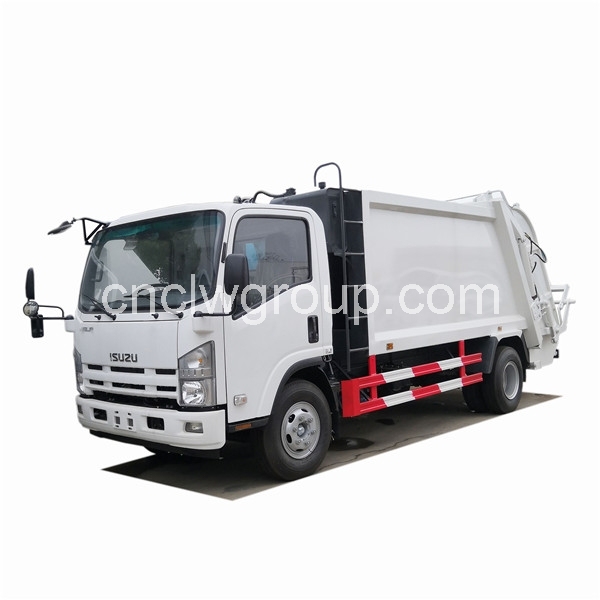

ISUZU 8cbm Garbage Compactor Truck

ISUZU 4x2/4x4 190HP Euro5 truck
MLD 6-speed transmission
235/75R17.5 tire
8m3 volume, 4mm side wall, 4mm bottom plate
Rear waste bin flip device, intelligent control system+manual control+inside cab controlled
Description
Description

【Chassis Parameters】

Famous brand Japan ISUZU chassis, condition new, 3815mm wheelbase, Qingling ISUZU 190HP Euro5 dieseI engine, MLD 6-speed transmission, 235/75R17.5 tires, with one spare tire, 4 ton front axle, 7 ton rear axle, power assist steering, with air conditioning, etc.



【Upper Structure Parameters】

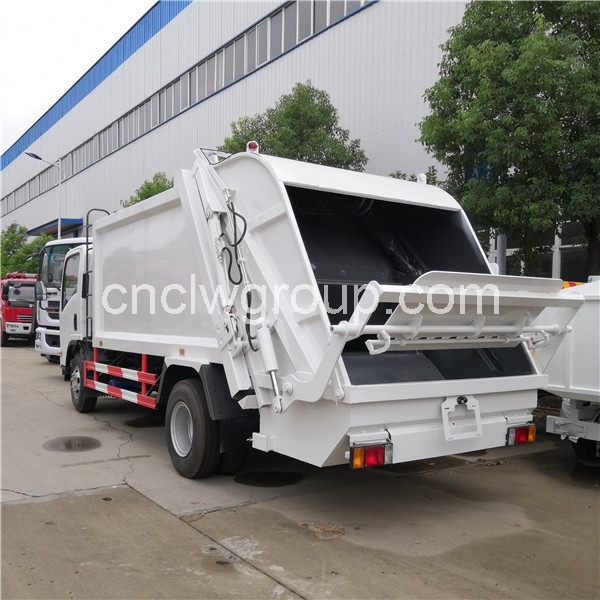

Chengli produced garbage compactor body, with 8 cubic meter volume box, rear with waste bin flip device, can flip 120L/240L/660L waste bins, control panel+manual lever+inside cab controlled.



Model CLW5100ZYSQ5
Chassis brand ISUZU
Wheeldrive 4x2 or 4x2, LHD
New or Used New
Overall dimension 7350x2500x2850mm
Gross weight 10000kg
Curb weight 5600kg
Load 5 tons
Wheelbase 3815mm
Engine power Qingling ISUZU 190HP Euro5
Fuel type DieseI
Transmission MLD 6-speed
Brake hydraulic brake
Axle load 4 tons/7 tons
Tire 6+1 pcs, 235/75R17.5 tires
Max speed 90km/h



【Structures & Features of Chengli Garbage Compactor】

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
