ISUZU 8x4 12W Boom Truck with XCMG 16 Ton Crane

ISUZU VC61 8x4 420HP boom truck crane
Gross weight: 37000kg
Load: 20-25 tons
Transmission: 12-speed manual gearbox
Tir: 12+1 pcs 315/80R22.5 tire
Crane brand: XCMG 16 tons crane
Crane type: straight telescopic arm crane, 5-section
Max lifting heig

【Chassis Parameters】

ISUZU VC61 GIGA 8x4 chassis, condition new, 1850+4575+1370mm wheelbase, ISUZU 420HP dieseI engine, 12-speed transmission, 315/80R22.5 tires, with one spare tire, 2x 7 ton front axle, 26 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

  • Cargo box: 8200x2350x550mm
  • Crane brand: XCMG SQS400 16 tons crane
  • Crane type: straight telescopic arm, 5-section extension boom
  • Max lifting height: 21 meters
  • Max working radiu: 18.9 meters


【Vehicle Basic Parameters】

Model CLW5370JSQQ5
Chassis brand ISUZU
New or Used New
Overall dimension 12000x2500x3980mm
Cargo box 8200x2350x550mm
Gross weight 37000kg
Curb weight 16500kg
Load 20-25  tons
Wheelbase 1850+4575+1370 (mm)
Engine power ISUZU 6WG1-TCG52 420HP Euro 5
Fuel type DieseI
Transmission Manual, 12-speed
Brake Full air brake, with ABS
Axle load ISUZU brand, 2x 7 Tons front axle, 26 Tons double mounted rear axle with inter-differential
Tire 12+1 pcs, 315/80R22.5
Max speed 90km/h

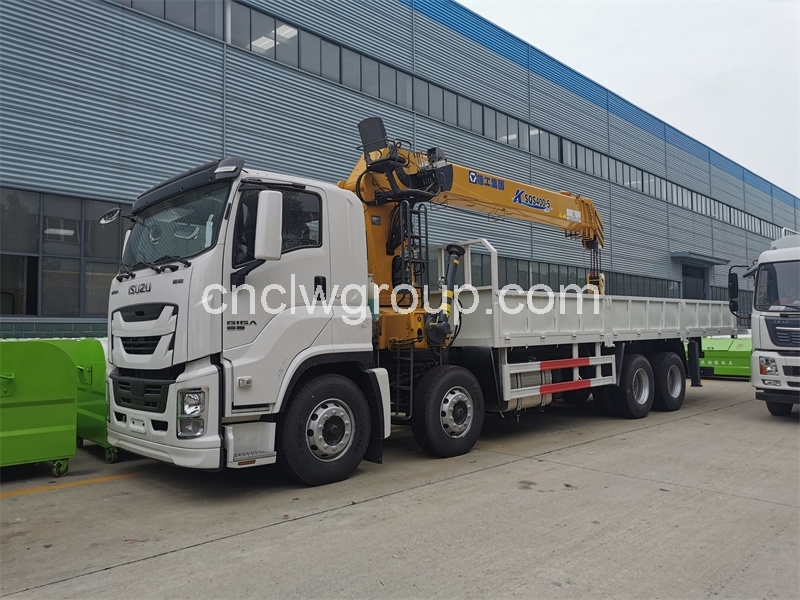

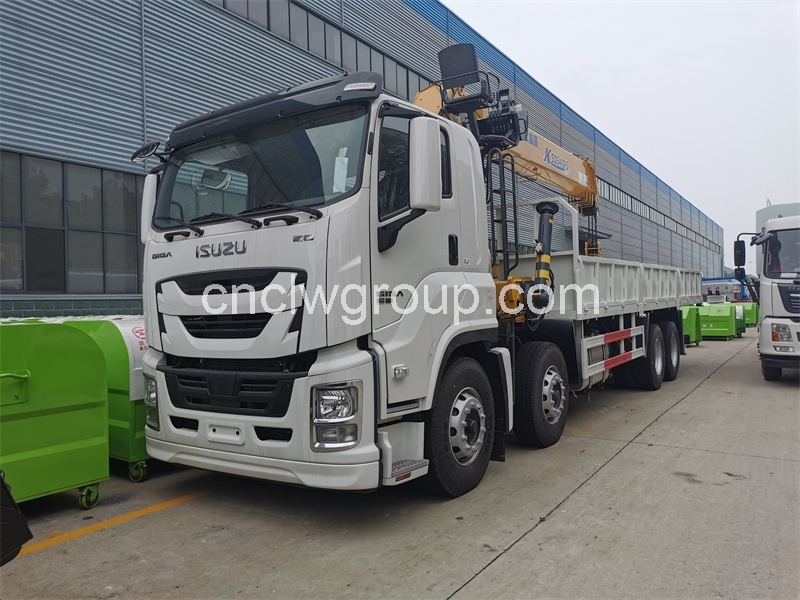

【Multi-directional Pictures】

【Crane Parameters】

Model SQS400
Brand XCMG
New or Used New
Max lifting weight 16 tons
Max torque 400 kN.m
Max lifting height 21 meters
Max working radius 18.9 meters
Recommand oil pressure 26MPa
Oil flow 63+63 L/min
Oil tank volume 260L
Slewing angle 360 degree
Front outrigger

Front hydraulic extension outrigger

span: 2238mm ~ 8198mm

Front outrigger

Rear hydraulic extension outrigger

span: 2200mm ~ 3500mm

Control Double side linkage operation + operation seat
Special funcitons Remote throttle, radiator, auto-drawback hook, 360° full slewing,  leveling bubble, etc


【XCMG SQS400 16 Tons Crane Lifting Capacity Graph】
