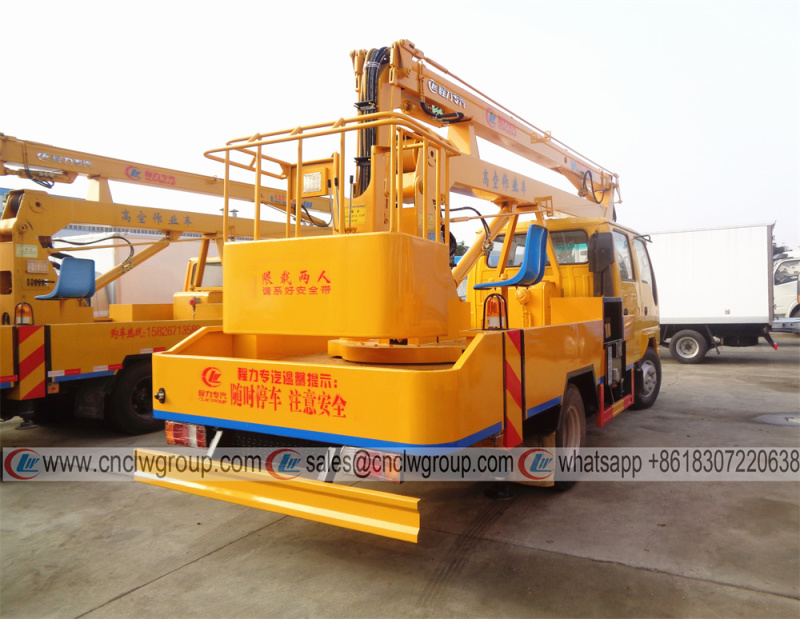

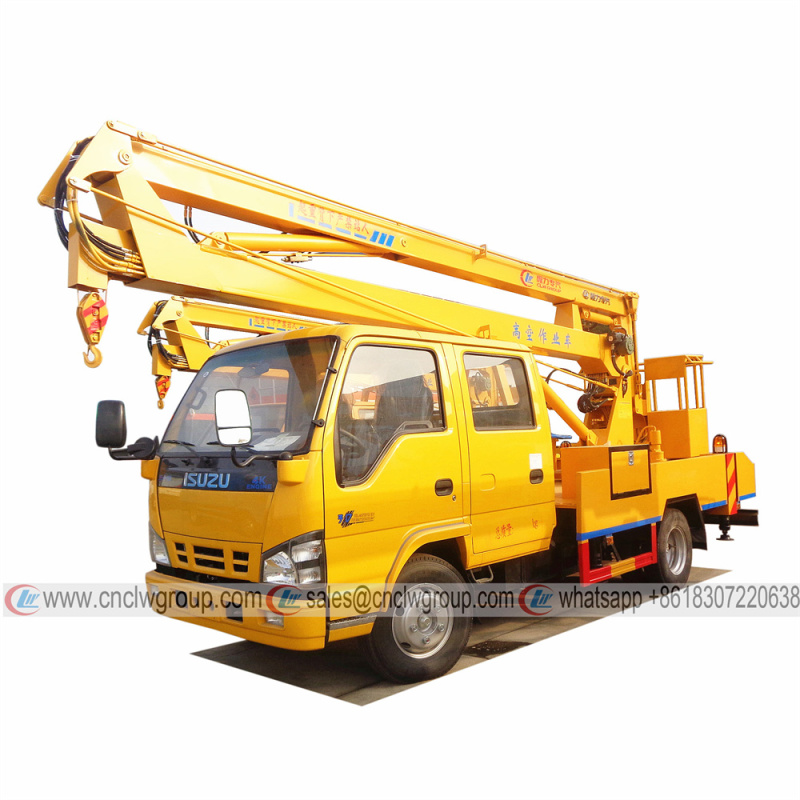

ISUZU Double Cab 16m Knuckle Aerial Work

- ISUZU 600P Double cabin 16m aerial work truck
- 130HP Euro5 engine
- 16m working height, 360° slewing
- Basket 200kg load, ±90° rotary
- 4 pcs hydraulic outriggers

【Chassis Parameters】

ISUZU NPR(600P) double cab  chassis, condition new, 3+3 seats, 3360mm wheelbase, ISUZU 130HP Euro 5 dieseI engine, ISUZU 5-speed transmission, 7.00R16 radial tires, with one spare tire, ISUZU 2.5 ton front axle, ISUZU 4.8 ton rear axle, double circuit oil brake with booster, power assist steering, with air conditioning, etc.


【Upper Structure Parameters】

Aerial work trucks refer to special vehicles that transport people and equipment to the scene and perform aerial operations. It has straight telescopic arm aerial truck and knuckle arm aerial truck.

  • Knuckle arm boom system, 3 section
  • Maximum working height 16 meters
  • Turntable 360° slewing
  • Basket 200kg load, size 1000x760x1100mm,  ±90° rotary
  • Control operation: at turntable seat and in basekt
  • 4 pcs hydraulic outriggers
  • Engineering rotary lights to warn people


Vehicle Basic Specifications
Vehicle Model  CLW5061JGKQ5 Maximum Working Height 16 meters
Chassis brand  ISUZU New or Used  Condition new
Overall dimension 6650x2000x3250mm Cargo Box Dimension  -
Gross weight 6850 kg Rated Weight  -
Curb weight 5860KG Wheelbase 3360mm
Axle No. 2 Cab Seat No. 3+3
Axle Load 2500/4800 kg Fuel Type Diesel
Engine ISUZU 130HP  Steering System LHD, power aissist steering
Transmission ISUZU 5 - speed Clutch Single dry clutch plate
Brake Dual-circuit oil brake Tire No. 6 +1 pcs
Front/Rear Suspension - Tire Model 7.00R16
Fuel Tank 100 liter Battery 24V
Max speed 90km/h
Superstructures Parameters
Model CLW GKZ16 Maximum Working Height 16 meters
Boom Type 3-section arm, telescopic arm Maximum Working Radius 6.5 meters
 Basket Dimension 1000x760x1100 mm Slewing Angle 360°
 Basket Load 200kg  Outrigger Front V rear H shape hydraulic legs
Basket Slewing ± 90 degree Outrigger Span

Horizontal 3.2 meter, Vertical 3.5 meters

Operation System

One set at down turntable position,  one set on upper basket.

Safety System

1. Outrigger leveling bubble;

3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time;

4. When people on basket, outrigger operation is locked, can't operate,  to prevent damage happened;

5. Emerngecy pump is installed to prevent emergency situation.






























Customer's Feedback

vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
