New ISUZU Elf 16feet Refrigerator Truck Ref Van Refrigerated Box Truck

- ISUZU Elf 3-5 Tons 16feet Refrigerator Van Truck
- Insulation Box: 4200x2000x2000mm
- Refrigeration unit: -16℃ ~ 0℃
- ISUZU 98HP or 115HP engine
- 6+1 pcs 7.00R16 radial tires

【Contact Us】

Chengli Special Automobile Co.,Ltd

Whatsapp +8618307220638

E-mail: [email protected]


Add: South Suburb Chengli Automobile Industry Park,Suizhou City,Hubei Province,China


【Chassis Parameters】

ISUZU Refrigerator Van Truck adapts Qingling ISUZU Elf cab chassis, condition new, 3 seats, 3360mm wheelbase, ISUZU 98HP or 115HP dieseI engine, ISUZU 5-speed transmission, 7.00R16 radial tires, with one spare tire, 2.5 Ton front axle, 4.8 Ton rear axle, air brake, with air conditioning, etc.

Chassis brand options: Dongfeng, Sinotruk HOWO, Foton, JAC, SHACMAN, SAIC-HONGYAN-IVECO, etc.


【Upper Structure Parameters】

ISUZU Refrigerator Van Truck 's Insulation box size 6800x2350x2400mm,  insulation box material outer and inner plate are FRP panel, middle with 80mm insulation layer; Refrigeration unit is Thermo King brand -16℃ capacity; at back of truck, with 1.5 tons hydraulic lift tailplate;

Refrigeration unit brand options of isuzu elf ref van truck: American import brand Thermo King, Carrier brand;   China brand Hanxue, Kauxue, Huatai, Bingli, etc.


Model CLW5070XLCQ
Chassis brand ISUZU
Wheeldrive 4x2
New or Used New
Overall dimension(mm) 9200x2550x3880
Insulation box dimension(mm) 4200x2000x2000
Material of Insulation box Sanwitch structure: FRP panel + 80mm insulation + FRP panel
Refrigeration unit
American Thermo King -16℃~ 0 ℃
Gross weight(kg) 7300
Curb weight(kg) 2850
Load Weight(kg) 3-5 tons
Wheelbase(mm) 3360
Engine power ISUZU 98HP or 115HP
Fuel type DieseI
Transmission ISUZU 5- speed
Brake Air brake
Axle load(front/rear) 2.5T / 4.8T
Tire 6+1 pcs, 7.00R16 radial tires
Max speed 90km/h

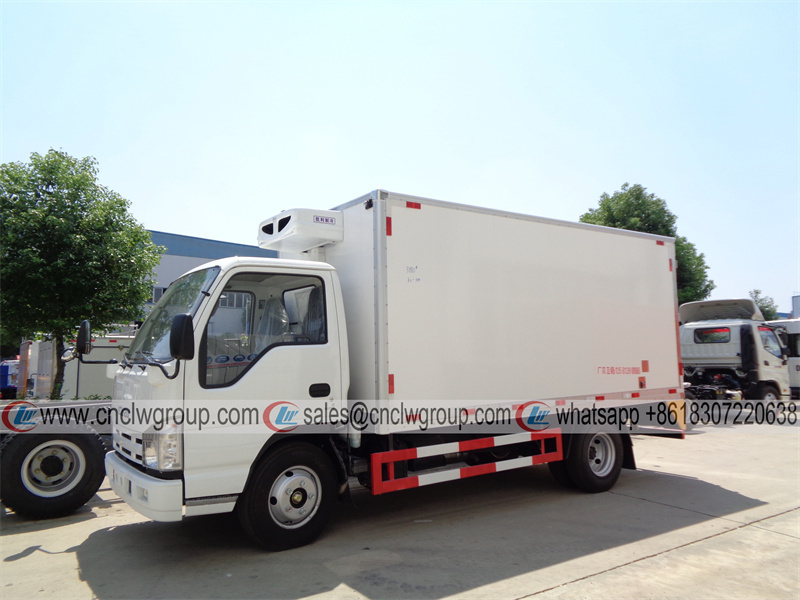

ISUZU Elf 16feet Refrigerator Van Truck

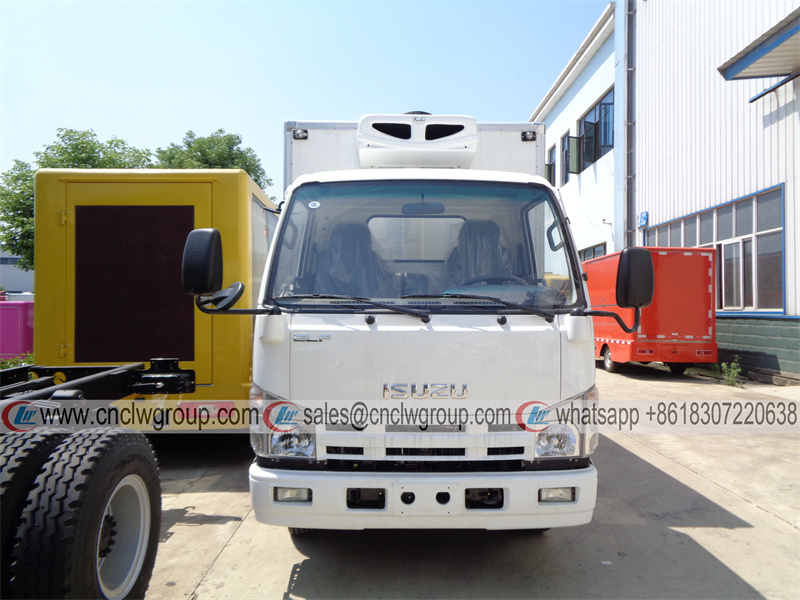

ISUZU Elf 16feet Refrigerator Van Truck

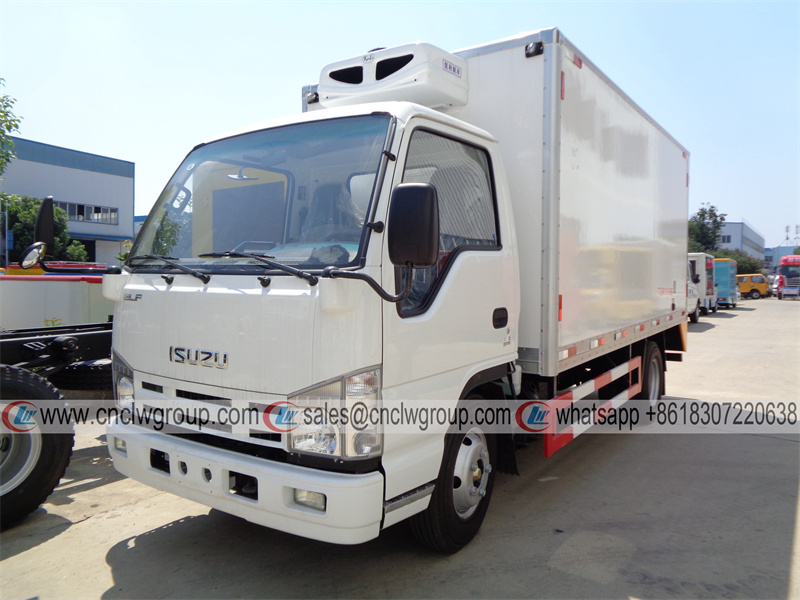

ISUZU Elf 16feet Refrigerator Van Truck

ISUZU Elf 16feet Refrigerator Van Truck

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
