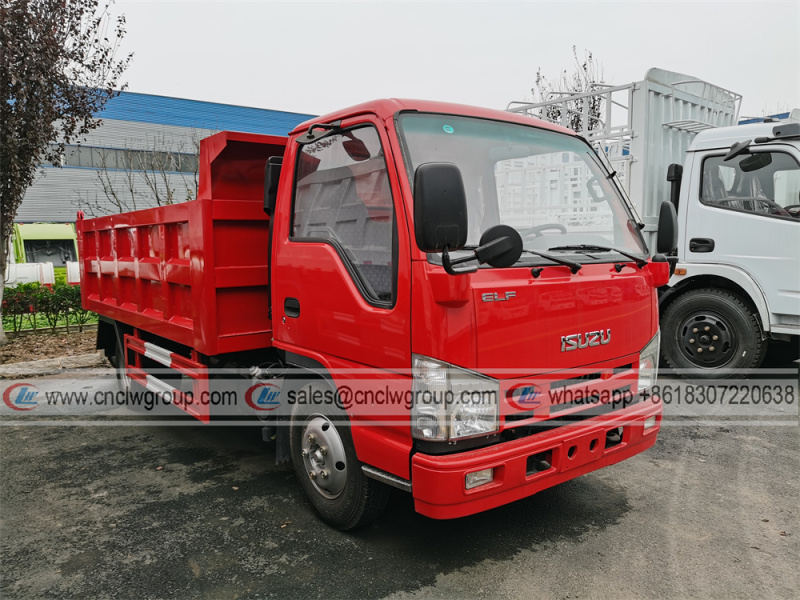

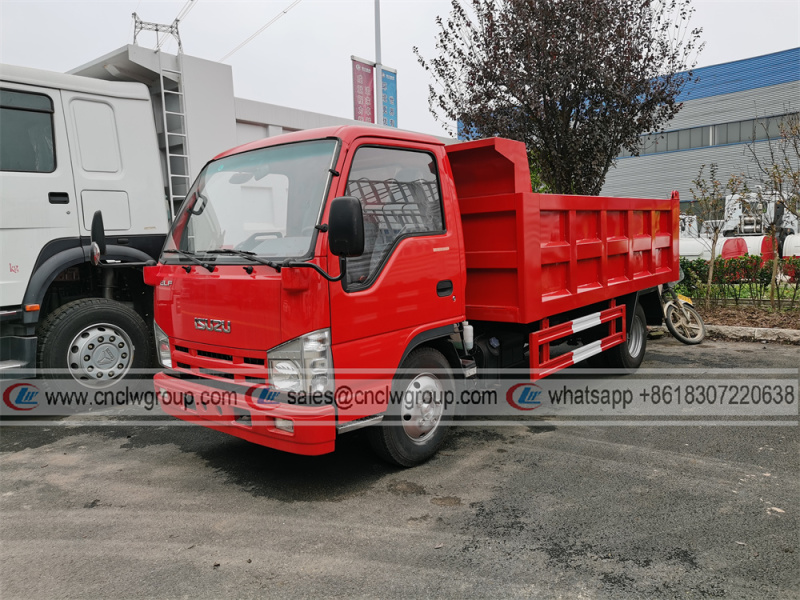

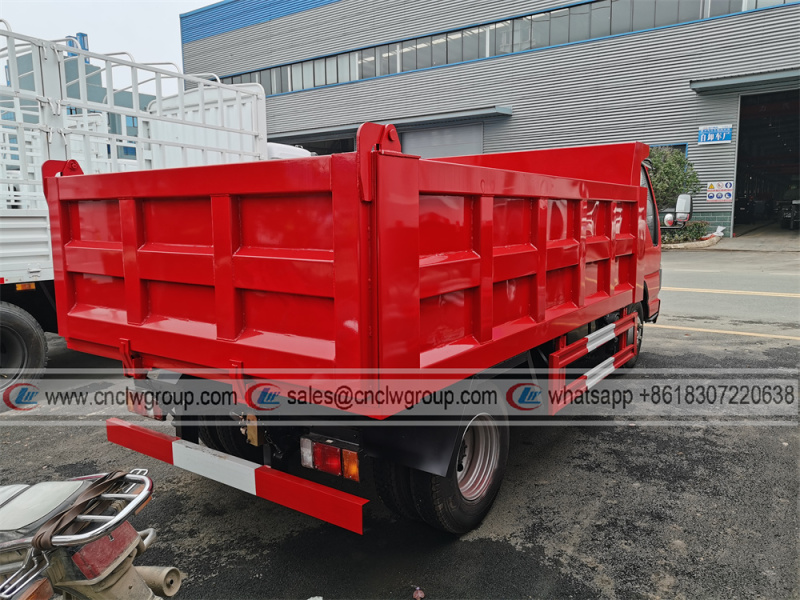

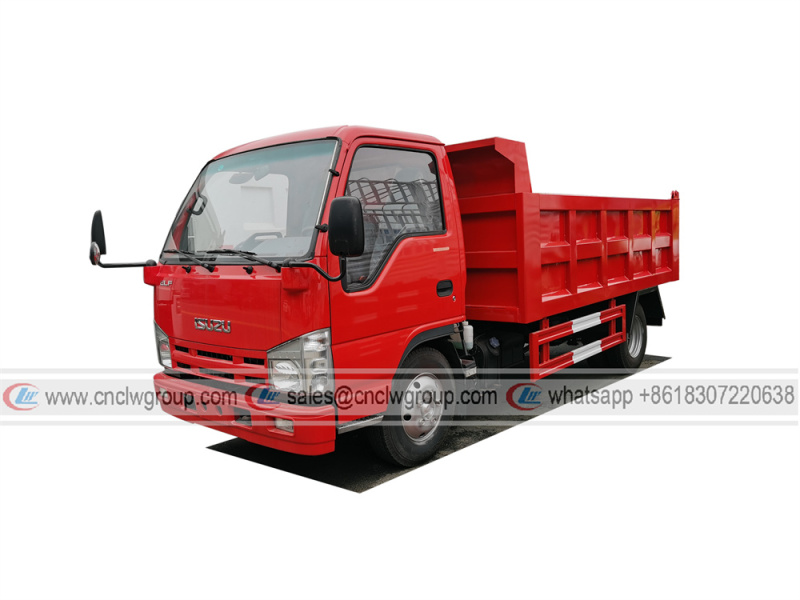

ISUZU Elf 4x2 3 Tons Dump Truck

ISUZU 4x2 Mini Dump Truck
Engine: ISUZU 98HP diesel engine
Tir: 6+1 pcs 7.00R16 radial tire
Load Capacity: 3 tons
Dump Box: 3600x1900x600mm
Rear dumping: middle double hydraulic cylinders

【Chassis Parameters】

ISUZU elf 4x2 chassis, single cabin, condition new, 3360mm wheelbase, ISUZU 98HP diesel engine, MSB-5 manual 5-speed transmission, 7.00R16 radial tires, with one spare tire, 2.0 ton front axle, 4.5 ton rear axle, air brake, power assist steering, exhaust pipe front mounted, etc.


【Upper Structure Parameters】

Dump box size 3600x1900x600mm;  dump box material 3mm side wall, 4mm floor plate; dump box middle double cylinder lifting jack, dumping angle 45°; control inside cabin, can lift box, down box, stop box.


Vehicle Basic Specifications
Model CLW5060ZZXQ5
Chassis brand ISUZU
Wheeldrive 4x2
New or Used New
Overall dimension(mm) 5820x2100x2200
Dump box dimension(mm) 3600x1900x600mm
Gross weight(kg) 6500
Curb weight(kg) 3400
Load Weight(kg) 3 tons
Wheelbase(mm) 3360
Engine power ISUZU 4KH1 98HP
Fuel type DieseI
Transmission Manual 5- speed
Brake Air brake
Axle load(front/rear) 2.0 tons / 4.5 tons
Tire 6+1 pcs, 7.00R16 radial tires
Max speed 90km/h
Vehicle Superstructure Parameters
Dump Box Dimension 3600x1900x600mm
Material High strengthen carbon steel, 3mm side, 4mm bottom
Unloading Method of Dump Box Double cylinders middle lifting
Maximum Dumping Angle ≤ 45°
Back Door Hinge structure , auto open when dumping
Side Opening Door One(1)


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
