ISUZU FTR 12cbm Garbage Compactor Truck

ISUZU FTR 12m3 garbage compactor truck
ISUZU 205HP Euro 5 engine
ISUZU 6-speed transmission
10.00R20 radial tires
12m3 volume, 4mm side wall, 4mm bottom plate
Rear waste bin flip device, intelligent control system+manual control+inside cab controlled

【Chassis Parameters】

ISUZU FTR cab  chassis, condition new, single cab, 3 seats with a sleeper, 4700mm wheelbase, ISUZU 205HP Euro 5 dieseI engine, ISUZU 6-speed transmission, 10.00R20 radial tires, with one spare tire, ISUZU 6.3 ton front axle, ISUZU 13 ton rear axle, air brake, power assist steering, with air conditioning, etc.


【Upper Structure Parameters】

Chengli produced garbage compactor body, with 10 cubic meter volume box, rear with waste bin flip device, can flip 120L/240L/660L waste bins, control panel+manual lever+inside cab controlled.


Model CLW5180ZYSQ5
Chassis brand ISUZU
New or Used New
Overall dimension 8150x2500x3150mm
Gross weight 18000kg
Curb weight 9500kg
Load 10 tons
Wheelbase 4700mm
Engine power ISUZU 205HP Euro5
Fuel type DieseI
Transmission ISUZU 6-speed
Brake air brake
Axle load ISUZU 6.3/13 Tons
Tire 6+1 pcs, 10.00R20 radial tires
Max speed 90km/h

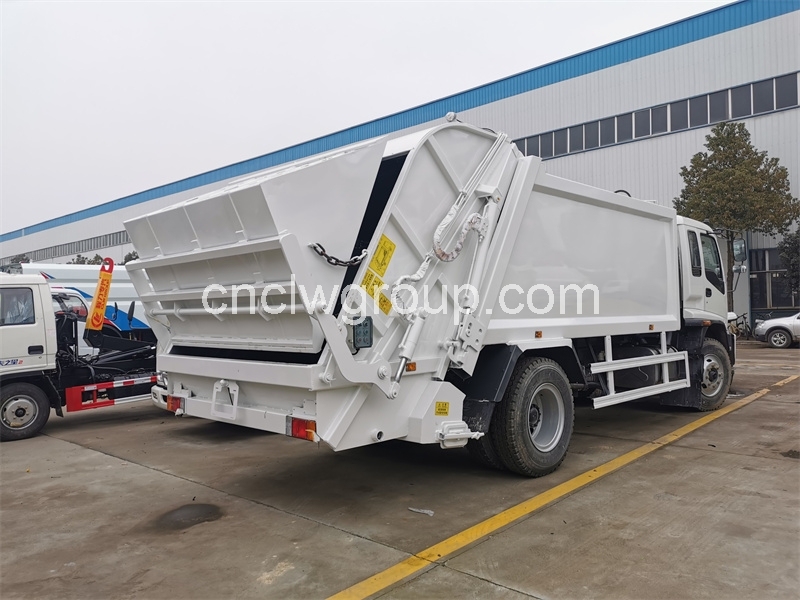

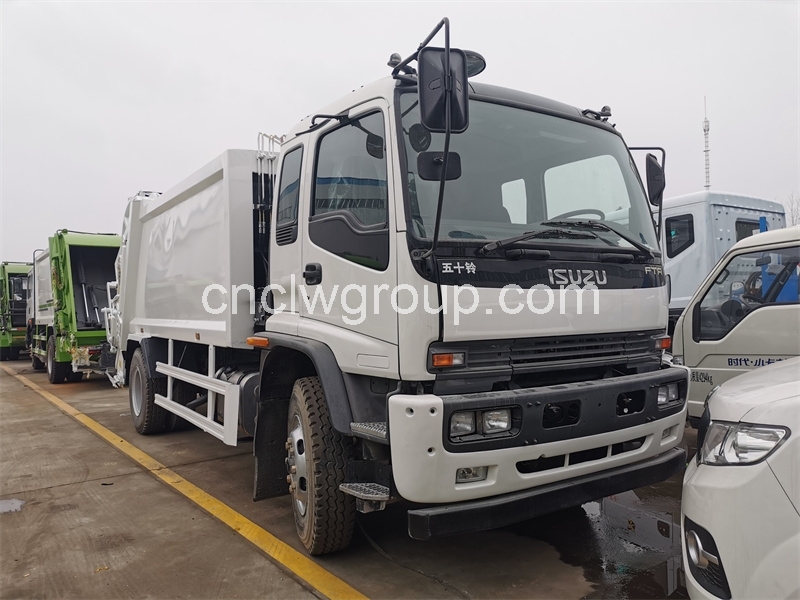

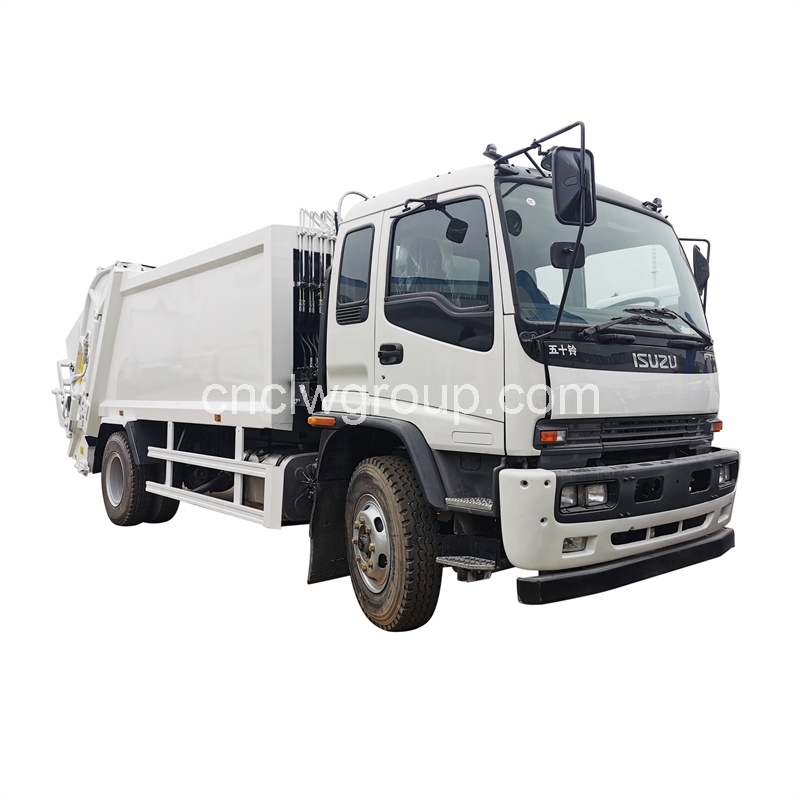

[Multi-directional Images]

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
