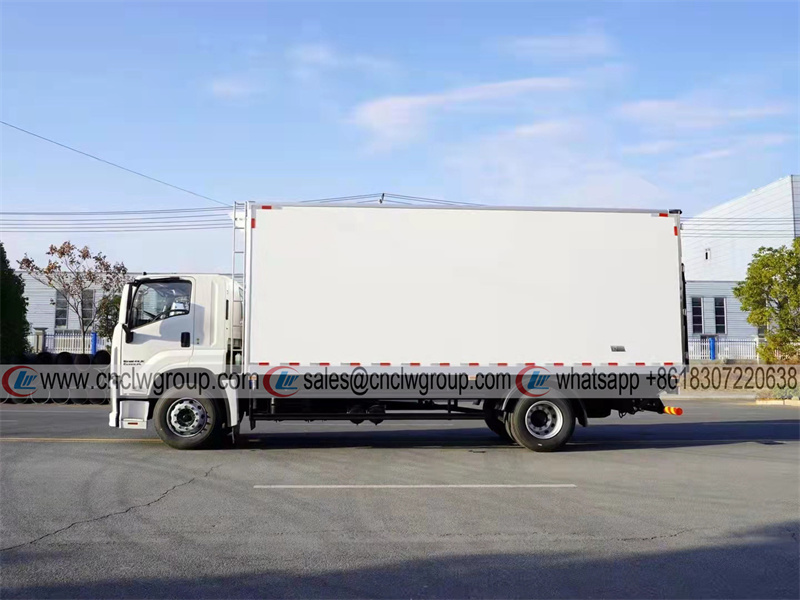

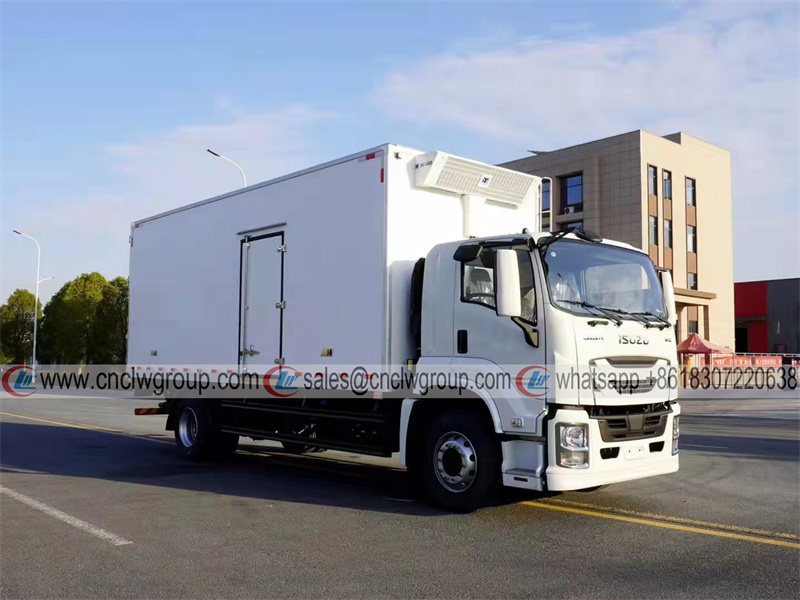

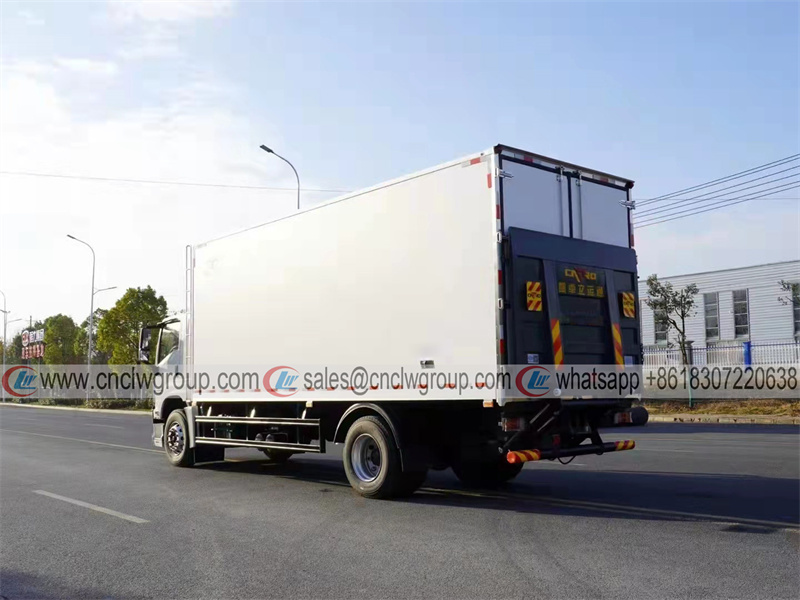

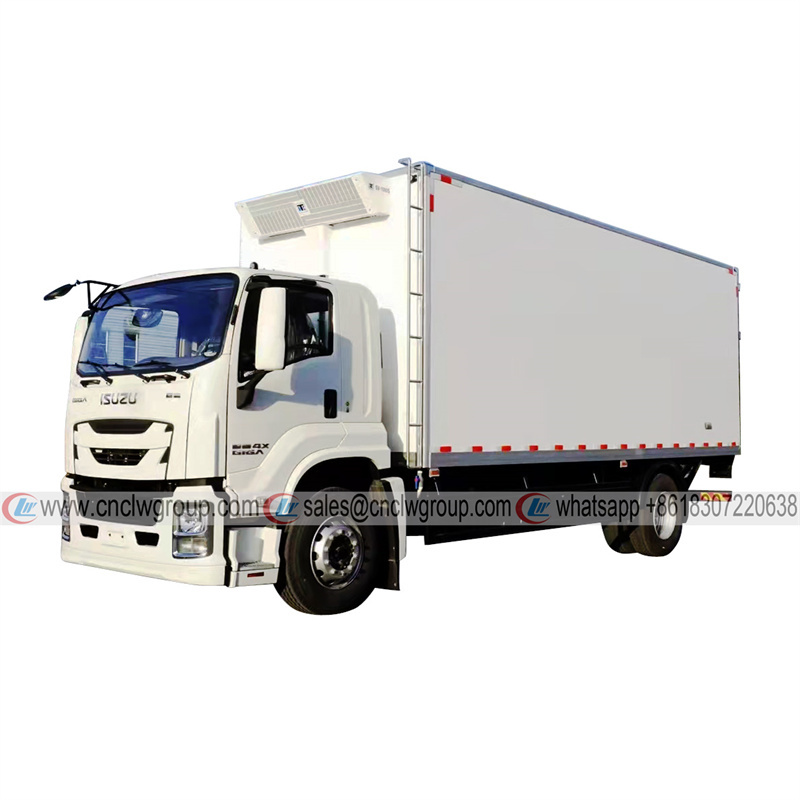

ISUZU GIGA VC61 6.8m Refrigerated Truck Freezer Van Reefer Truck

- ISUZU GIGA VC61 10-15 Tons 22feet Refrigerated Truck
- Insulation Box: 6800x2350x2400mm
- Refrigeration unit: -16℃ ~ 0℃
- ISUZU 205HP or 350HP engine
- 6+1 pcs 295/80R22.2 radial tires
Description
Description

【Contact Us】

Chengli Special Automobile Co.,Ltd

Whatsapp +8618307220638

E-mail: [email protected]

Http://www.cnclwgroup.com

Add: South Suburb Chengli Automobile Industry Park,Suizhou City,Hubei Province,China



【Chassis Parameters】

ISUZU Refrigerated Van Truck adapts Qingling ISUZU VC61 GIGA luxury new cab chassis, condition new, 3 seats with a sleeper, 5550mm wheelbase, ISUZU 205HP dieseI engine, ISUZU MLD 6-speed transmission, 295/80R22.5 radial tires, with one spare tire, 6.3 Ton front axle, 13 Ton rear axle, air brake, exhaust brake, power assist steering, with air conditioning, power window, central lock, multi functional steering wheel, multi fuctional dashboard, with ABS, etc.

Chassis brand options: Dongfeng, Sinotruk HOWO, Foton, JAC, SHACMAN, SAIC-HONGYAN-IVECO, etc.



【Upper Structure Parameters】

ISUZU Refrigerated Van Truck 's Insulation box size 6800x2350x2400mm,  insulation box material outer and inner plate are FRP panel, middle with 80mm insulation layer; Refrigeration unit is Thermo King brand -16℃ capacity; at back of truck, with 1.5 tons hydraulic lift tailplate;

Refrigeration unit brand options: American import brand Thermo King, Carrier brand;   China brand Hanxue, Kauxue, Huatai, Bingli, etc.



Model CLW5180XLCQ
Chassis brand ISUZU
Wheeldrive 4x2
New or Used New
Overall dimension(mm) 9200x2550x3880
Insulation box dimension(mm) 680x2350x2400
Material of Insulation box Sanwitch structure: FRP panel + 80mm insulation + FRP panel
Refrigeration unit
American Thermo King -16℃~ 0 ℃
Hydraulic lift Tailplate 1.5 tons lifting capacity, installed at back of truck
Gross weight(kg) 18000
Curb weight(kg) 6950
Load Weight(kg) 10-15 tons
Wheelbase(mm) 5550
Engine power ISUZU 205HP or 350HP
Fuel type DieseI
Transmission ISUZU 6- speed
Brake Air brake
Axle load(front/rear) 6.3T / 13T
Tire 6+1 pcs, 295/80R22.5 radial tires
Max speed 90km/h



As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
