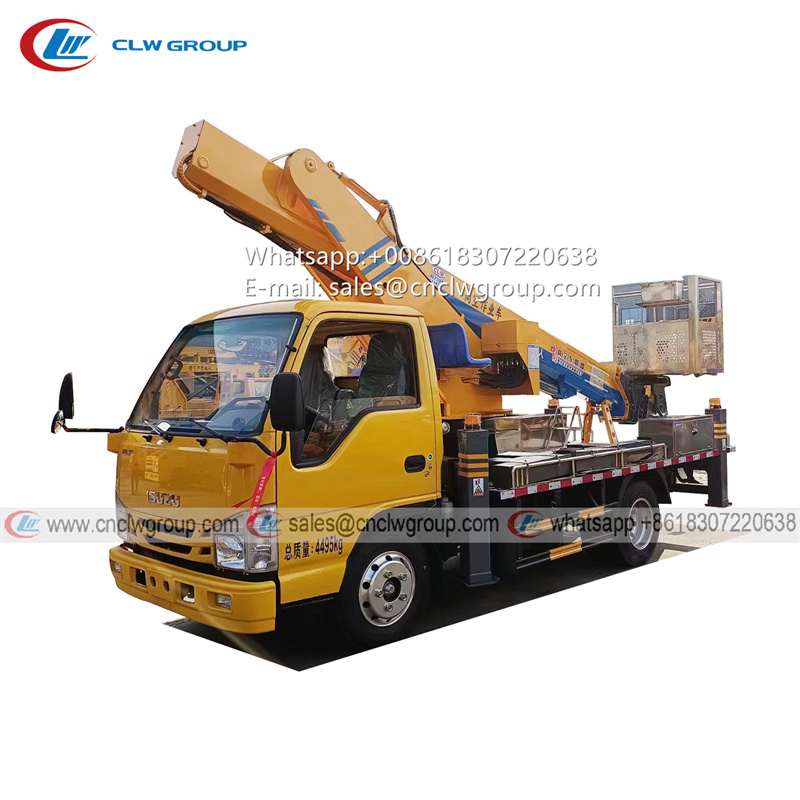

ISUZU nkr 20m 22m 23m aerial work platform truck

- Brand: ISUZU
- Engine:120HP engine
- Working height:20 meter
- Slewing:360°
- Basket load:200kg
- Whatsapp/mob:+8618307220638
- Email:[email protected]
- Website:www.cnclwgroup.com
Description
Description

【Chassis Parameters

Chassis parameters of ISUZU nkr 20m 22m 23m aerial work platform truck: Isuzu elf double cab chassis, condition new, 3  seats, 3360mm wheelbase, ISUZU 4KH1 120HP dieseI engine, Manual 5-speed transmission, 7.00R16 tires, with one spare tire, 2.5 ton front axle, 4.8 ton rear axle, hydraulic brake, power assist steering, with air conditioning, etc.



【Upper Structure Parameters】

Superstructure parameters of ISUZU nkr 20m 22m 23m aerial work platform truck: Aerial work trucks refer to special vehicles that transport people and equipment to the scene and perform aerial operations. It has straight telescopic arm aerial truck and knuckle arm aerial truck.

  • /Straight arm boom system, 4 section.

/Maximum working height 20 meters.

  • /Turntable 360° slewing.
  • /Basket 200kg load, size 1000x750x1140mm,  360° rotary.
  • Stainless steel basket, or Insulated bucket, fiberglass bucket(optional)
  • /Control operation: computer + manual control levers + wireless remote control box(optional)
  • /4 pcs hydraulic outriggers.
  • /Engineering rotary lights to warn people.



Vehicle Basic Specifications
Vehicle Model  CLW5070JGKQ5 Maximum Working Height  20 meters
Chassis brand ISUZU 4x2 New or Used  Condition new
Overall dimension 7450x2000x3300mm Cargo Box Dimension  -
Gross weight 7300 kg Rated Weight  -
Curb weight 5068 kg Wheelbase  3360mm
Axle No. 2 Cab Seat No. 3
Axle Load 2500/4800 kg Fuel Type Diesel
Engine ISUZU 120HP Diesel Steering System LHD, power aissist steering
Transmission Manual 5- speed Clutch Single dry clutch plate
Brake Hydraulic brake Tire No. 6 +1 pcs
Front/Rear Suspension - Tire Model 7.00R16
Fuel Tank 100 liter Battery 12V
Max speed 90km/h
Superstructures Parameters
Model CLW GK20S Maximum Working Height 20 meters
Boom Type 4-section arm, telescopic arm Maximum Working Radius 18.4 meters
 Basket Dimension 1000x750x1200 mm Slewing Angle 360° continually rotary
 Basket Load 200kg  Outrigger Front V rear H shape hydraulic legs
Basket Slewing 360°  Outrigger Span

Horizontal 4.0meter, Vertical 4.0 meters

Operation System

One set at down turntable position,   one set on upper basket.

Optional:  computer control system + wireless remote controller

Safety System

1. Whole vehicle automatically balance leveling real-time test;

2. Outrigger auto leveling, basket auto leveling;

3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time;

4. When people on basket, outrigger operation is locked, can't operate,  to prevent damage happened;

5. Emerngecy pump is installed to prevent emergency situation.



Reference Photos of ISUZU ELF 24m aerial work platform truck:

Detail Photos of ISUZU ELF 24m aerial work platform truck:

Central Operation Seat at slewing base

More Photos of ISUZU ELF 24m aerial work platform truck:















【Customers Feedback】

Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System

In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.

◆Training Service

Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.

◆Warranty Commitment

Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.

◆24 Hours Service

The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.

◆Rescue Service

When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.

◆Customer Return Visit

Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.

Order Process

     ①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.

     ②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).

     ③: Arrange production: Our company arranges workshop production according to the contract requirements.

     ④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!

Answers to the Questions that Customers Care About before Purchasing?

(1) Free maintenance plan and period?

1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.

(2) What is the price method of free post-parts supply?

1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.

(3) After-sales service method?

The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.

(4) Technical training program?

The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.

(5) How to transport and load the vehicle?

According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.

(6) What is the time to pick up the car at the factory?

Self-pick-up time: Monday to Sunday, 08:00-19:00 (some self-pick-up points work hours from 9:00-18:00, in case of national holidays, the press release time shall prevail. focus on)

(7) Can't we go to China abroad? Want to see the car to see the factory how to do?

We can let users see the general situation of offices, factories, production scenes, and factories through video calls and shooting videos, and help foreign customers understand us. For users who order vehicles, they can watch the vehicle appearance, function demonstration videos, and other details through video inspection, so that users can grasp their order production progress and situation in real time. We will create high-quality and personalized special vehicles for each user according to the actual needs of users. You are welcome to visit the production strength and product technology on the spot, and we will provide you with the best service!
