IVECO Hongyan 10 Tons Flat bed Truck

- IVECO Hongyan 10-12 tons Excavator Flatbed Truck
- Yuchai 180HP or 245HP Diesel engine
- 6+1 pcs 10.00R20 radial tires
- Flat bed dimension: 5600x2500(mm)
- Spring ladder: Mechanical or Hydraulic

【Chassis Parameters】

IVECO Hongyan 10-12 tons flatbed truck adapts SAIC-IVECO-Hongyan dedicated chassis, condition new, 3 seats with a sleeper, 5000mm wheelbase, YUCHAI 180HP or 245HP dieseI engine, Fast 8-speed transmission, 10.00R20 radial tires, with one spare tire, 5.5 ton front axle, 10 ton rear axle, air brake, power assist steering, with air conditioning, etc.

【Upper Structure Parameters】

IVECO Hongyan 10-12 tons excavator self loading flatbed truck, can choose with hydraulic lift outriggers leg installed behind cabin, 2 x 10 tons, 15 tons lift capacity, which can be used to lift the flatbed truck to make a ramp of the flat deck bed, for a easy climb or loading onboard for excavators or cars or machines. It is mainly used for carrying excavator, bulldozer, loaders, road rollers, large agricultural machinery, etc. Traditional flatbed truck with two pcs ladders for climbing up, but is very dangerous and for some crawler-type or large machinery is prone to rollover due to the corners of the platform and ladder when getting on the vehicle. Chengli CLW produced self loading flatbed truck, installed a heavy lifting front outrigger at front of flatbed, behind cabin,  it can lifting the truck to give the flat deck plate a tilt angle, so that any truck or machinery can easily climb onto the flat bed,  and on the front of the deck bed, can install hydraulic winch, 5 tons, 8 tons, 10 tons, 20 tons to pull up fault vehicles or machines.


Model CLW5180TPB
Chassis brand IVECO Hongyan
New or Used New
Overall dimension(mm) 8200x2500x2980
Flatbed dimension(mm) 5600x2500
Gross weight 18000kg
Curb weight 7500kg
Load 10-12 tons
Wheelbase(mm) 5000
Engine power YUCHAI 180HP or 245HP engine
Fuel type DieseI
Transmission 6 or 8 - speed
Brake Full air brake
Axle load 6500/11500(kg)
Tire 6+1 pcs, 10.00R20 tires
Max speed 90km/h

- Dimension: 5600x2500mm

- Material: 6mm deck plate, under supported with 100x100mm square tube made frame

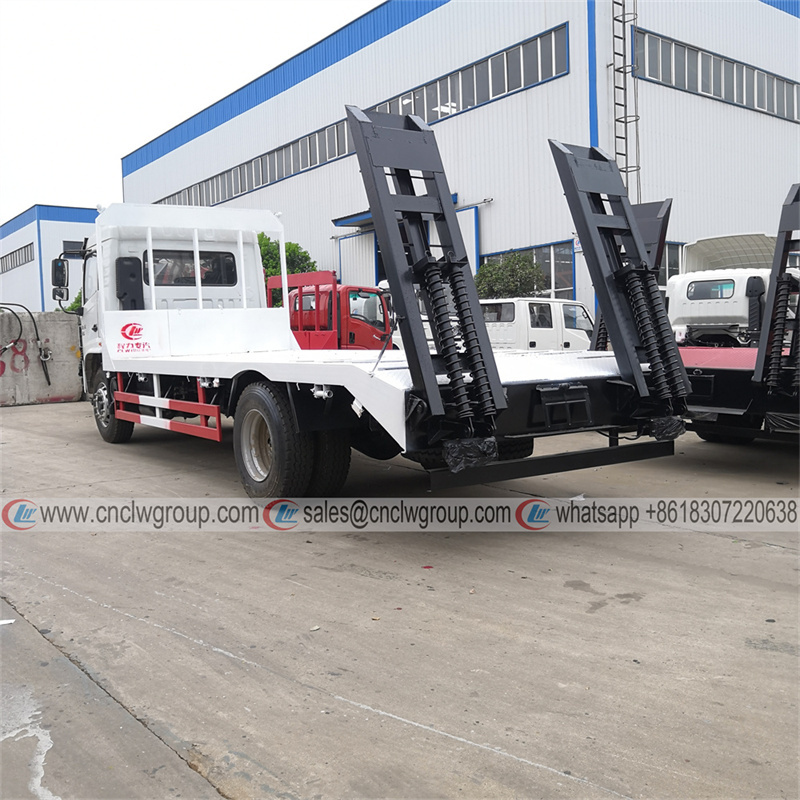

- Rear ladder: 2 pcs mechanical spring ladders(can choose hydraulic ladders)

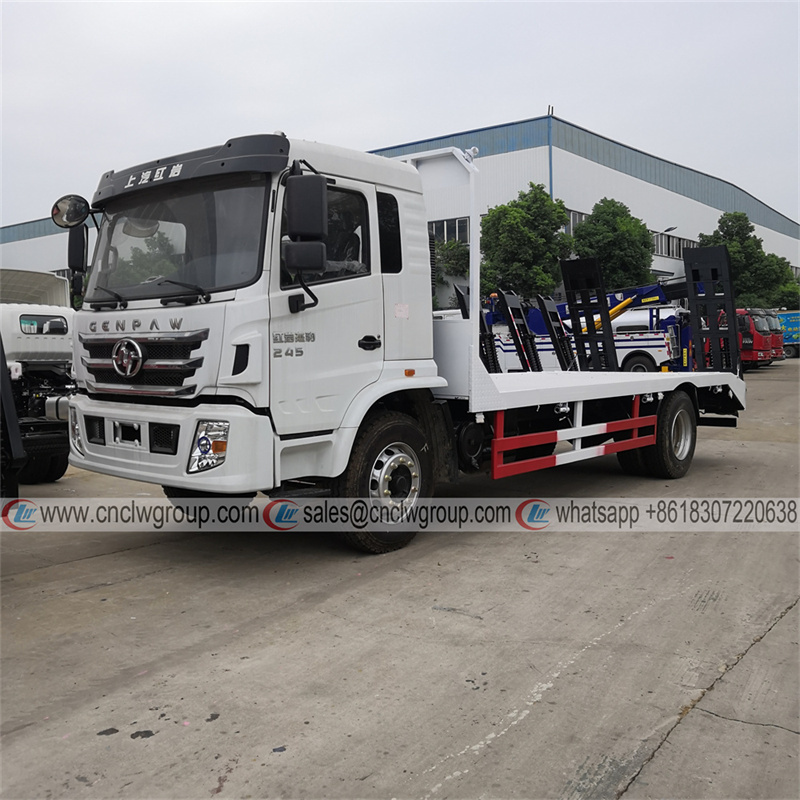

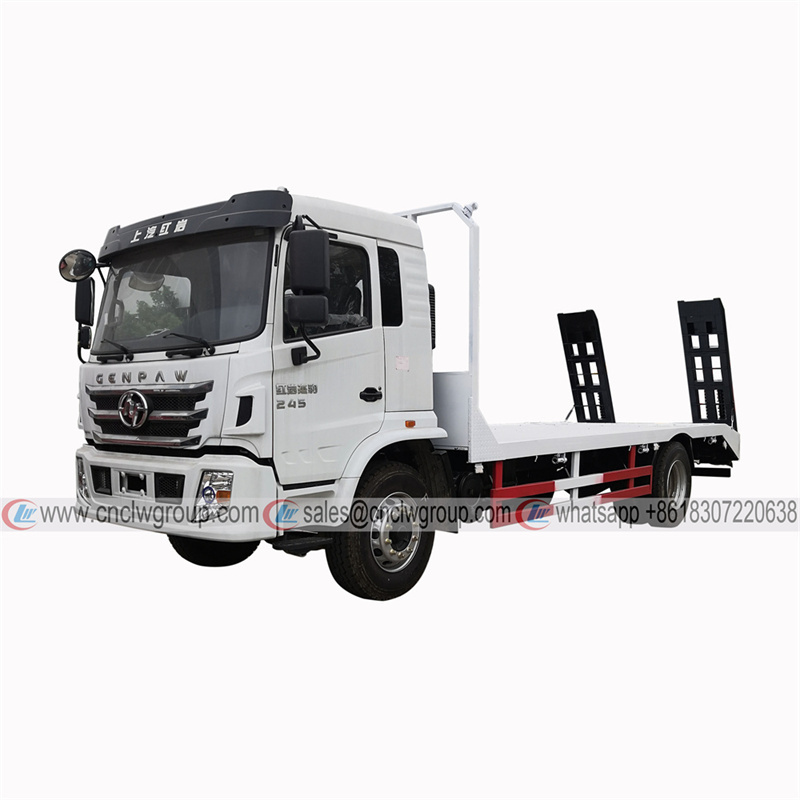

[Multi-directional Images]

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
