【Chassis Parameters】
JAC 5 ton 14feet refrigerated van mobile freezer truck 's JAC single cab chassis, condition new, 3 seats with bed, 3360mm wheelbase, Cummins 125HP Euro 2 dieseI engine, Manual 6-speed transmission, 7.00R16 radial tires, with one spare tire, 2.5 Ton front axle, 5.0 Ton rear axle, hydraulic brake, exhaust brake, power assist steering, etc.
Chassis brand options: ISUZU refrigerated van mobile freezer truck, Sinotruk HOWO refrigerated van mobile freezer truck, Foton refrigerated van mobile freezer truck, FAW refrigerated van mobile freezer truck, Dongfeng refrigerated van mobile freezer truck, SHACMAN refrigerated van mobile freezer truck, SAIC-HONGYAN-IVECO refrigerated van mobile freezer truck, Changan refrigerated van mobile freezer truck, etc.
【Upper Structure Parameters】
JAC 5 ton 14feet refrigerated van mobile freezer truck: Insulation box size 4200x2000x2000mm, large box volume; insulation box material outer and inner plate are FRP panel, middle with 80mm insulation layer; Refrigeration unit of small refrigerated truck is -16℃ cooling capacity.
Refrigeration unit brand options of refrigerated vans mobile freezer truck: American import brand Thermo King, Carrier brand; China brand Hanxue, Kauxue, Huatai, Bingli, etc.
| Model | CLW5070XLCHF3 freezer truck |
| Chassis brand | JAC |
| Wheeldrive | 4x2 |
| New or Used | New |
| Overall dimension(mm) | 5995x2210x2980 |
| Insulation box dimension(mm) | 4200x2000x2000 |
| Material of Insulation box | Sanwitch structure: FRP panel + 80mm insulation + FRP panel |
| Refrigeration unit |
China brand or Themro King Carrier -16℃~ 0 ℃ |
| Gross weight(kg) | 7360 |
| Curb weight(kg) | 2800 |
| Load Weight(kg) | 4440 |
| Wheelbase(mm) | 3360 |
| Engine power | Cummins 125HP Euro2 |
| Fuel type | DieseI |
| Transmission | Manual 6- speed |
| Brake | Hydraulic brake |
| Axle load(front/rear) | 2.5T / 5.0T |
| Tire | 6+1 pcs, 7.00R16 radial tires |
| Max speed | 90km/h |

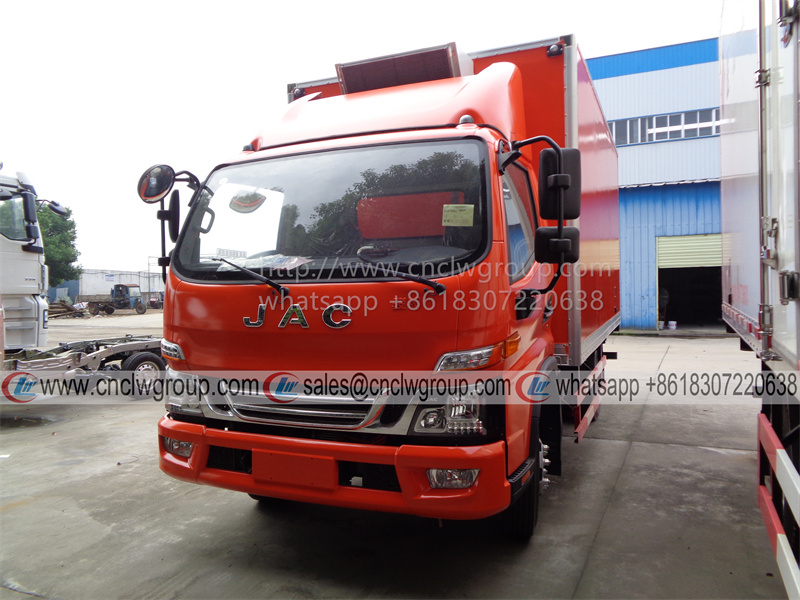

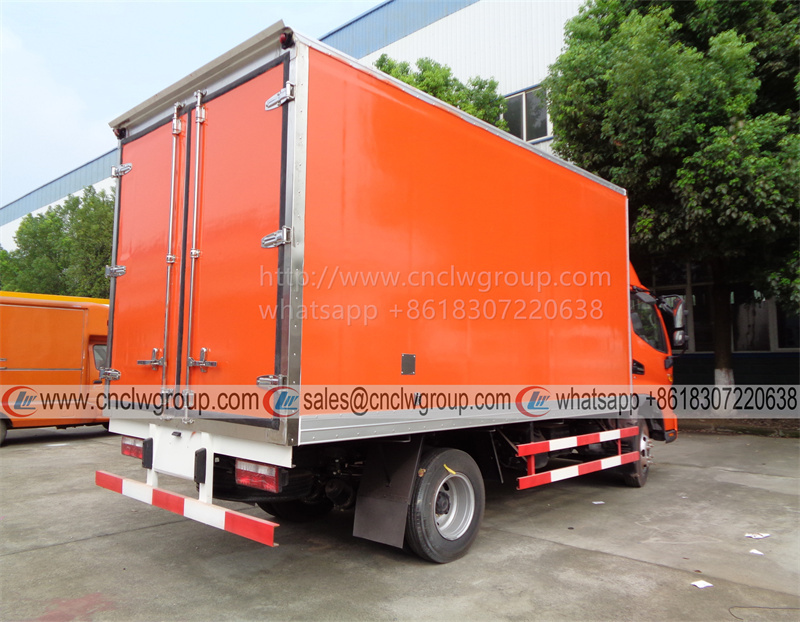

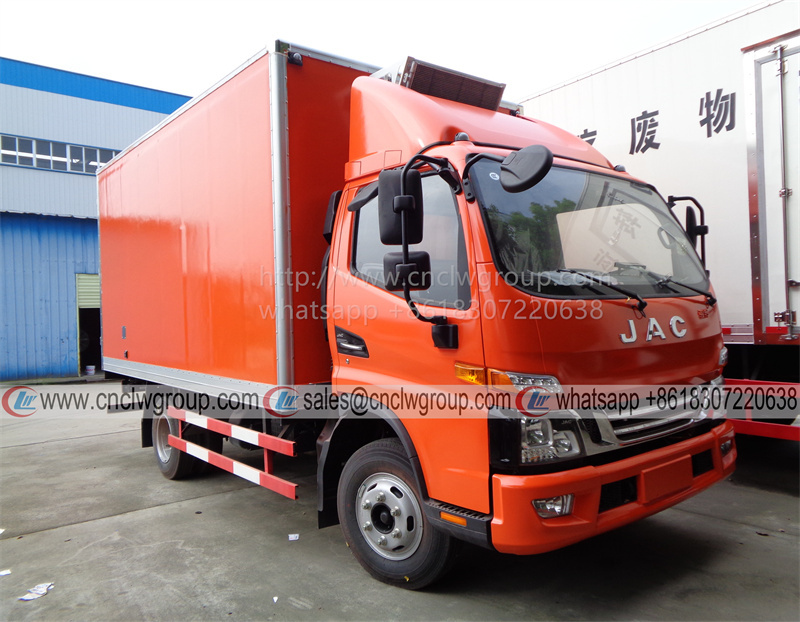

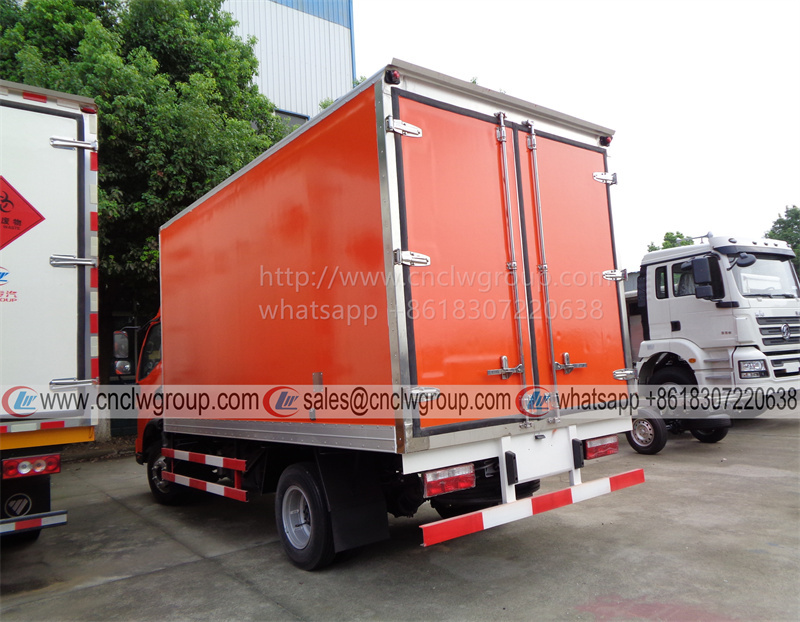

JAC 5 ton 14feet refrigerated van mobile freezer truck
JAC 5 ton 14feet refrigerated van mobile freezer truck
JAC 5 ton 14feet refrigerated van mobile freezer truck
Main structures of JAC 5 ton 14feet refrigerated van mobile freezer truck
Different devices and configurations you can choose for your JAC 5 ton 14feet refrigerated van mobile freezer truck
the additional items specially for JAC 5 ton 14feet refrigerated van mobile freezer truck
- For mobile freezer truck load capacity, we have 1 ton mobile freezer truck, 2~3 tons mobile freezer truck, 3~5 tons mobile freezer truck, 6~8 tons mobile freezer truck, 8~10 ton mobile freezer truck, 10~15 ton mobile freezer truck,15-20 ton mobile freezer truck,20-25 ton mobile freezer truck,25-30 ton mobile freezer truck,over 30 tons mobile freezer truck;
- For refrigerated truck brand, we have dongfeng refrigerated truck,foton refrigerated truck,isuzu refrigerated truck,howo refrigerated truck, shacman refrigerated truck,jmc refrigerated truck,jac refrigerated truck,kama refrigerated truck,iveco refrigerated truck,clw refrigerated truck,hino refrigerated truck,benz refrigerated truck,volvo refrigerated truck,etc.
- For refrigerated vans box length, we can produce from 2 meters to 16 meters long truck type or trailer type.
If you need small refrigerated truck or van, please contact us freely.
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
