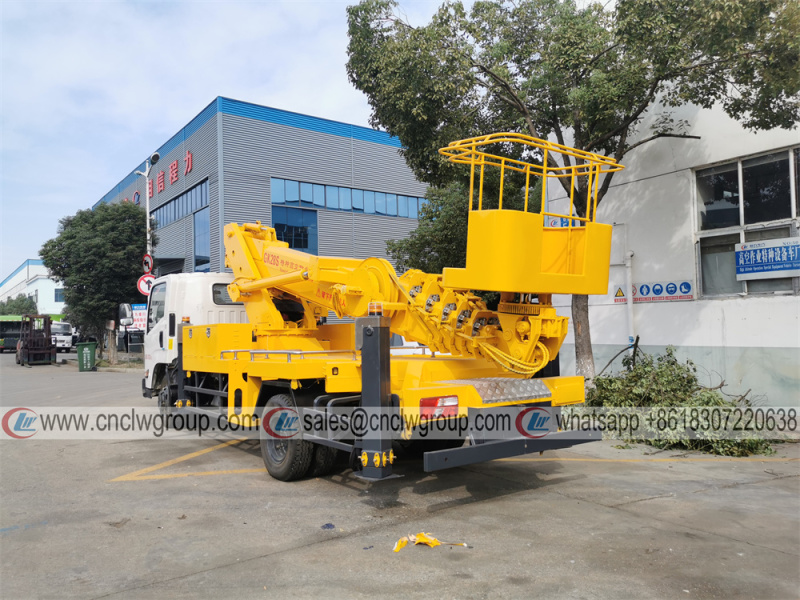

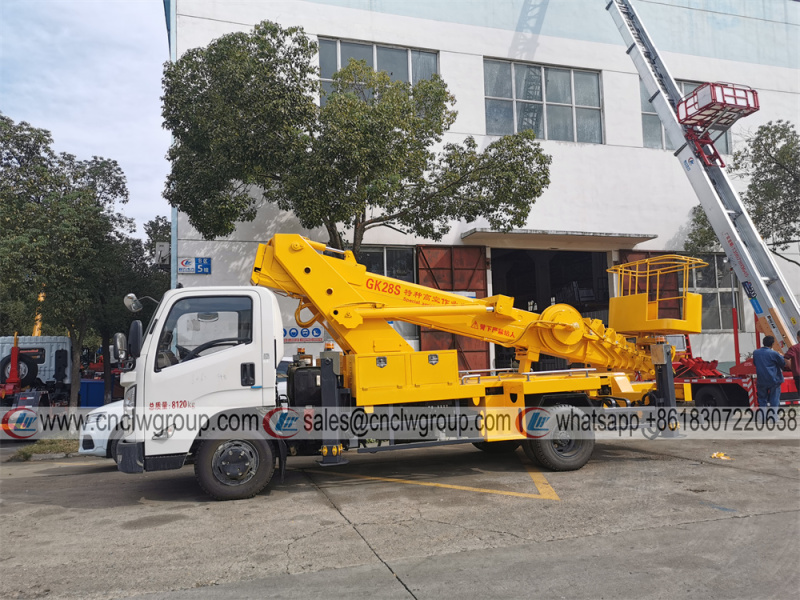

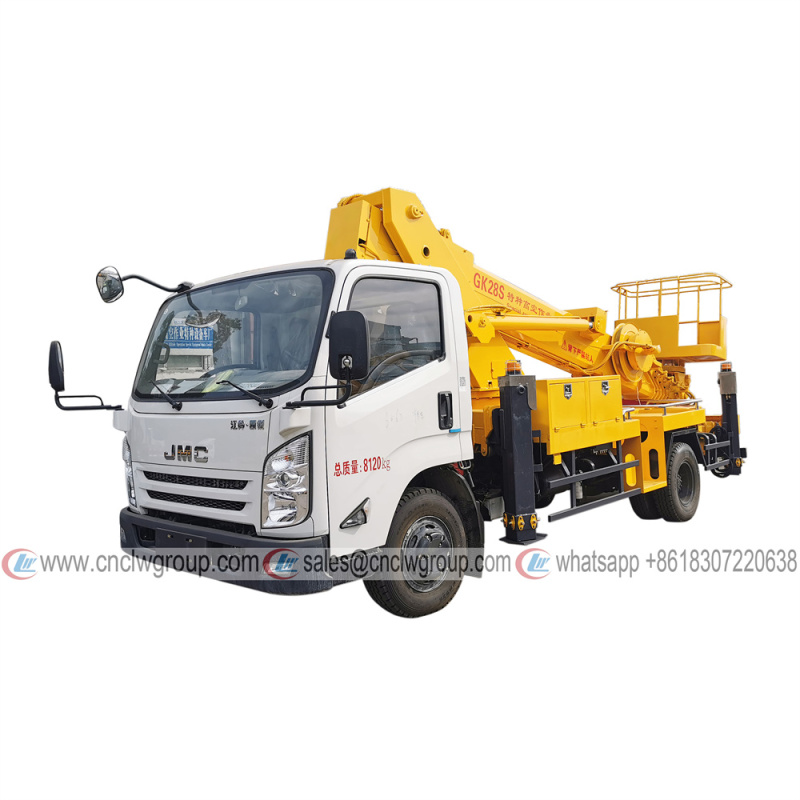

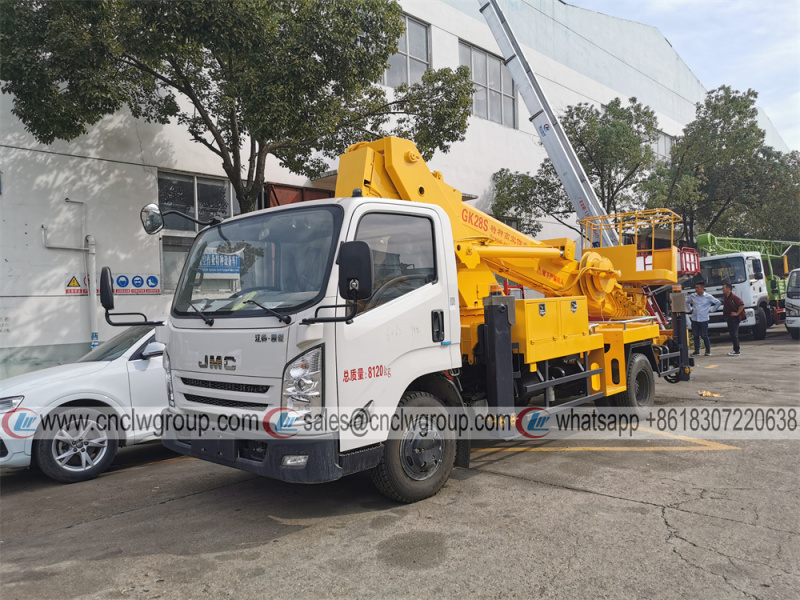

JMC 29m Telescopic Bucket Truck

- JMC 29m aerial bucket truck
- Quanchai 150HP diesel engine
- 29m working height, 360° slewing
- Basket 200kg load, 360° slewing
- 4 pcs hydraulic outriggers
- Remote controlled + manual levers

【Chassis Parameters

Chassis parameters of JMC 29m aerial bucket truck: Foton Forland cab  chassis, condition new, 3 seats, 3815mm wheelbase, Jiangling 150HP Euro4 dieseI engine, Manual 6-speed transmission, 7.5016 tires, with one spare tire, 2 ton front axle, 5 ton rear axle, air brake, power assist steering, with air conditioning, etc.


【Upper Structure Parameters】

Superstructure parameters of JMC 29m aerial truck: Aerial work trucks refer to special vehicles that transport people and equipment to the scene and perform aerial operations. It has straight telescopic arm aerial truck and knuckle arm aerial truck.

  • /Straight arm boom system, 4 section.

/Maximum working height 29 meters.

  • /Turntable 360° slewing.
  • /Basket 200kg load, size 1200x750x1140mm,  360° rotary.
  • /Control operation: computer + manual control levers + wireless remote control box(optional)
  • /4 pcs hydraulic outriggers.
  • /Engineering rotary lights to warn people.


Vehicle Basic Specifications
Vehicle Model  CLW5080JGKJX3 Maximum Working Height  29 meters
Chassis brand JMC 4x2 New or Used  Condition new
Overall dimension 7260x2250x3250mm Cargo Box Dimension  -
Gross weight 8500 kg Rated Weight  -
Curb weight 6850 kg Wheelbase  3815mm
Axle No. 2 Cab Seat No. 3
Axle Load 2500/5000 kg Fuel Type Diesel
Engine Jiangling 150hp Euro3 Steering System LHD, power aissist steering
Transmission Manual 5- speed Clutch Single dry clutch plate
Brake Air brake Tire No. 6 +1 pcs
Front/Rear Suspension - Tire Model 7.50R16
Fuel Tank 100 liter Battery 24V
Max speed 80km/h
Superstructures Parameters
Model CLW GK29S Maximum Working Height 29 meters
Boom Type 4-section arm, telescopic arm Maximum Working Radius 18 meters
 Basket Dimension 1200x750x1200 mm Slewing Angle 360° continually rotary
 Basket Load 200kg  Outrigger Front V rear H shape hydraulic legs
Basket Slewing 360°  Outrigger Span

Horizontal 4.2 meter, Vertical 4.0 meters

Operation System

One set at down turntable position,   one set on upper basket.

Optional:  computer control system + wireless remote controller

Safety System

1. Whole vehicle automatically balance leveling real-time test;

2. Outrigger auto leveling, basket auto leveling;

3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time;

4. When people on basket, outrigger operation is locked, can't operate,  to prevent damage happened;

5. Emerngecy pump is installed to prevent emergency situation.

































【Customers Feedback】

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
