JMC 3 tons chiller freezer van reefer trucks for sale

- JMC 3 tons chiller freezer van truck
- Insulation Box: 4050x1900x1900mm
- Refrigeration unit: -16℃ ~ 0℃
- Jiangling 77HP Euro2 diesel engine
- 6+1 pcs 6.50R16 radial tires
Description
Description

【Contact Us】

Chengli Special Automobile Co.,Ltd

Whatsapp +8618307220638

E-mail: [email protected]

Http://www.cnclwgroup.com

Add: South Suburb Chengli Automobile Industry Park,Suizhou City,Hubei Province,China



【Chassis Parameters】

JMC 3 tons chiller freezer van truck adapts China "Jiangxi ISUZU" -- JMC single cab chassis, condition new, 3 seats, 3360mm wheelbase, Jiangling 77HP Euro 2 dieseI engine, Manual 5-speed transmission, 6.50R16 radial tires, with one spare tire, 1.5 Ton front axle, 3.0 Ton rear axle, hydraulic brake, etc.

Chassis brand options: ISUZU chiller freezer van truck, Sinotruk HOWO chiller freezer van truck, Foton chiller freezer van truck, FAW chiller freezer van truck, Dongfeng chiller freezer van truck, JAC chiller freezer van truck, SHACMAN chiller freezer van truck, SAIC-HONGYAN-IVECO chiller freezer van truck, Changan chiller freezer van truck, etc.



【Upper Structure Parameters】

JMC 3 tons chiller freezer van truck: Insulation box size 4050x1900x1900mm, large box volume;  insulation box material outer and inner plate are FRP panel, middle with 80mm insulation layer; Refrigeration unit of chiller freezer van truck is -16℃ cooling capacity.

Refrigeration unit brand options of chiller freezer van truckk: American import brand Thermo King, Carrier brand;   China brand Hanxue, Kauxue, Huatai, Bingli, etc.



Model CLW5041XLCJX2 chiller freezer van truck
Chassis brand JMC
Wheeldrive 4x2
New or Used New
Overall dimension(mm) 5995x2150x2950
Insulation box dimension(mm) 4050x1900x1900
Material of Insulation box Sanwitch structure: FRP panel + 80mm insulation + FRP panel
Refrigeration unit
China brand or Themro King Carrier -16℃~ 0 ℃
Gross weight(kg) 4495
Curb weight(kg) 2600
Load Weight(kg) 1795
Wheelbase(mm) 3360
Engine power Jiangling 77HP Euro2
Fuel type DieseI
Transmission Manual 5- speed
Brake Hydraulic brake
Axle load(front/rear) 1.5T / 3.0T
Tire 6+1 pcs, 6.50R16 radial tires
Max speed 90km/h

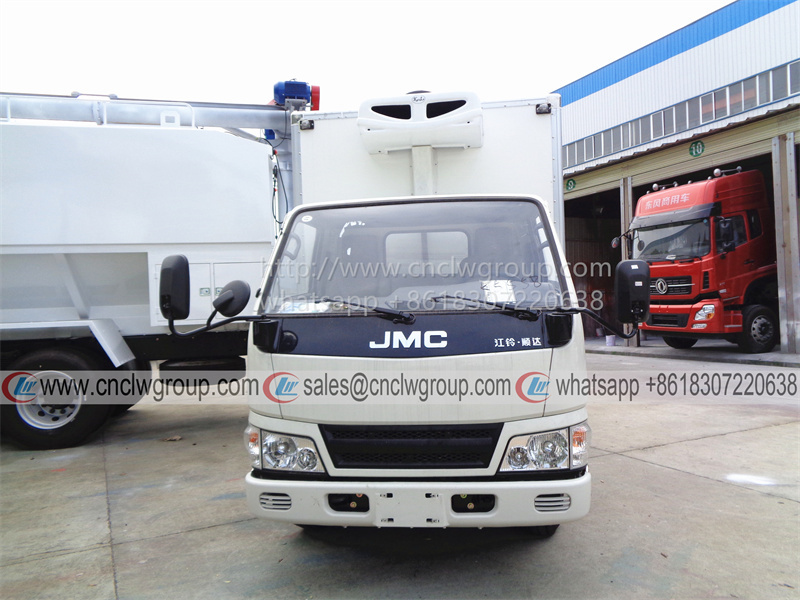

JMC 3 tons chiller freezer van truck

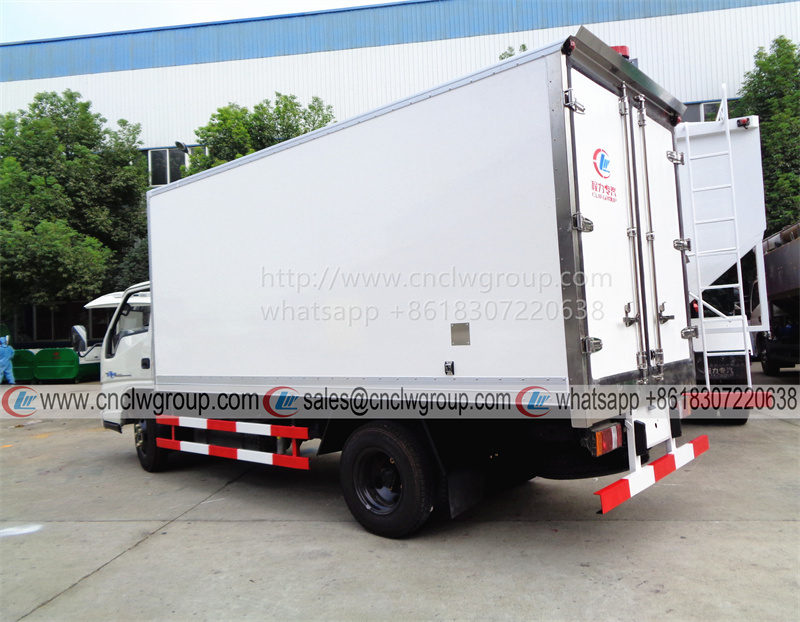

JMC 3 tons chiller freezer van truck

JMC 3 tons chiller freezer van truck

Main structures of JMC 3 tons chiller freezer van truck

Different devices and configurations you can choose for your JMC 3 tons chiller freezer van truck

the additional items specially for JMC 3 tons chiller freezer van truck

- For chiller freezer van truck load capacity, we have 1 ton chiller freezer van truck, 2~3 tons chiller freezer van truck, 3~5 tons chiller freezer van truck, 6~8 tons chiller freezer van truck, 8~10 ton chiller freezer van truck, 10~15 ton chiller freezer van truck,15-20 ton chiller freezer van truck,20-25 ton chiller freezer van truck,25-30 ton chiller freezer van truck,over 30 tons chiller freezer van truck

- For freezer box truck truck brand, we have dongfeng freezer box truck,foton freezer box truck,isuzu freezer box truck,howo freezer box truck, shacman refrigerated truck,jmc refrigerated truck,jac refrigerated truck,kama refrigerated truck,iveco refrigerated truck,clw refrigerated trucks,hino refrigerated truck,benz refrigerated truck,volvo refrigerated truck,etc.

- For reefer van truck box length, we can produce from 2 meters to 16 meters long truck type or trailer type.

If you need small refrigerated truck or van, please contact us freely.

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
