JMC 4x2 Boom Truck with XCMG 2 Ton Knuckle Crane

JMC  4x2 90HP Euro2 truck
Gross weight: 4495kg
Load: 2-3 tons
Transmission: 5-speed manual gearbox
Tir: 6+1 pcs  7.00R16 radial tire
Crane Max Lifting Weight: 2 tons crane
Crane type: telescopic straight arm, 2 section
Max lifting height: 10.6 met

【Chassis Parameters】

JMC 4x2 chassis, double cabin, 3+3  seats, condition new, 3360mm wheelbase, 90HP Euro2 dieseI engine, 5-speed transmission, 7.00R16 radial tires, with one spare tire, 2 ton front axle, 4 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

  • Cargo box: 2400x1880x350mm
  • Crane capacity: XCMG SQZ32 2 tons crane
  • Crane type: articulated knuckle arm, 2-section extension boom
    • Max lifting height: 7.5 meters
  • Max working radiu: 5 meters


【Vehicle Basic Parameters】

Model CLW5043JSQJX3
Chassis brand JMC
New or Used New
Overall dimension 5995x2000x2950mm
Cargo box 2400x1880x350mm
Gross weight 4495kg
Curb weight 3400kg
Load 2-3 tons
Wheelbase 3360mm
Engine power 77HP or 90HP
Fuel type DieseI
Transmission 5-speed
Brake Hydraulic brake
Axle load 2/4 (tons)
Tire 6+1 pcs, 7.00R16 radial tires
Max speed 90km/h

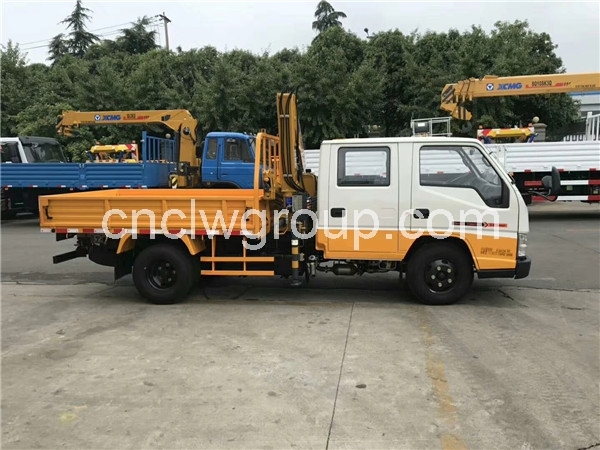

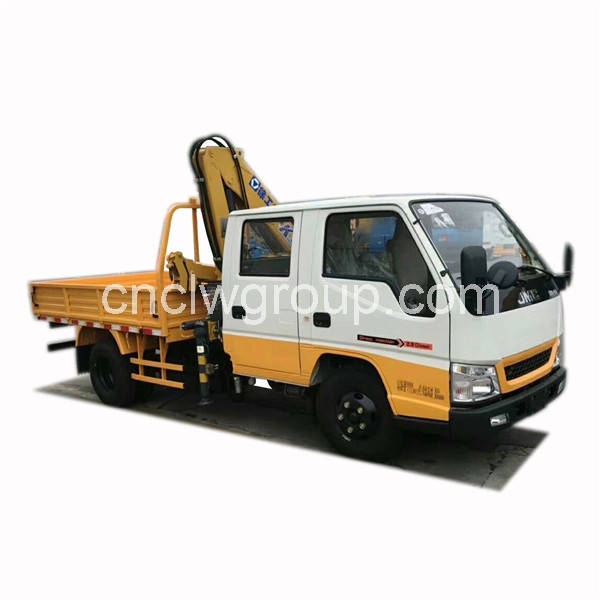

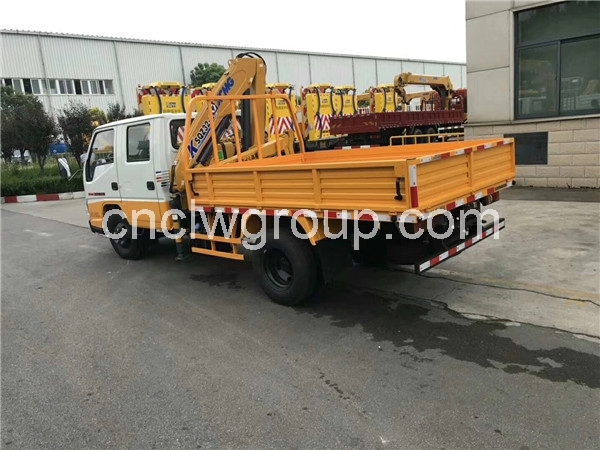

【Multi-directional Pictures】

【Crane Parameters】

Model SQZ32
Brand XCMG
New or Used New
Max lifting weight 2 tons
Max torque 32 kN.m
Max lifting height 7.5m
Max working radius 5m
Slewing angle 360 degree
Outrigger Front hydraulic extension outrigger
Control Double side linkage operation
Special Remote throttle, leveling bubble, etc


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
