NEW DESIGN ISUZU 26m Telescopic Aerial Work Manlift Basket Truck Good Price

- ISUZU 26m aerial work manlift truck
- ISUZU 190HP Euro5 engine
- 26m working height, 360° slewing
- Basket 200kg load, 360° slewing
- Fiberglass insulated bucket
- 4 pcs hydraulic outriggers
- Remote controlled + manual levers

【Chassis Parameters

Chassis parameters of ISUZU 26m manlift with basket truck: Isuzu new cab chassis, condition new, 3 seats, 3815mm wheelbase, ISUZU 190HP Euro5 dieseI engine, Manual 6-speed transmission, 235/75R17.5 tires, with one spare tire, 4 ton front axle, 7 ton rear axle, air brake, power assist steering, with air conditioning, etc.


【Upper Structure Parameters】

Superstructure parameters of ISUZU 26m manlift with basket truck: Aerial work trucks refer to special vehicles that transport people and equipment to the scene and perform aerial operations. It has straight telescopic arm aerial truck and knuckle arm aerial truck.

  • /Straight arm boom system, 4 section.

/Maximum working height 26 meters.

  • /Turntable 360° slewing.
  • /Basket 200kg load, size 1200x750x1140mm,  360° rotary.
  • Stainless steel basket, or Insulated bucket, fiberglass bucket(optional)
  • /Control operation: computer + manual control levers + wireless remote control box(optional)
  • /4 pcs hydraulic outriggers.
  • /Engineering rotary lights to warn people.


Vehicle Basic Specifications
Vehicle Model  CLW5100JGKQ5 Maximum Working Height  26 meters
Chassis brand ISUZU 4x2 New or Used  Condition new
Overall dimension 7650x2280x3400mm Cargo Box Dimension  -
Gross weight 9995 kg Rated Weight  -
Curb weight 5860 kg Wheelbase  3815mm
Axle No. 2 Cab Seat No. 3
Axle Load 4000/7000 kg Fuel Type Diesel
Engine ISUZU 4HK1 190HP Euro5 Steering System LHD, power aissist steering
Transmission Manual 6- speed Clutch Single dry clutch plate
Brake Air brake Tire No. 6 +1 pcs
Front/Rear Suspension - Tire Model 235/75R17.5
Fuel Tank 100 liter Battery 24V
Max speed 90km/h
Superstructures Parameters
Model CLW GK16S Maximum Working Height 26 meters
Boom Type 4-section arm, telescopic arm Maximum Working Radius 16.5 meters
 Basket Dimension 1200x750x1200 mm Slewing Angle 360° continually rotary
 Basket Load 200kg  Outrigger Front V rear H shape hydraulic legs
Basket Slewing 360°  Outrigger Span

Horizontal 4.2 meter, Vertical 4.0 meters

Operation System

One set at down turntable position,   one set on upper basket.

Optional:  computer control system + wireless remote controller

Safety System

1. Whole vehicle automatically balance leveling real-time test;

2. Outrigger auto leveling, basket auto leveling;

3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time;

4. When people on basket, outrigger operation is locked, can't operate,  to prevent damage happened;

5. Emerngecy pump is installed to prevent emergency situation.

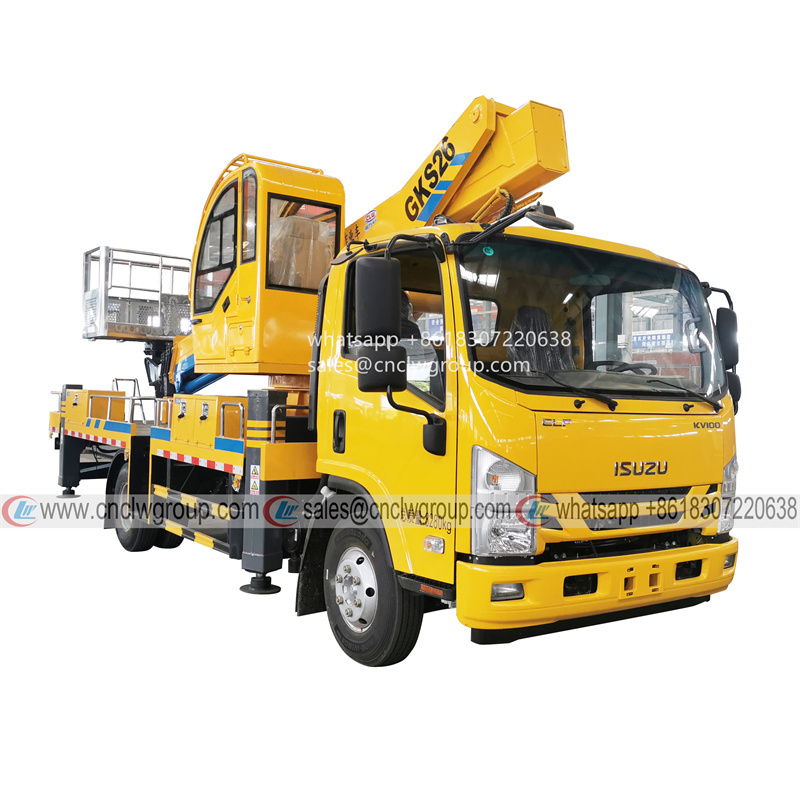

ISUZU 26m manlift with basket truck

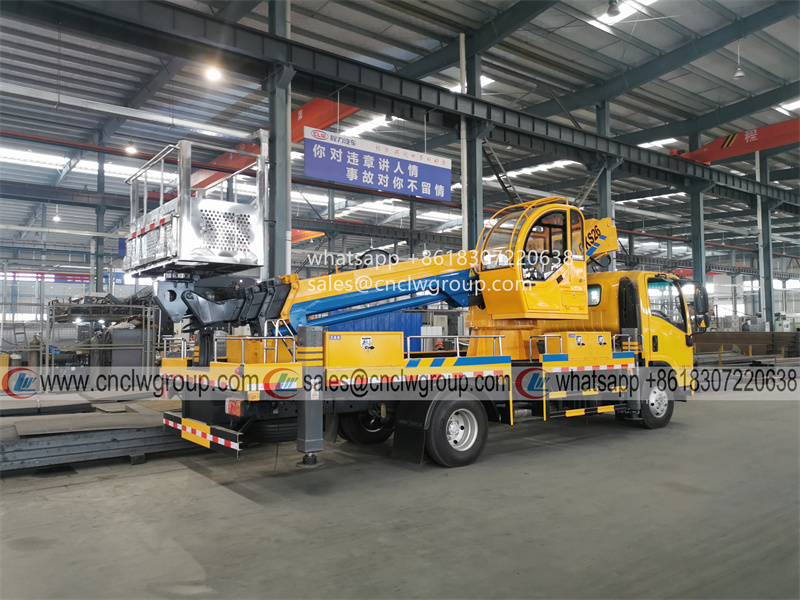

ISUZU 26m manlift with basket truck

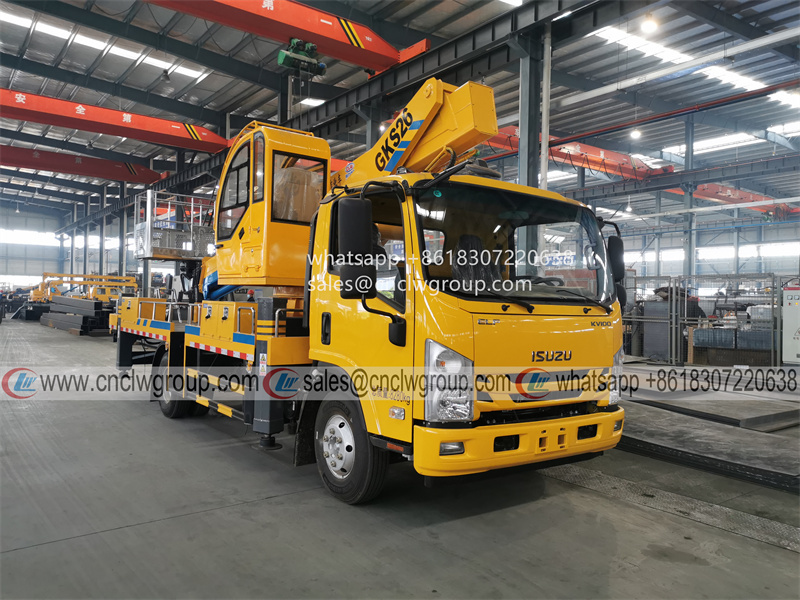

ISUZU 26m manlift with basket truck

【Customers Feedback】

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
