Water Sprinkler Truck, also called water truck, sprinkler truck, water bowser, water tank truck, water delivery truck, is a kind of sanitation vehicle which has a tank body, manhole cover, water pump, front/rear/side sprinkler nozzles, water cannon and discharge valves, work platform, etc. Water truck can be used for watering tree, grass, cleaning street, dust control, water delivery, emergency fire fighting, etc.
【Chassis Parameters】
Cab chassis of ISUZU GIGA VC61 6x4 25000 liter water tanker bottle cart sprinkler truck, VC61 GIGA new cabin, condition new, 3 seats with a sleeper, 4565+1370mm wheelbase, ISUZU 6WG1-TCG52 420HP Euro5 dieseI engine, FAST manual 12-speed transmission, 10+1 pcs 315/80R22.5 tires, with one spare tire, 7 ton front axle, 2x13 ton rear axle, air brake, power assist steering, with air conditioning, etc.
【Upper Structure Parameters】
Superstructure of ISUZU GIGA VC61 6x4 25000 liter water tanker bottle cart sprinkler truck
- Chengli produced water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;
- 25,000 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole, rear with a platform and ladder;
- with 60m3/h flow water pump;
- with front/rear/side water spraying nozzles, water spraying range 12-16 meters; with a water cannon, spraying range 28 meters;
Specifications of ISUZU GIGA VC61 6x4 25000 liter water tanker bottle cart sprinkler truck:
Vehicle Parameters | Model | CLW5330GSSQ5 |
New or Used | New | |
Overall dimension | 10350x2500x3250mm | |
Gross weight | 33000kg | |
Curb weight | 11200kg | |
Chassis Parameters | Chassis brand | ISUZU |
Wheelbase | 4565+1370mm | |
Engine power | 420HP | |
Cab | VC61 GIGA new cabin, 3 seats, with a sleeper, with air conditioning, power window, central lock, multi purpose steering wheel, multi purpose dashbaord | |
Transmission | Manual, 12-speed forward and 2 reversinf | |
Front Axle | 7 Ton | |
Rear Axle | 2x 13T , double mount heavy duty | |
Brake | Air brake, exhaust brake | |
Tire | 10+1 pcs, 315/80R22.5 | |
Max speed | 90km/h | |
Engine | Brand | ISUZU 6WG1-TCG52 |
Power | 308kW / 420HP | |
Displacement | 15681cc | |
Emission standard | Euro 5 | |
Superstructure | Tank volume | 25,000 liter |
Tank material | Carbon steel with anti-corrosion treatment | |
Front spraying | 2 pcs nozzles, manual or auto controlled | |
Rear spraying | 2 pcs nozzles, manual or auto controlled | |
Side spraying | 2 pcs nozzles, manual or auto controlled |
|
Water cannon | 1 pcs, 360° slewing, shot 28-35 meters | |
Shot of spraying nozzle | 12 - 16 meters | |
Valve | 2 pcs, discharge valve + fire hydrant joint |

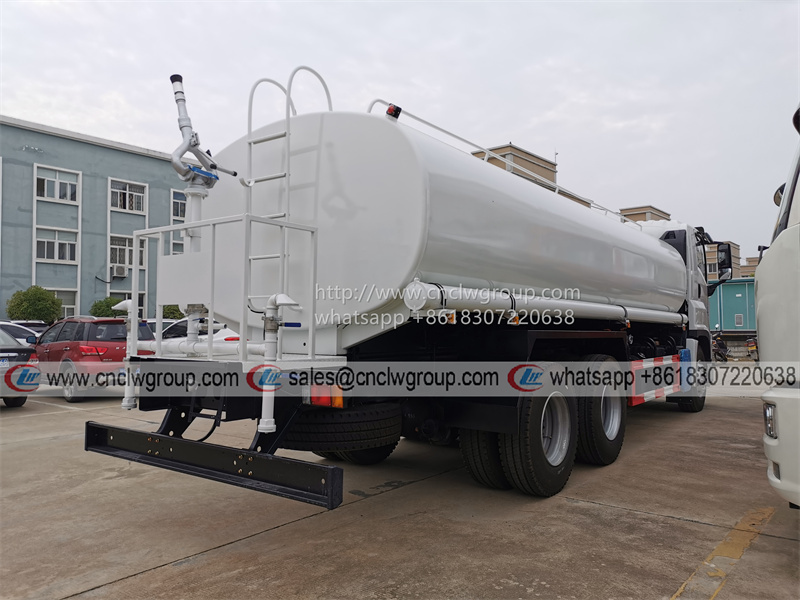

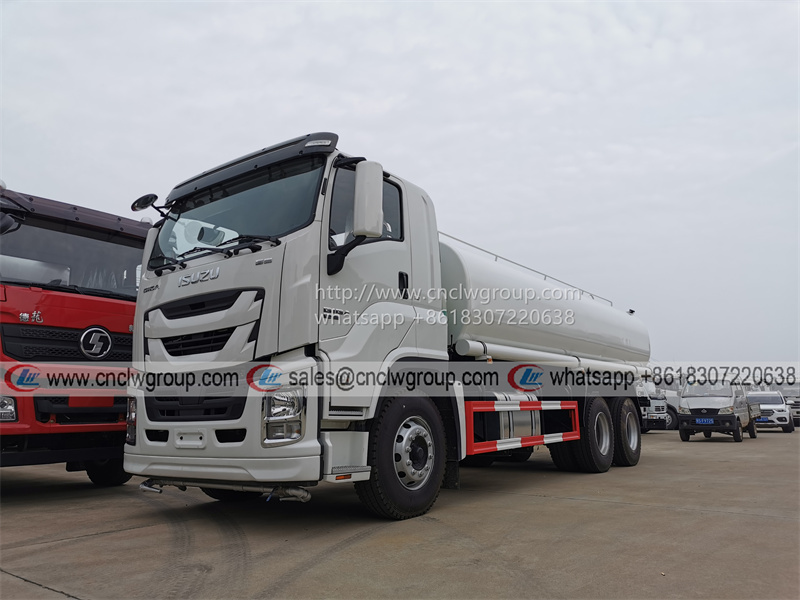

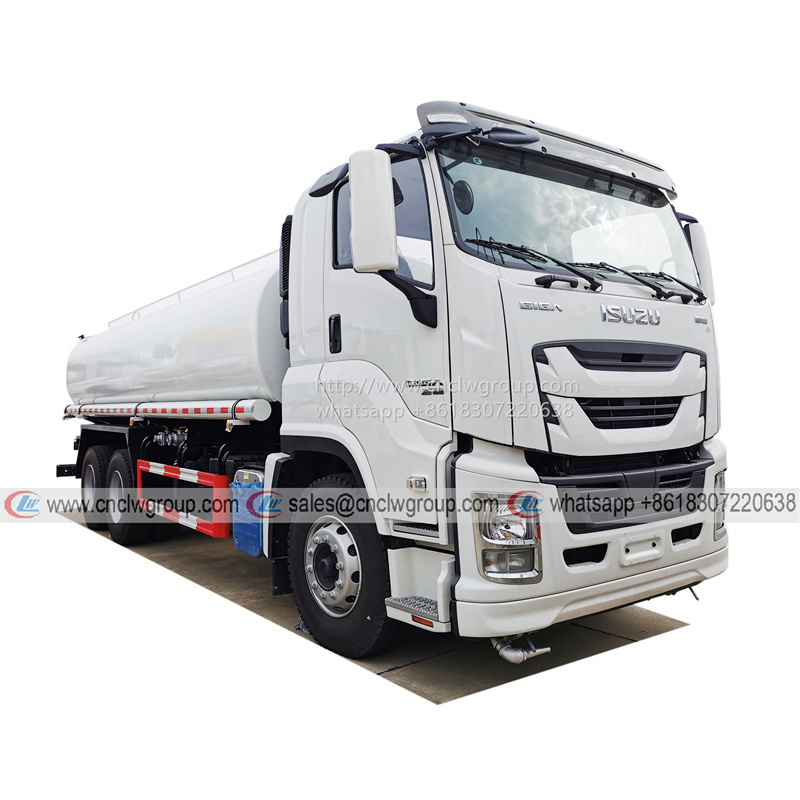

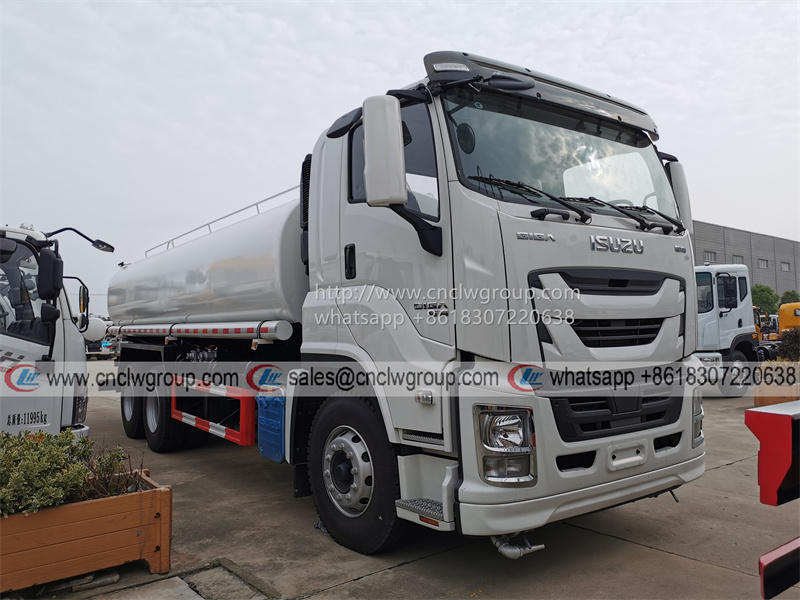

[Multi-directional Images of ISUZU VC61 25000 liter Water Tanker Bottle Cart Sprinkler Truck]
ISUZU GIGA VC61 6x4 25000 liter water tanker bottle cart sprinkler truck
Brand New HOWO 6x4 25000 liter water storage tank bowser truck
Brand New HOWO 6x4 25000 liter water storage tank bowser truck
Water filling method of ISUZU GIGA VC61 6x4 25000 liter water tanker bottle cart sprinkler truck:
Manufacture process of ISUZU GIGA VC61 6x4 25000 liter water tanker bottle cart sprinkler truck
Packing list of ISUZU GIGA VC61 6x4 25000 liter water tanker bottle cart sprinkler truck
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
