SHACMAN 6x4 Tractor with 16 ton arcitulated Crane

SHACMAN 6x4 400HP Euro3 truck
Gross weight: 25000kg
Load: 20 tons
Transmission: 9-speed manual gearbox
Tir: 10+1 pcs 10.00-20 nylon tire
Crane lifting capacity: 16 tons
Crane type: articulated arm or knuckle arm
Max lifting height: 16.8m
Description
Description

【Chassis Parameters】

SHACMAN F3000 6x4 tractor head with crane, condition new, 3800+1400mm wheelbase, Weichai 400HP Euro2 dieseI engine, 10-speed transmission, 12.00R20 radial tires, with one spare tire, 9 ton front axle, 2x 16 ton rear axle, air brake, power assist steering, with air conditioning, 90# saddle, towing weight 50-70 tons, etc.



【Upper Structure Parameters】

SHACMAN F3000 6x4 tractor head with crane: CLW SQ16ZA4 16 tons articulated arm crane, 5-section arm, max lifting height 15.7m, max working radius 13.5m, 360° slewing, double side operation, with remote throttle, lighting, leveling bubble, etc.



Vehicle Basic Parameters:

Model CLW5250JSQD3
Chassis brand SHACMAN
New or Used New
Overall dimension 7890x2500x3800mm
Gross weight 25000kg
Curb weight 16000kg
Tracting weight 50 tons
Wheelbase 3800+1350mm
Engine power 300HP, 340HP, 400HP, 420HP optional
Fuel type DieseI
Transmission 10-speed
Brake air brake
Axle load 9/2x 16 tons
Tire 10+1 pcs, 12.00R20
Max speed 90km/h



Multi-directional Pictures:

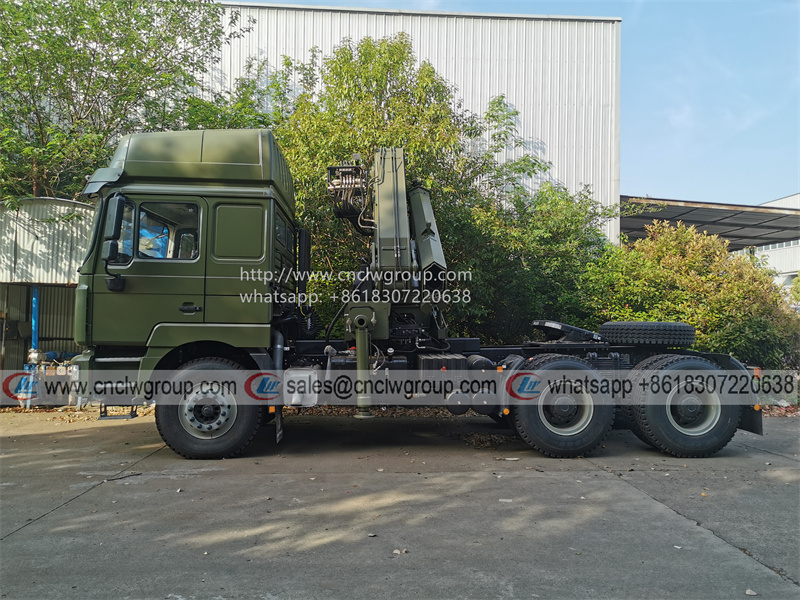

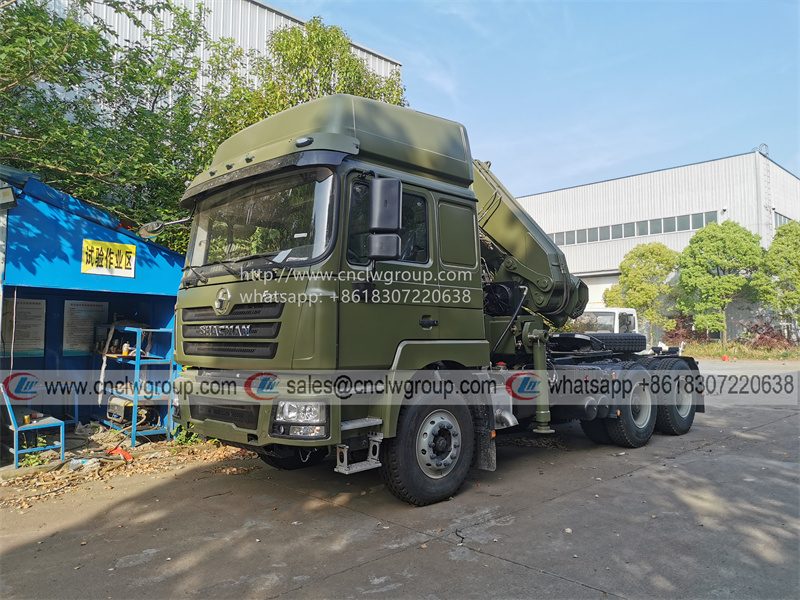

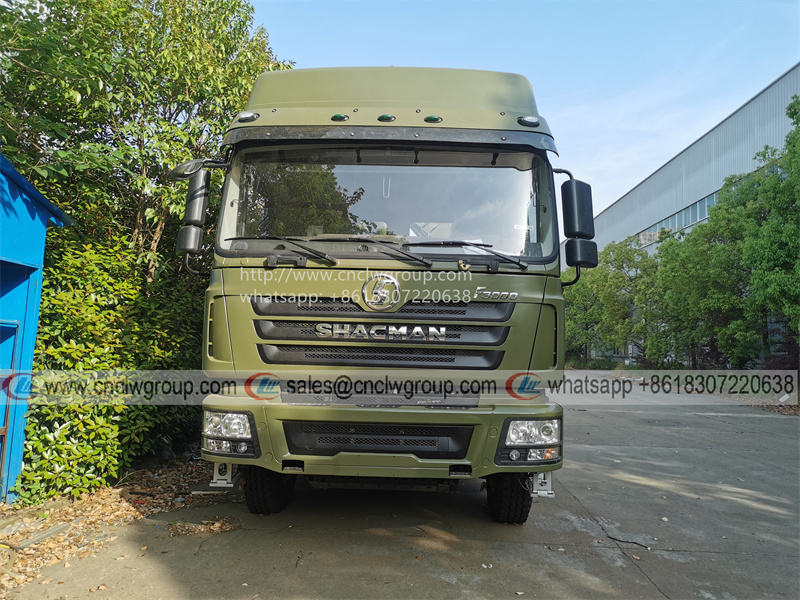

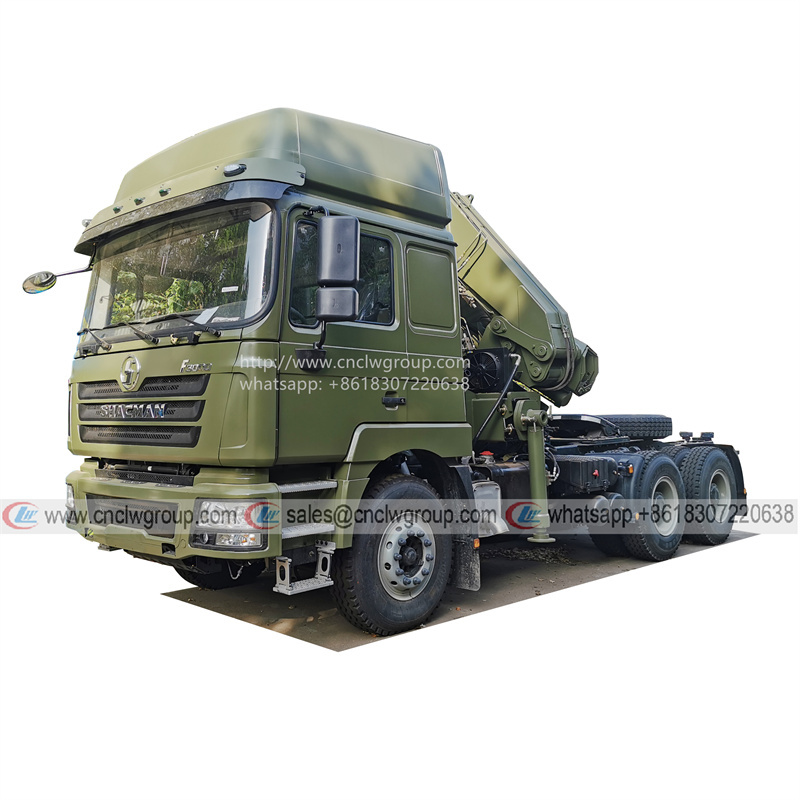

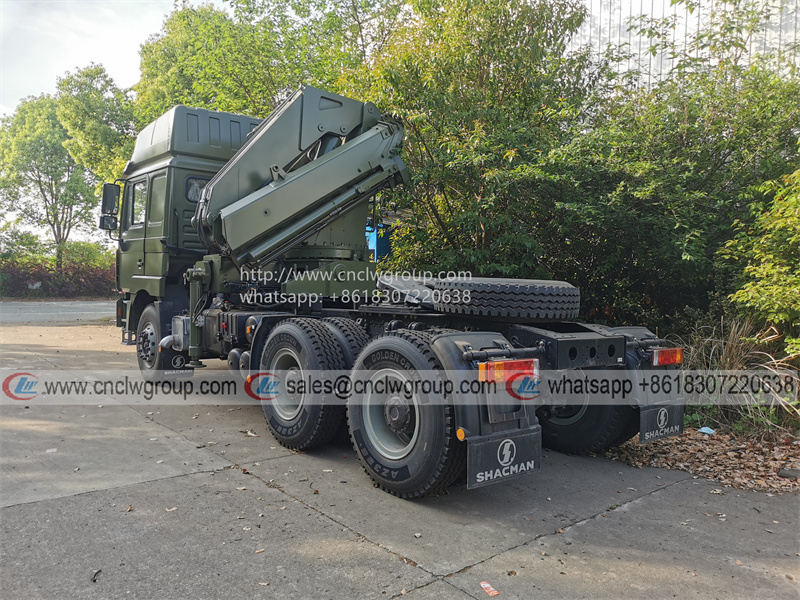

SHACMAN F3000 6x4 tractor head with crane

SHACMAN F3000 6x4 tractor head with crane

SHACMAN F3000 6x4 tractor head with crane

Crane Parameters:

Model SQ16ZA4
Brand CLW
New or Used New
Max lifting weight 16 tons
Max torque 400 kN.m
Max lifting height 15.7m
Max working radius 13.5
Recommand oil pressure 28MPa
Oil flow 63L/min
Oil tank volume 200L
Slewing angle 360 degree
Outrigger span 2300mm ~ 7300mm
Outrigger Front hydraulic extension outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc

 More REAL Usages of Tractor head with crane:

Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System

In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.

◆Training Service

Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.

◆Warranty Commitment

Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.

◆24 Hours Service

The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.

◆Rescue Service

When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.

◆Customer Return Visit

Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.

Order Process

     ①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.

     ②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).

     ③: Arrange production: Our company arranges workshop production according to the contract requirements.

     ④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!

Answers to the Questions that Customers Care About before Purchasing?

(1) Free maintenance plan and period?

1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.

(2) What is the price method of free post-parts supply?

1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.

(3) After-sales service method?

The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.

(4) Technical training program?

The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.

(5) How to transport and load the vehicle?

According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.

(6) What is the time to pick up the car at the factory?

Self-pick-up time: Monday to Sunday, 08:00-19:00 (some self-pick-up points work hours from 9:00-18:00, in case of national holidays, the press release time shall prevail. focus on)

(7) Can't we go to China abroad? Want to see the car to see the factory how to do?

We can let users see the general situation of offices, factories, production scenes, and factories through video calls and shooting videos, and help foreign customers understand us. For users who order vehicles, they can watch the vehicle appearance, function demonstration videos, and other details through video inspection, so that users can grasp their order production progress and situation in real time. We will create high-quality and personalized special vehicles for each user according to the actual needs of users. You are welcome to visit the production strength and product technology on the spot, and we will provide you with the best service!

As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
