【Chassis Parameters】
Dongfeng 6x4 chassis, condition new, 4600+1350mm wheelbase, Yuchai 240HP Euro3 dieseI engine, 9-speed transmission, 10.00-20 nylon tires, with one spare tire, 5 ton front axle, 2x 10 ton rear axle, air brake, power assist steering, etc.
【Upper Structure Parameters】
CLW SQ12SA3 12 tons articulated arm crane, 4-section arm, max lifting height 12.8m, max working radius 10.2m, 360° slewing, double side operation, with remote throttle, lighting, leveling bubble, etc.
Vehicle Basic Parameters:
Model | CLW5250JSQD3 |
Chassis brand | Dongfeng |
New or Used | New |
Overall dimension | 10250x2500x3850mm |
Cargo box | 7200x2300x550mm |
Gross weight | 25000kg |
Curb weight | 12500kg |
Load | 20 tons |
Wheelbase | 4600+1350mm |
Engine power | 240HP or 260HP or 300HP optional |
Fuel type | DieseI |
Transmission | 9-speed |
Brake | air brake |
Axle load | 5/2x 10 tons |
Tire | 10+1 pcs, 10.00-20 |
Max speed | 90km/h |

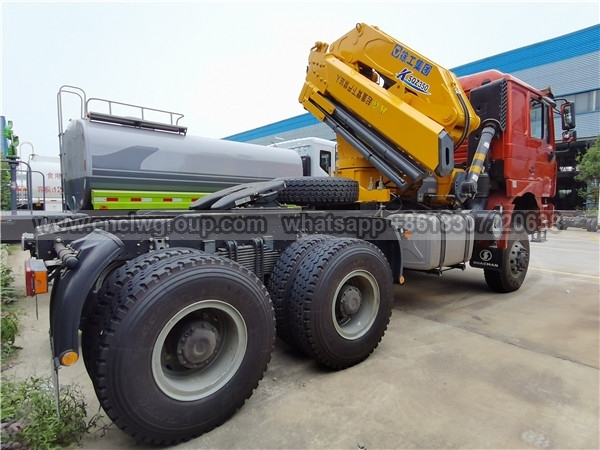

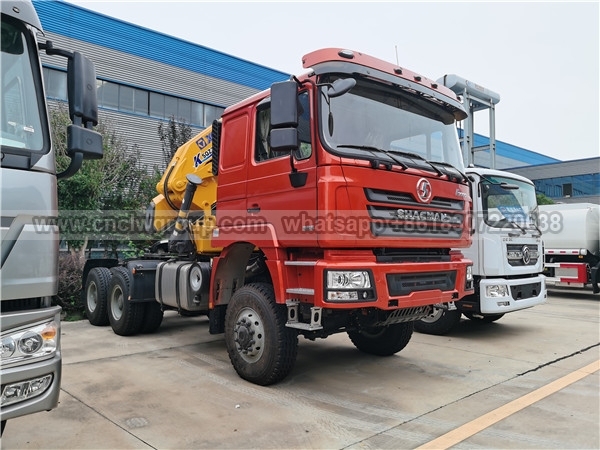

Multi-directional Pictures:
Crane Parameters:
Model | SQ12SA3 |
Brand | CLW |
New or Used | New |
Max lifting weight | 12 tons |
Max torque | 270 kN.m |
Max lifting height | 12.8m |
Max working radius | 10.2 |
Recommand oil pressure | 28MPa |
Oil flow | 50L/min |
Oil tank volume | 180L |
Slewing angle | 360 degree |
Outrigger span | 2200mm ~ 5400mm |
Outrigger | Front hydraulic extension outrigger |
Control | Double side linkage operation |
Special | Remote throttle, lighting, leveling bubble, etc |
As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
