SHACMAN 7m3 asphalt distributor spraying truck

- Truck brand:SHACMAN
- Volume:7000L
- Spraying width: 4.5 meter
- Nozzle no.:34 pcs,one control one
- Medium:Hot asphalt, emulsified asphalt, SBS modified asphalt.
- Whatsapp/mob:+8618307220638
- Email:[email protected]
- Http://www.cnclwgroup.

One. Performance Parameters of the Whole Asphalt Distributor Truck

◆ Product model: CLW5120GLQSX2

◆ Chassis brand and model: SHACMAN, condition new

◆ Spreading width: 4500mm

◆ Asphalt spreading amount: 0.25~3.5L/m2

◆ Heating method: Italian imported diesel burner heating (100,000 kcal/hour)

◆ Spray medium: hot asphalt, emulsified asphalt, SBS modified asphalt.

◆ Spreading error: ±2%

◆ Asphalt tank capacity: 7000L

◆ Number of nozzles and control method: 34 intelligent nozzles, one control and one

◆ Dimensions: 7330×2300×2750mm

Basic Vehicle Parameters of SHACMAN Asphalt Distributor Trucks:

Vehicle Basic Specifications
Model CLW5120ZZXSX2
Chassis brand SHACMAN
Wheeldrive 4x2
New or Used New
Overall dimension(mm) 6998x2300x2700
Gross weight(kg) 11995
Curb weight(kg) 6850
Load Weight(kg) 5150
Wheelbase(mm) 3800
Engine power Yuchai 140HP
Fuel type DieseI
Transmission Manual 8- speed
Brake Air brake
Axle load(front/rear) 3.2 tons / 9 tons
Tire 6+1 pcs, 8.25R20 radial tires
Max speed 90km/h

Two. Main Vehicle Parameters:

Item Name Model, Specifications
Chassis brand SHACMAN
Engine Yuchai 140HP Euro3 diesel engine
Wheelbase 3800 mm
Asphalt tank volume 7000 liter
Insulation material thickness 40 mm
Outer cover stainless steel thickness 1 mm
PTO Asphalt distributor truck dedicated use
Hydraulic pump CBQ550-L
Proportional valve EFRD-G03-160
Asphalt pump motor
Asphalt pump QGB680
Spray nozzle no. 34 pcs intelligent nozzles (one control one)
hand-held spray gun
5 meter long with steel hose
Burner Italy imported G20 (100000 kal/hour)
Heat transfer oil pump
Heat transfer oil pump motor
380V-2.2KW-2 poles
Control system
Cab touch screen computer + rear working platform control (spare)
Speed sensor
Temperature Controller
Generator 6kW petrol generator

Three. Equipment Sse and Brief Introduction of Asphalt Distributor:

CLW5080GLQ5 asphalt distributor is an intelligent automatic high-tech product for professionally distributing emulsified asphalt, diluted asphalt, hot asphalt, high-viscosity modified asphalt. It is used for the spraying of permeable oil, waterproof layer and adhesive layer for the construction of high-grade highway asphalt pavement bottom layer. The spreader is composed of an automobile chassis, an asphalt tank, an asphalt pumping and spraying system, a heat transfer oil heating system, a hydraulic system, a combustion system, a control system, a pneumatic system, and an operating platform. The car is easy to operate. On the basis of absorbing various technologies of similar products at home and abroad, it has increased the quality and technical content of construction and highlighted the humanized design of improving construction conditions and construction environment. Its reasonable and reliable design ensures the uniformity of asphalt distribution, the computer control is stable and reliable, and the technical performance of the whole vehicle has reached the world advanced level. The car can work under harsher conditions after all aspects of our company's improvement.

Three. Performance Characteristics of SHACMAN Asphalt Distributor Truck:
1. The vehicle adopts SHACMAN light chassis, with flexible and light maneuverability and beautiful appearance, providing safe, efficient and reliable services for intercity logistics customers;

2. According to the needs of spraying amount and working width, the computer can make any combination of determinant nozzles;

3. Both manual and automatic control methods can realize the individual control of each nozzle, thus realizing the arbitrary adjustment of the width of spraying;

4. The asphalt spraying control can not only be completed in the cab through the intelligent touch screen computer, but also can be controlled on the operating platform at the rear of the vehicle;

5. The automatic control system of the car can measure the speed of the vehicle and automatically calculate the rotation speed of the asphalt pump according to the input spraying amount, spraying width and asphalt type, and then automatically adjust the pumping number of the asphalt pump through the system;

6. The heating system adopts the burner imported from Italy, with automatic ignition and temperature control functions;

7. The international advanced high-viscosity asphalt pump is adopted, which can pump the external asphalt into the tank to realize "self-priming", and can also pump the asphalt in the tank;

8. The key parts of the whole machine (such as hydraulic pump, hydraulic motor, asphalt pump QGB680, proportional valve EFBG-03-160-HF, automatic control system CLW-34-01, etc.) are all internationally renowned components to ensure that the whole machine reliability and improve service life;

9. Under the premise of ensuring that it does not hinder the maintenance and disassembly of other parts, various parts of the ladder and handrails are arranged for easy operation;

10. All heat pipes have thermal insulation layers on the outside to reduce heat dissipation and avoid scalding operators;

11. The vehicle-mounted rapid heating system (10-15℃/h) can improve the heating efficiency and reduce the auxiliary construction time to ensure the spraying temperature;

12. The asphalt spraying rod adopts a three-section folding structure. Double or multiple spraying can be realized by moving the spraying rod up and down. By moving the spraying rod left and right, the spraying range can be expanded, and obstacles can be effectively avoided;

13. The manual spraying function can make the asphalt sprayed through the hand nozzle, which is flexible and convenient, and is suitable for small-scale and corner construction conditions. Get the gun in hand. Open the main oil outlet valve, open the transfer valve, open the oil return valve, and use the oil return valve to adjust the pressure of the spray gun;

14. There is a sedimentation sewage tank inside the asphalt tank, and a liquid level display and alarm and safety devices are installed;

15. Nozzle flushing This function can blow out the remaining asphalt of the nozzle through diesel fuel and high-pressure air to prevent the asphalt from freezing in the nozzle, which can greatly improve the service life of the nozzle. Close the main oil outlet valve, oil return valve, open the pneumatic valve, open the self-priming valve and open the nozzle in turn;

16. A good thermal insulation layer can ensure that the static thermal insulation performance index is less than or equal to 12 ℃ / 8 hours, and it is anti-corrosion and durable;

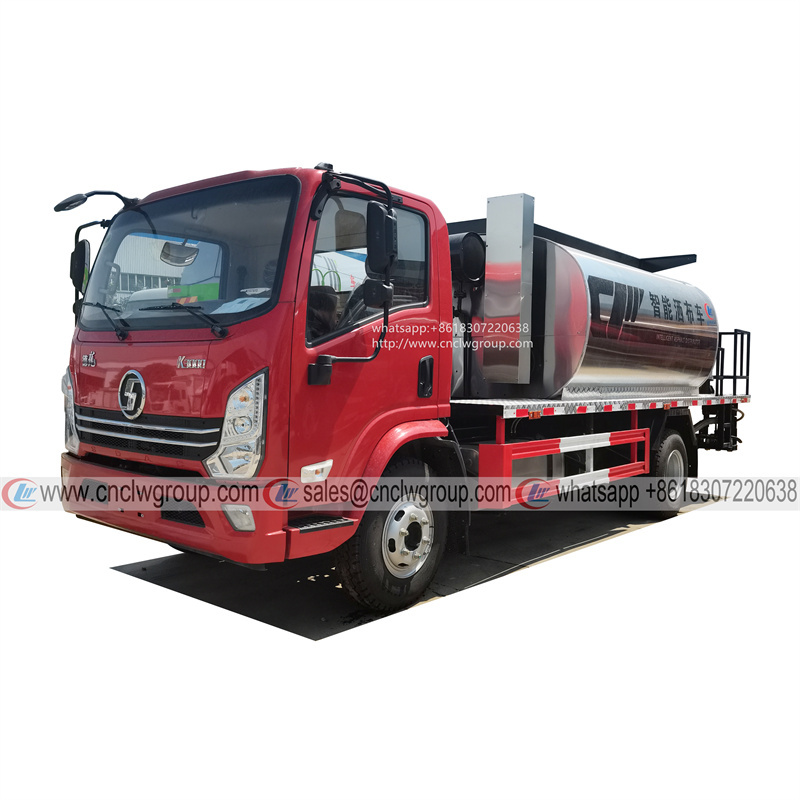

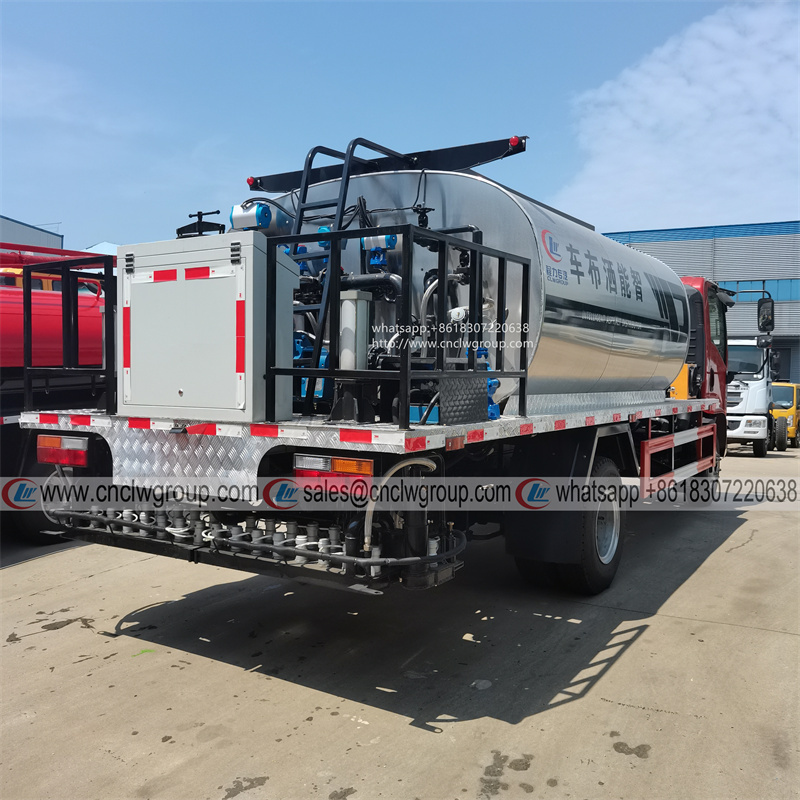

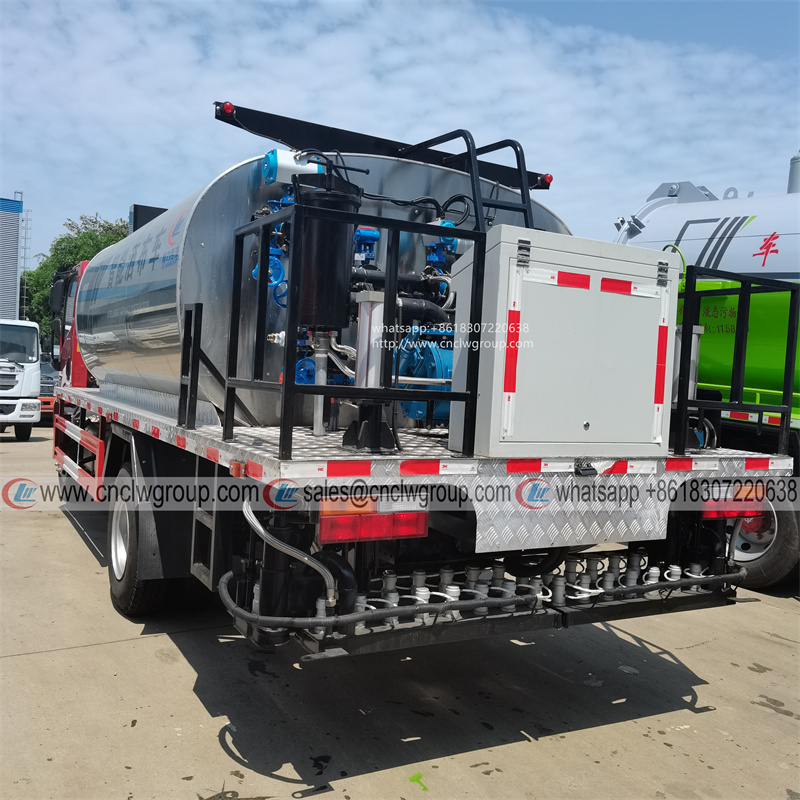

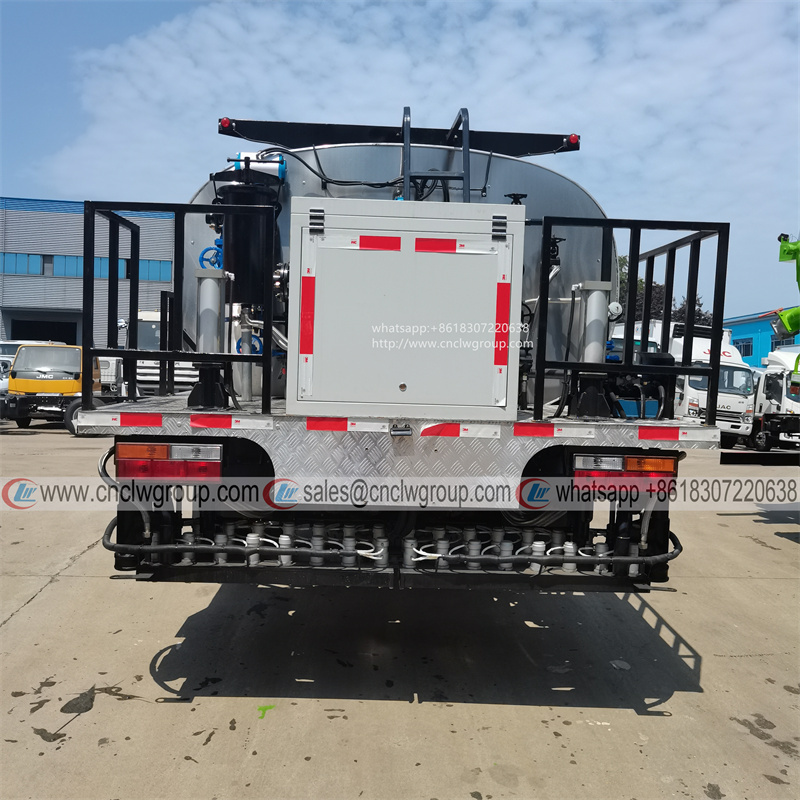

Four. Reference Photos of SHACMAN Asphalt Distributor Trucks:

Five. Real Application Cases of Asphalt Distributor Trucks:

Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System

In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.

◆Training Service

Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.

◆Warranty Commitment

Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.

◆24 Hours Service

The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.

◆Rescue Service

When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.

◆Customer Return Visit

Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.

Order Process

     ①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.

     ②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).

     ③: Arrange production: Our company arranges workshop production according to the contract requirements.

     ④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!

Answers to the Questions that Customers Care About before Purchasing?

(1) Free maintenance plan and period?

1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.

(2) What is the price method of free post-parts supply?

1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.

(3) After-sales service method?

The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.

(4) Technical training program?

The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.

(5) How to transport and load the vehicle?

According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.

(6) What is the time to pick up the car at the factory?

Self-pick-up time: Monday to Sunday, 08:00-19:00 (some self-pick-up points work hours from 9:00-18:00, in case of national holidays, the press release time shall prevail. focus on)

(7) Can't we go to China abroad? Want to see the car to see the factory how to do?

We can let users see the general situation of offices, factories, production scenes, and factories through video calls and shooting videos, and help foreign customers understand us. For users who order vehicles, they can watch the vehicle appearance, function demonstration videos, and other details through video inspection, so that users can grasp their order production progress and situation in real time. We will create high-quality and personalized special vehicles for each user according to the actual needs of users. You are welcome to visit the production strength and product technology on the spot, and we will provide you with the best service!


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
