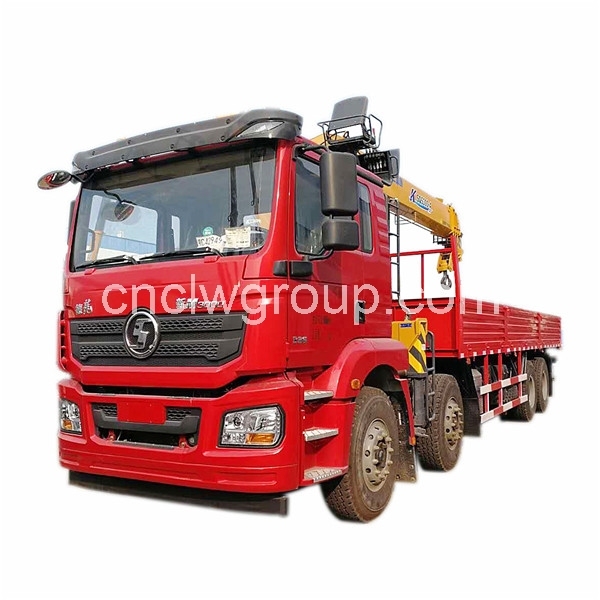

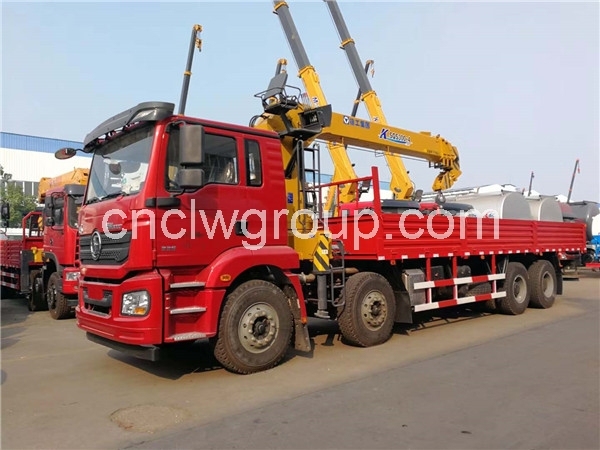

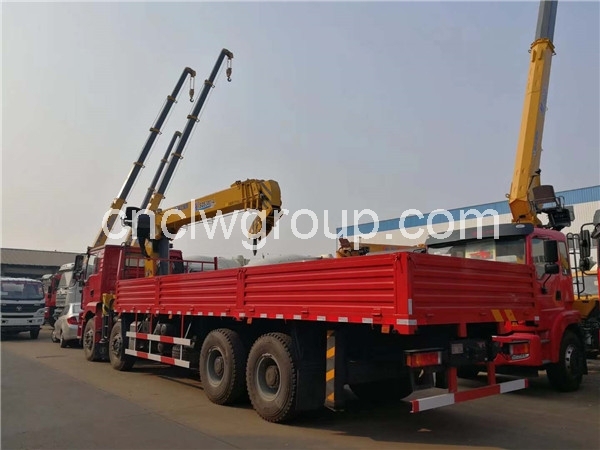

SHACMAN 8x4 12 Ton Truck Mounted Crane

SHACMAN 8x4 336HP Euro3 truck
Crane: XCMG 12 tons crane
Gross weight: 39000kg
Tir: 12+1 pcs 12.00R20 radial tire
Max lifting height: 13 meter
Max working radius: 10.4 meter
Description
Description

【Chassis Parameters】

SHACMAN M3000 8x4 chassis, condition new, 5775+1400mm wheelbase, WEICHAI 336HP Euro3 dieseI engine, 10-speed transmission, 12.00R20 radial tires, with one spare tire, 9.5 Ton front axle, 2x 16 Ton double-mounted wheel reduction rear axle, air brake, power assist steering, air conditioning, etc.



【Upper Structure Parameters】

XCMG SQS300-4 12 tons crane, 4-section arm, max lifting height 13m, max working radius 10.4m, 360° slewing, double side operation, with remote throttle, radiator, lighting, leveling bubble, etc.



【Vehicle Basic Parameters】

Model CLW5311JSQSX3
Chassis brand SHACMAN
New or Used New
Overall dimension 11850x2500x3850mm
Cargo box 8000x2300x550mm
Gross weight 39000kg
Curb weight 14500kg
Load 25 tons
Wheelbase 5775+1400mm
Engine power WEICHAI 336HP
Fuel type DieseI
Transmission FAST 10-speed
Brake air brake
Axle load 9.5/2x 16 tons
Tire 10+1 pcs, 12.00R20 radial tires
Max speed 90km/h



【Crane Parameters】

Model SQS300
Brand XCMG
New or Used New
Max lifting weight 12 tons
Max torque 300 kN.m
Max lifting height 13m
Max working radius 10.4
Slewing angle 360 degree
Front Outrigger Front hydraulic extension outrigger
Rear Outrigger Hydraulic outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc



As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
