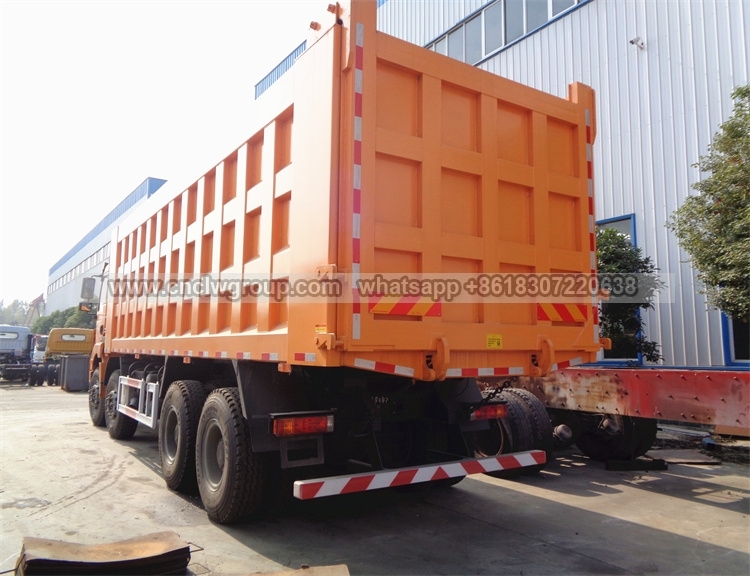

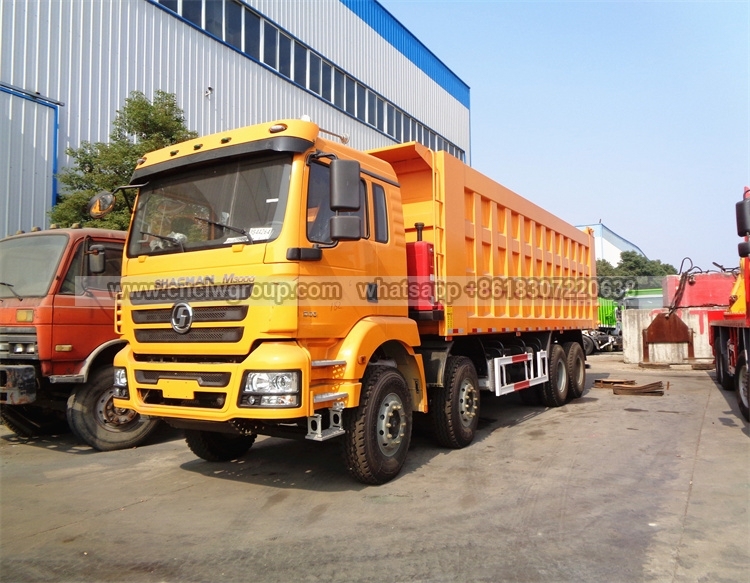

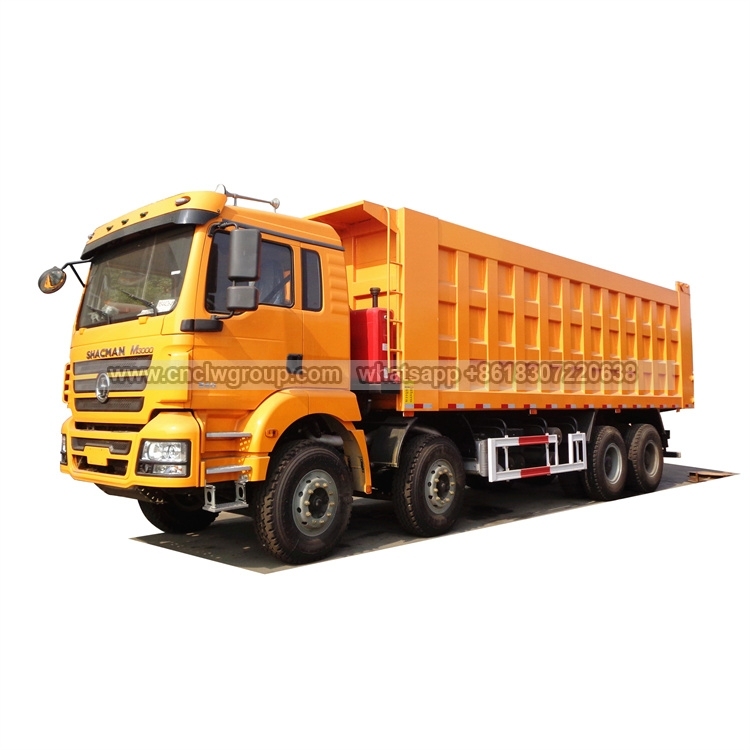

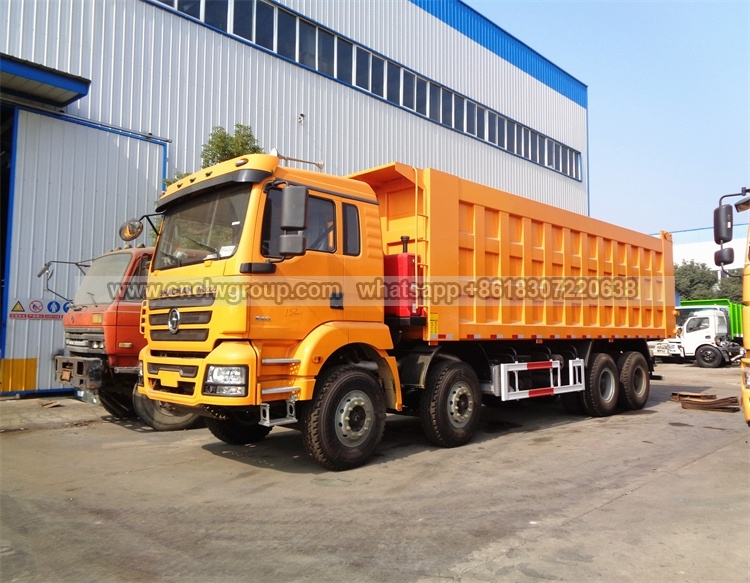

SHACMAN 8x4 Dump Truck

- SHACMAN 8x4 40 TON Dump Truck
- WEICHAI 340HP Euro2 engine
- MAN 9.5 Ton  /  2 x MAN 16 Ton
- 12+1 pcs 12.00R20 radial tires
- Dump Box: 7200x2300x1500mm
- Unloading method of dump box: Front lifting hydraulic cylinder
Description
Description

【Contact Us】

Chengli Special Automobile Co.,Ltd

Whatsapp/WeChat:+8618307220638

E-mail: [email protected]

Http://www.cnclwgroup.com

Add: South Suburb Chengli Automobile Industry Park, Suizhou City, Hubei Province, China



【Chassis Parameters】

SHACMAN 8x4 heavy cab chassis, condition new, M3000 new cabin, 3 seats with half sleeper, 1800+3375+1400mm wheelbase, WEICAHI WP10.340E32 340HP dieseI engine, Shaanxi Fast 10JSQ180 10-speed transmission, 12+1 pcs 12.00R20 radial tires, with one spare tire, MAN 9.5 Ton front axle, 2x MAN 16 Ton double reduction rear axle, air brake, power assist steering, with air conditioning, etc.



【Upper Structure Parameters】

Dump box size 7200x2300x1500mm, total 24.84 cubic meter box volume;  dump box material 6mm side wall, 8mm floor plate; dump box front lifting hydraulic cylinder, dumping angle 45°; control inside cabin, can lift box, down box, stop box.



Model CLW5310ZZXSX2
Chassis brand Shaanxi SHACMAN
Wheeldrive 8x4, LHD
New or Used New
Overall dimension(mm) 9860x2550x3300
Dump box dimension(mm) 7200x2300x1500
Material of dump box carbon steel, 6mm side, 8mm floor
Unloading method of dump box
Front lifting hydraulic cylinder
Designed GVW ≤ 65 tons
Curb weight(kg) 15600
Load Weight(kg) 40-45 tons
Wheelbase(mm) 1800+3375+1400
Engine power WEICHAI WP10.340 340HP Euro2
Fuel type DieseI
Transmission Shaanxi Fast 10JSQ180, manual 10- speed
Brake Air brake
Axle load(front/rear)

MAN 9.5 tons

2x MAN 16 tons

Tire 12+1 pcs, 12.00R20 radial tires
Max speed 90km/h





As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
