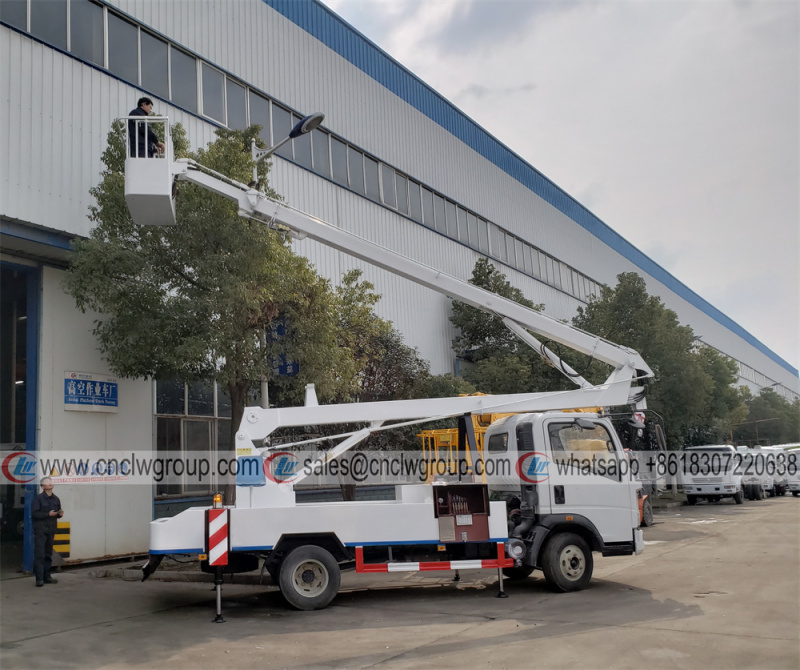

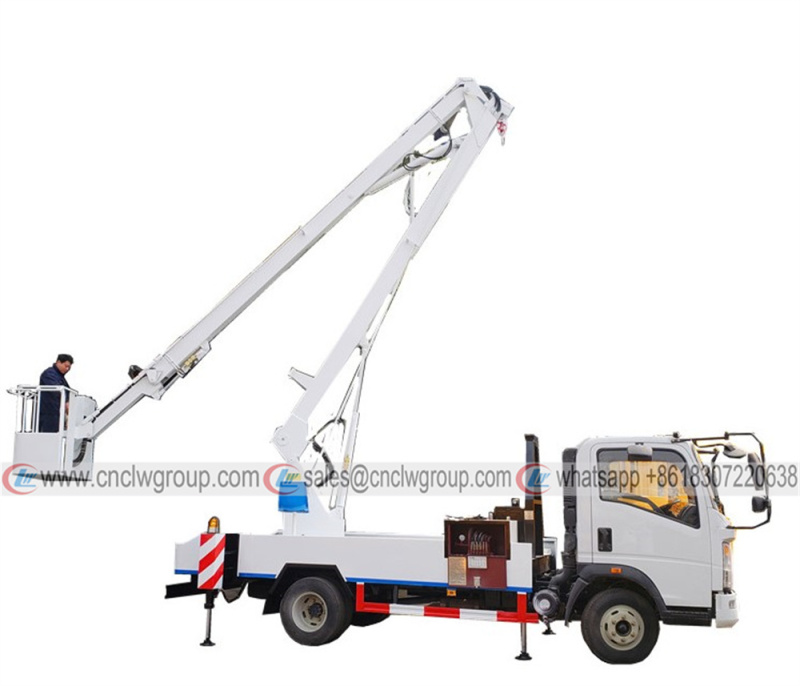

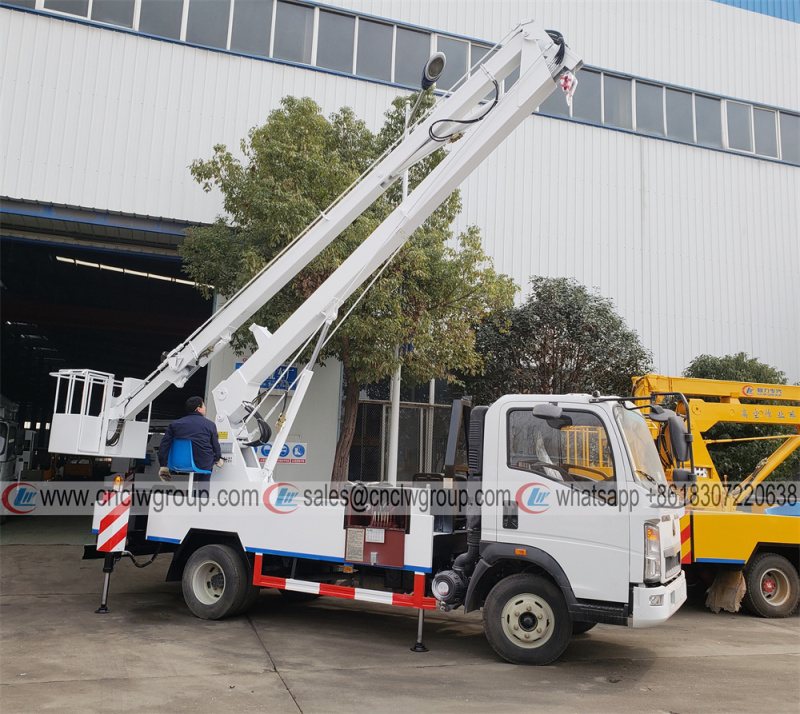

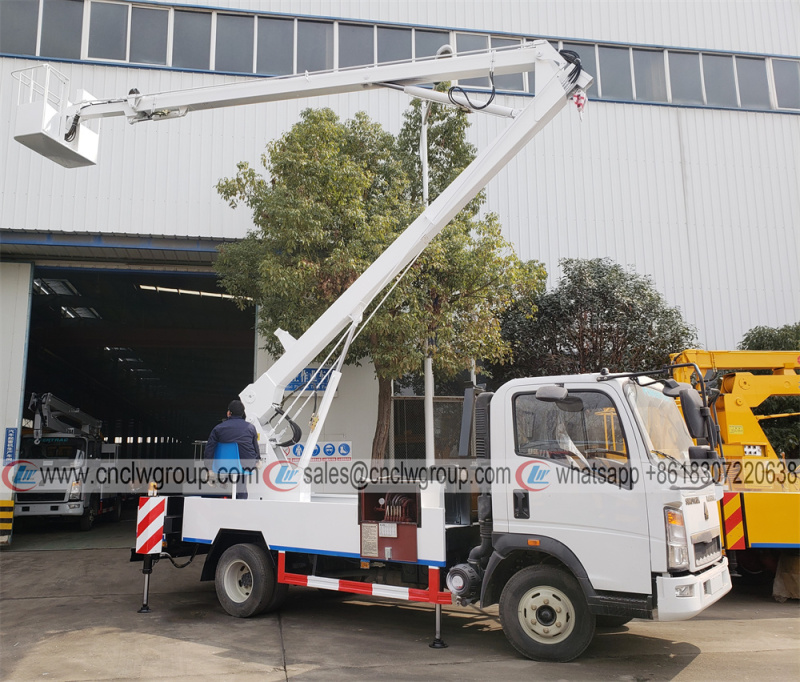

Sinotruk HOWO Euro4 18m Aerial Work Platform Truck

- HOWO 4x2 Single Cab Euro4 18m folding aerial bucket truck
- Cummins 141HP Euro4 diesel engine
- 18m working height, 360° slewing
- Basket 200kg load, ±90° rotary
- 4 pcs hydraulic outriggers
Description
Description

【Chassis Parameters】

Sinotruk HOWO single cab chassis, LHD(left hand drive), condition new, 3 seats, 3360mm wheelbase, Cummins 141HP Euro4 dieseI engine, WLY Manual 6-speed transmission, 7.00R16 radial tires, with one spare tire, 2.4 ton front axle, 4.2 ton rear axle, air brake, power assist steering, air conditioning, etc.



【Upper Structure Parameters】

Knuckle arm aerial bucket trucks refer to special vehicles that transport people and equipment to the scene and perform aerial operations. It has straight telescopic arm aerial truck and knuckle arm aerial truck.

  • Knuckle arm boom system, 3 section
  • Maximum working height 18 meters
  • Turntable 360° slewing
  • Basket 200kg load, size 1000x760x1100mm,  ±90° rotary
  • Control operation: at turntable seat and in basekt
  • 4 pcs hydraulic outriggers
  • Engineering rotary lights to warn people



Vehicle Basic Specifications
Vehicle Model CLW5081JGKZZ2 Maximum Working Height 18 meters
Chassis brand Sinotruk HOWO 4x2 New or Used  Condition new
Overall dimension 7850x2400x3250mm Cargo Box Dimension  -
Gross weight 8500 kg Rated Weight  -
Curb weight 6850 kg Wheelbase 3800 mm
Axle No. 2 Cab Seat No. Dobule cabin, 3+3 people
Axle Load 2700/7200 kg Fuel Type Diesel
Engine Cummins 141HP Euro4 Steering System LHD, power aissist steering
Transmission Manual 6-speed Clutch Single dry clutch plate
Brake Air brake Tire No. 6 +1 pcs
Front/Rear Suspension - Tire Model 8.25R16 radial tires
Fuel Tank 120 liter Battery 24V
Max speed 90km/h
Superstructures Parameters
Model CLW GKZ18 Maximum Working Height 18 meters
Boom Type 3-section arm, telescopic arm Maximum Working Radius 7.4 meters
 Basket Dimension 1000x760x1100 mm Slewing Angle 360°
 Basket Load 200kg  Outrigger Front H rear H shape hydraulic legs
Basket Slewing ± 90 degree Outrigger Span

Horizontal 3.4 meter, Vertical 3.8 meters

Operation System

One set at down turntable position,  one set on upper basket.

Safety System

1. Outrigger leveling bubble;

3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time;

4. When people on basket, outrigger operation is locked, can't operate,  to prevent damage happened;

5. Emerngecy pump is installed to prevent emergency situation.



























































Customer's Feedback

vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
