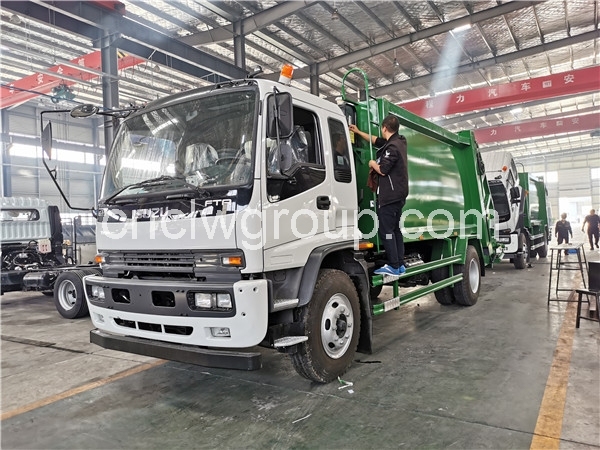

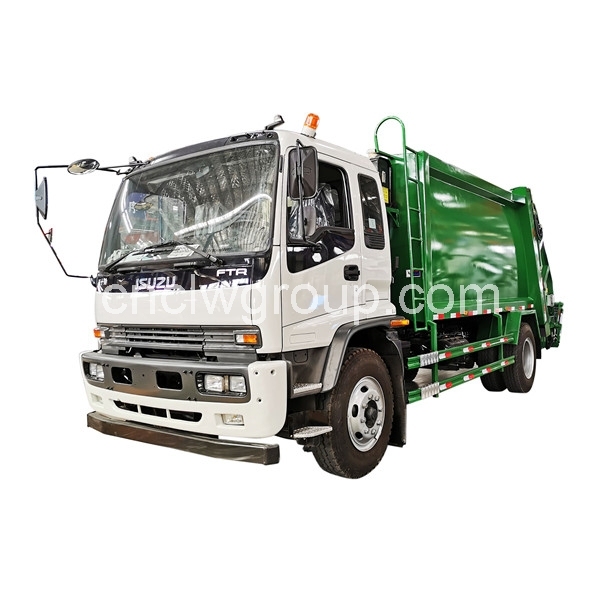

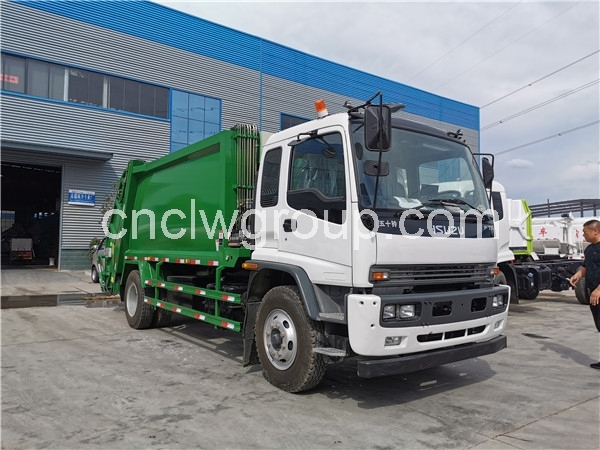

ISUZU 10cbm Garbage Compactor Truck

ISUZU FTR 4x2 205HP Euro5 truck
MLD 6-speed transmission
10.00R20 radial tire
10m3 volume, 4mm side wall, 4mm bottom plate
Rear waste bin flip device, intelligent control system+manual control+inside cab controlled

【Chassis Parameters】

Famous brand Japan ISUZU FTR chassis, condition new, 4500mm wheelbase, Qingling ISUZU 205HP Euro5 dieseI engine, MLD 6-speed transmission, 10.00R20 tires, with one spare tire, 6.3 ton front axle, 13 ton rear axle, power assist steering, with air conditioning, etc.


【Upper Structure Parameters】

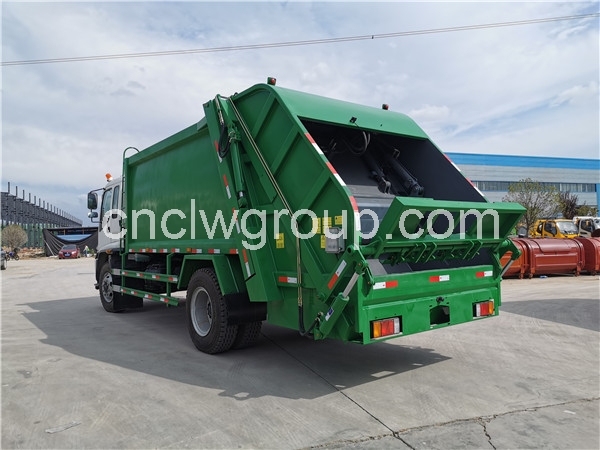

Chengli produced garbage compactor body, with 10 cubic meter volume box, rear with waste bin flip device, can flip 120L/240L/660L waste bins, control panel+manual lever+inside cab controlled.


Model CLW5160ZYSQ5
Chassis brand ISUZU
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 7450x2500x2960mm
Gross weight 16000kg
Curb weight 8900kg
Load 8-10 tons
Wheelbase 4500mm
Engine power Qingling ISUZU 205HP Euro5
Fuel type DieseI
Transmission MLD 6-speed
Brake hydraulic brake
Axle load 6.3 tons/13 tons
Tire 6+1 pcs, 10.00R20 radial tires
Max speed 90km/h


【Structures & Features of Chengli Garbage Compactor】
