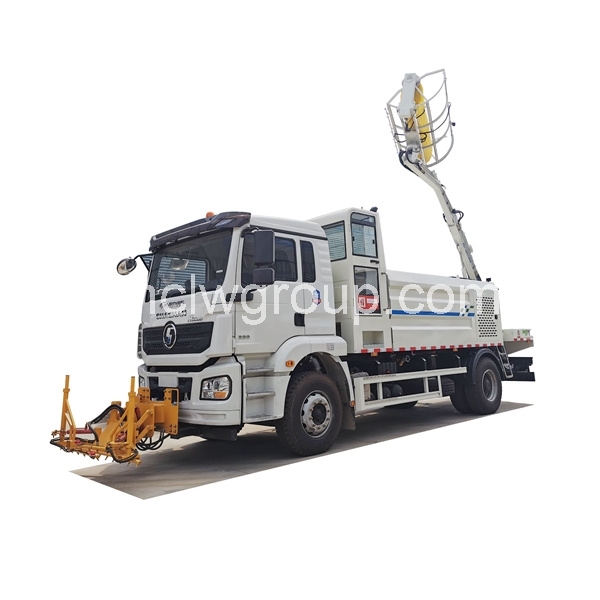

SHACMAN Tunnel Wall Cleaning Truck

- SHACMAN 4x2 tunnel cleaning truck
- WEICHAI 240HP engine
- 9-speed transmission
- 11.00R20 radial tire
- Water tank volume: 10m3
- Sweeping roller: 2000mm width, can rotate and change angle
- Lifting boom: 3 section knuckle arm, 360° slewing
Description
Description

【Chassis Parameters】

SHACMAN 4x2 signle cab chassis, condition new, 4600mm wheelbase, WEICHAI 240HP Euro3 dieseI engine, RTD-11509C manual 9-speed transmission, 11.00R20 raidal tires, with one spare tire, HANDE 5.5 ton front axle, HANDE 11.5 ton rear axle, full air brake, power assist steering, with air conditioning, etc.



【Upper Structure Parameters】

- Cleaning water tank volume: 10,000 liter, square tank body is made of stainless steel or carbon steel steel, 3mm side, 4mm bottom.

- High pressure water pump: one pcs

- Cleaning boom system:  with a 3-section knuckle arm lifting boom, 360° slewing, at end of lifting boom installed with a 2000mm width sweeping brush roller, maximum lifting height 6m, maximum working radius can reach 4.5m, mainly used for washing and cleaning tunnel walls, high-speed isolation fence, road isolation fence, isolation wall, etc..

- Special:  at sweeping brush roller, installed with 4-8 pcs high pressure water nozzles, with 3 pcs cameras at lifting boom and sweeping roller to monitor the situation during working.



Model CLW5180TQXSX3
Chassis brand SHACMAN
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 8620x2500x3850mm
Gross weight 18000kg
Curb weight 11500kg
Load 10 tons
Wheelbase 4600mm
Engine power WEICHAI 240HP Euro3
Fuel type DieseI
Transmission Manual, Shaanxi Fast RTD-11509C  9-speed gearbox
Brake Full air brake
Axle load HANDE 5.5 tons / HANDE 11.5 tons
Tire 6+1 pcs, 10.00R20 radial tires
Max speed 90km/h

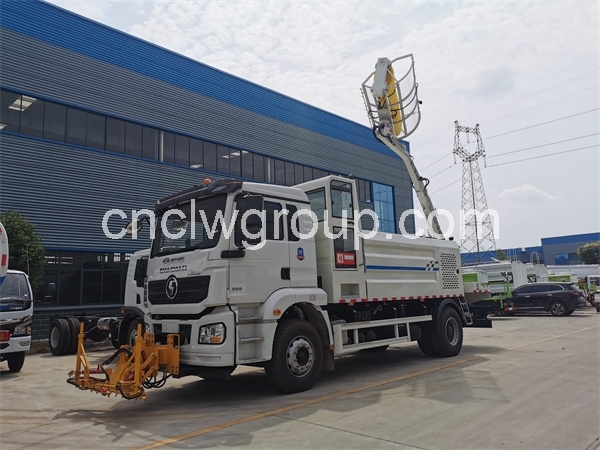

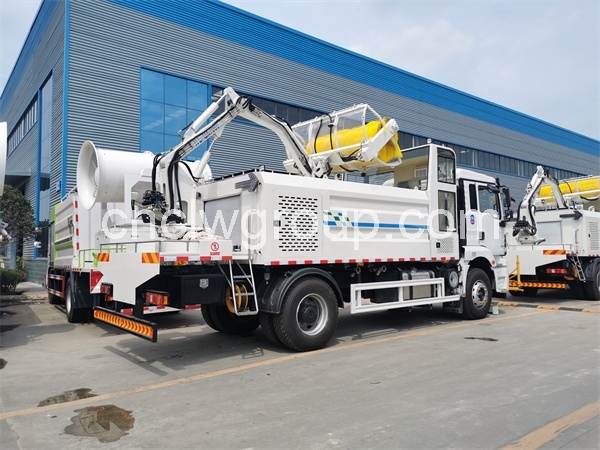

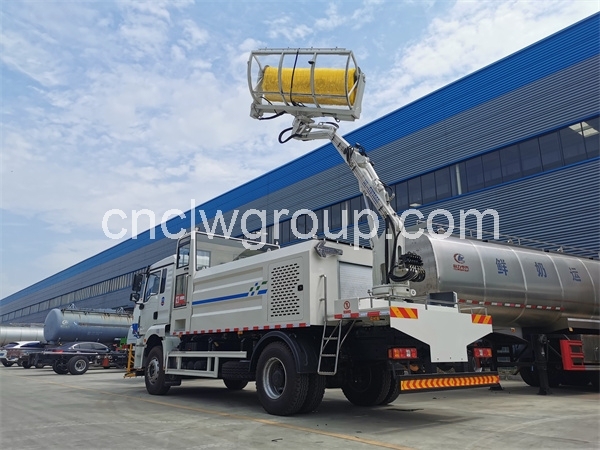

【Real Cases of Tunnel Cleaning Truck】
