HOWO 8m3 Road Sweeper Truck

- Sinotruk HOWO 4x2 Road Sweeper Trruck
- YUCHAI 140HP Euro3 engine
- 8.25R20 radial tire
- 5.5cbm dust tank + 2.5cbm water tank
- Sweeping width 3.2 meters
- Suction garbage maximum size is DN120mm
- Usage site: street, factory, community, airport,

【Chassis Parameters】

Sinotruk HOWO 4x2 cab chassis, single row, condition new, 4200mm wheelbase, YUCHAI 140HP Euro3 dieseI engine, WLY 6-speed transmission, 8.25R20 radial tires, with one spare tire, 3.2 ton front axle, 8 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

The overall volume of HOWO road sweeper truck is 8 cubic meters, 5.5 cubic meters of dust tank, 2.5 cubic meters of water tank, Jiangling 57KW auxiliary engine with engine (one year warranty); Italian cycloid motor; French Schneider control switch; Taiwan solenoid valve group; stainless steel water tank; stainless steel trash can; brush The arm rotation uses the engineering spacer without butter; precision cold-formed seamless hydraulic oil pipe; Hangzhou Weilong sprinkler pump; tail LED arrow light; manual pump emergency system.


Model CLW5140TSLZZ2
Chassis brand Sinotruk HOWO
New or Used New
Overall dimension 7860x2420x3250mm
Gross weight 13580kg
Curb weight 8500kg
Load 6-8 tons
Wheelbase 4200mm
Engine power YUCHAI 140HP Euro2
Fuel type DieseI
Transmission Manual WLY 6-speed
Brake air brake
Axle load 3.2 tons / 8 tons
Tire 6+1 pcs, 8.25R20 radial tires
Max speed 90km/h
Tank Body Dust tank 5.5 cbm, stainless steel tank
Water tank 2.5 cbm, stainless steel
Sweeping system
Sweeping brush disc Per side 2 pcs, total 4 pcs
Dust suction plate Under rear of truck, with 2 suction inlet
Free maintenance fan machine Powerful fan machine to provide suction pressure
Auxuliary engine Jiangling 77HP auxuliary engine
Motor Sanyang motor
Control switch Schneider control switch
Solenoid valve Hyprius solenoid valve group
Hydraulic oil pump Changyuan
Water pump Xinshanxi
LED arrow lights Two pcs at rear of truck
Maximum Sweeping Width 2.8 ~ 3.2 meters
Maximum suction garbage size DN120 mm
Maximum sweeping capacity 50,000 m2/h
Driving speed when working 0-20 km/h

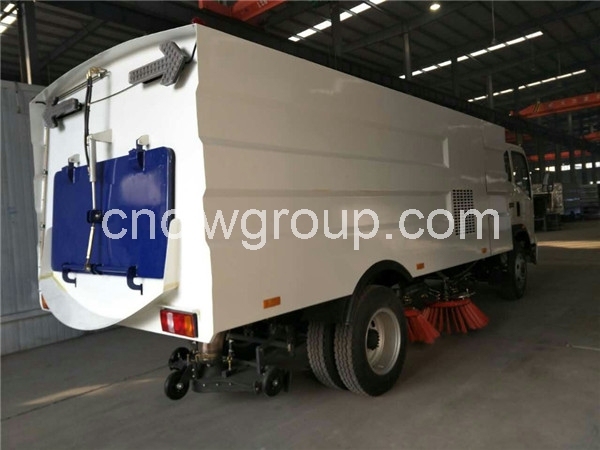

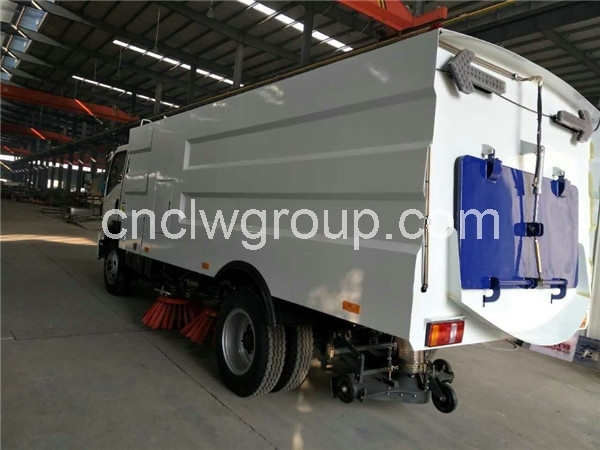

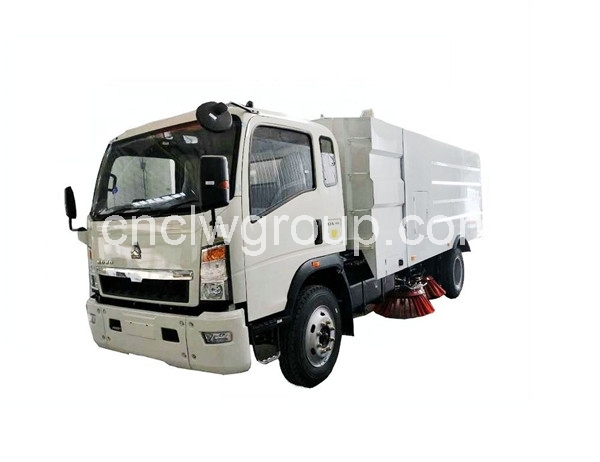

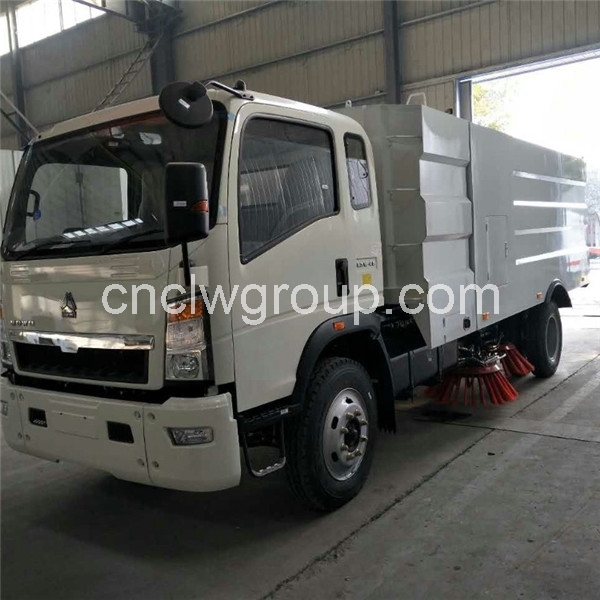

【Details of Road Sweeper Truck


【Similar Products of Road Sweeper Truck


       (Dongfeng 4x2 Road Sweeper Truck)                             (SHACMAN Road Sweeper Truck)


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
